DESCRIPTION
Bare Compressor For Ingersoll Rand Type 30 - Model 15T2
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Bare Compressor For Ingersoll Rand Type 30 - Model 15T2 from India.

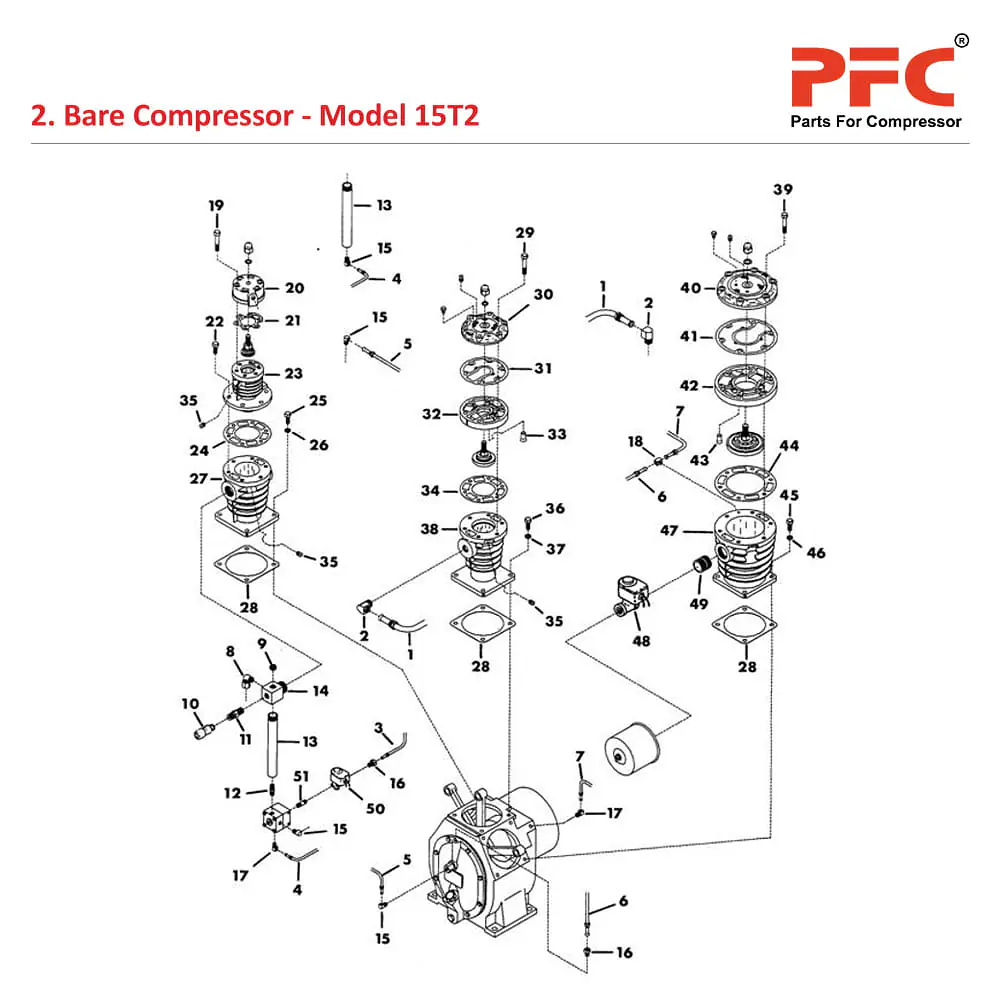

Bare Compressor
| Sr.No | Ref. Part Number | Description | Qty |
| 3-1 | 37131083 | Tube Assembly, 2nd Stage/Intercooler | 1 |
| 3-2 | 95031761 | Tube Elbow - 3/4 X 3/4 | 2 |
| 3-3 | 37131166 | Tube Assembly, Control Air | 1 |
| 3-4 | 37131182 | Tube Assembly, 2nd Stage Trap/UL105B | 1 |
| 3-5 | 37131075 | Tube Assly,2nd Stage Intercooler/Pilot Valve | 1 |
| 3-6 | 37131034 | Tube Assly, Top of Frame End Cover/1st Stage Cylinder | 1 |
| 3-7 | 37131026 | Tube Assembly Breather | 1 |
| 3-8 | 95040184 | Tube Elbow - 1/2 X 3/8" NPT | 1 |
| 3-9 | 95078648 | Plug, Pipe-Square Countersunk 1/2 | 1 |
| 3-10 | 32162943 | Valve, Check-H.P | 1 |
| 3-11 | 32166245 | Nipple Hex - 1/2 | 1 |
| 3-12 | 30214738 | Nipple Hex - 1/4" | 1 |
| 3-13 | 32003634 | Leg, Condensate Drain | 2 |
| 3-14 | 30283790 | Connection, Drain Leg | 1 |
| 3-15 | 95110441 | Elbow, Tube - 5/16 X 1/4 | 4 |
| 3-16 | 95082491 | Connector, Male 5/16 X 1/4" | 2 |
| 3-17 | 95031860 | Elbow, Tube - 5/16 X 1/8 | 2 |
| 3-18 | 95007522 | Tee, Male Branch - 5/16 X 1/8 | 1 |
| 3-19 | 95104212 | Capscrew - Hex 1/2 - 1/3 X 2-3/4 | 6 |
| 3-20 | 37130655 | Airhead - H.P. | 1 |
| 3-21 | 30294284 | Gasket, Airhead | 1 |
| 3-22 | 95053567 | Capscrew - Hex 1/2 - 13 X 1-1/4 | 6 |
| 3-23 | 37128685 | Cylinder, Air - 1.625 Inch | 1 |
| 3-24 | 30294508 | Gasket, Airhead | 1 |
| 3-25 | 95053567 | Capscrew, - Hex 1/2 -13 X 1-1/4 | 4 |
| 3-26 | 95674701 | Gasket, Copper Washer | 4 |
| 3-27 | 37128501 | Cylinder, Air - Cross Head | 1 |
| 3-28 | 30294235 | Gasket, Flange | 3 |
| 3-29 | 95053054 | Capscrew-Hex 1/2 X 3" H.T. | 6 |
| 3-30 | 37130341 | Airhead - Top | 1 |
| 3-31 | 37007754 | Gasket, Airhead -Top/Bottom | 1 |
| 3-32 | 37130366 | Airhead, Bottom | 1 |
| 3-33 | 37114030 | Dowel | 1 |
| 3-34 | 30294508 | Gasket, Airhead | 1 |
| 3-35 | 95033593 | Plug, Pipe-Solid Square Head -1/4 | 3 |
| 3-36 | 95053567 | Capscrew - Hex 1/2 -13 X 1-1/4 | 4 |
| 3-37 | 95674701 | Gasket Copper Washer | 4 |
| 3-38 | 37128717 | Cylinder, Air-3 Inch | 1 |
| 3-39 | 95053054 | Capscrew-Hex 1/2 X 3" H.T. | 6 |
| 3-40 | 37130531 | Airhead, Top | 1 |
| 3-41 | 37047156 | Gasket, Airhead -Top/Bottom | 1 |
| 3-42 | 37130556 | Airhead, Bottom | 1 |
| 3-43 | 37114030 | Dowel | 1 |
| 3-44 | 30294326 | Gasket, Airhead | 1 |
| 3-45 | 95053567 | Capscrew-Hex 1/2 -13 X 1-1/4 | 4 |
| 3-46 | 95674701 | Gasket, Copper Washer | 4 |
| 3-47 | 37128832 | Cylinder, Air - 5.5 Inch | 1 |
| 3-48 | 97335848 | Valve, Solenoid-2 Way | 1 |
| 3-49 | 21999453 | Nipple, Close | 1 |
| 3-50 | 21981311 | Valve, Solenoid-2 Way | 1 |
| 3-51 | 15830276 | Nipple, Short | 1 |
