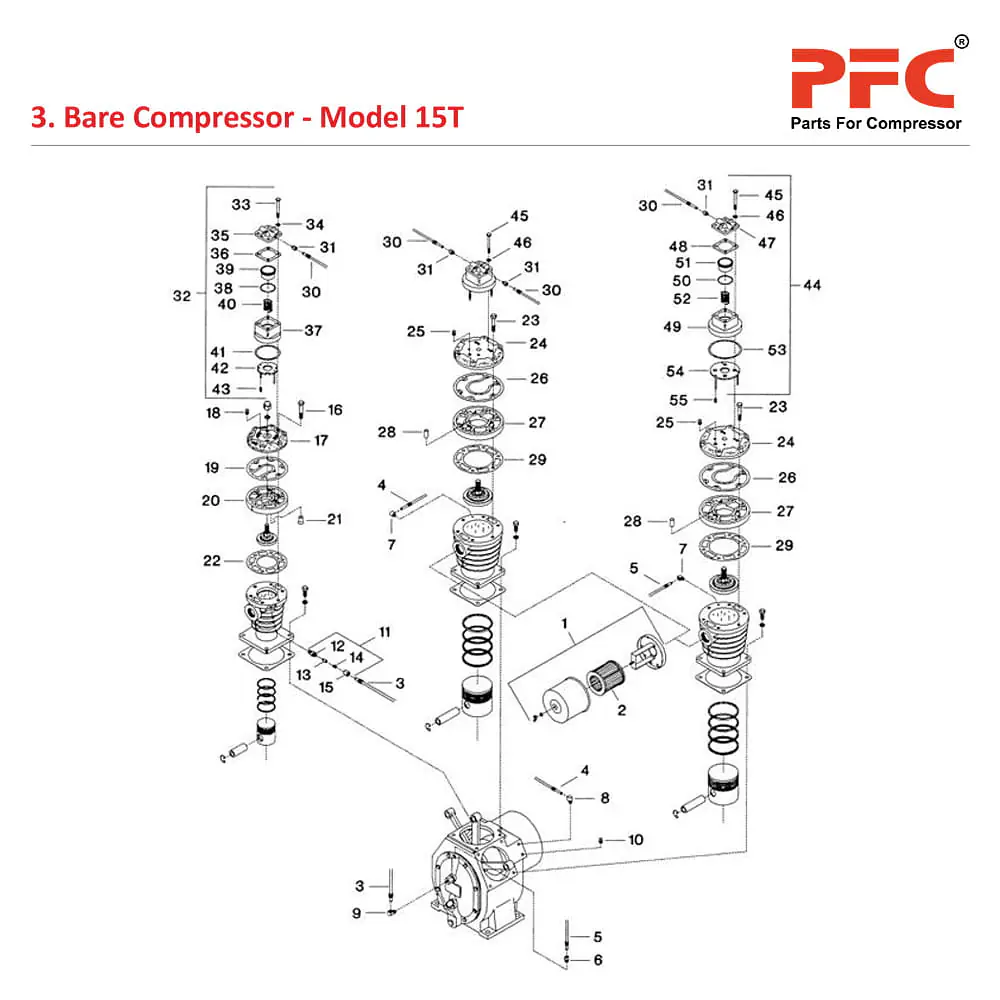

Cylinder and Piston Assembly
| Sr.No | Ref. Part Number | Description | Qty |
| 3-1 | 32109779 | Filter complete - inlet | 2 |
| 3-2 | 32012957 | – Element, filter - 10 micron | 1 |
| 3-3 | 37003845 | Tube Assy, cylinder relief/pilot valve 3/8 dia | 1 |
| 3-4 | 37003829 | Tube Assy, breather - 1/16 dia | 1 |
| 3-5 | 37003837 | Tube Assly,frame end cover/L.P.cyl - 5/16 dia | 1 |
| 3-6 | 32157554 | Connector, Male 5/16 X 1/4 | 1 |
| 3-7 | 95031860 | Elbow tube- 5/16 X 1/8 | 2 |
| 3-8 | 95110441 | Elbow tube- 5/16 X 1/4 | 1 |
| 3-9 | 95040143 | Elbow tube- 3/8 X 1/4 | 1 |
| 3-10 | 95252409 | Plug, Pipe - Hex 1/4 | 1 |
| 3-11 | 30291801 | Assy, cylinder relief valve | 1 |
| 3-12 | 35154111 | – Body, cylinder relief valve | 1 |
| 3-13 | 35154129 | – Valve , cylinder relief valve | 1 |
| 3-14 | 30672638 | – Spring , cylinder relief valve | 1 |
| 3-15 | 30279293 | – Cap, cylinder relief valve | 1 |
| 3-16 | 95053054 | Capscrew - Hex 1/2 - 13 X 3 | 6 |
| 3-17 | 37130382 | Airhead, top - high pressure | 1 |
| 3-18 | 32179038 | – Piug, pipe - Hex head 1/4 | 2 |
| 3-19 | 37007754 | Gasket, airhead - top/bottom - high pressure | 1 |
| 3-20 | 37130366 | Airhead bottom half - high pressure | 1 |
| 3-21 | 37114030 | Dowel | 1 |
| 3-22 | 30294508 | Gasket, airhead - high perssure | 1 |
| 3-23 | 95053054 | Capscrew - Hex 1/2 - 13 X 3 | 6 |
| 3-24 | 37130515 | Airhead, top - low pressure | 2 |
| 3-25 | 32179038 | – Piug, pipe - Hex head 1/4 | 6 |
| 3-26 | 37007747 | Gasket, airhead - top/bottom - low perssure | 2 |
| 3-27 | 37130499 | Airhead, bottom half - low pressure | 2 |
| 3-28 | 37114030 | Dowel | 2 |
| 3-29 | 30294193 | Gasket, airhead - low perssure | 2 |
| Parts Listed Below Used With Optional Constant Speed Control | |||
| 3-30 | 37003852 | Assy,tube-LP/LP/HP constant speed-5/16 dia | 2 |
| 3-31 | 95082483 | Connector tube - 5/16 X 1/8 | 4 |
| 3-32 | 30292015 | Unloader - complete - high pressure | 1 |
| 3-33 | 95102042 | – Capscrew - Hex 3/8 - 16 X 3-1/2 | 4 |
| 3-34 | 30345227 | – Washer, flat - 3/8 | 4 |
| 3-35 | 37129905 | – Cover, unloader | 1 |
| 3-36 | 30294656 | – Gasket, unloader cover | 1 |
| 3-37 | 37129889 | – Body, unloader | 1 |
| 3-38 | 32136715 | – O - ring | 1 |
| 3-39 | 32139883 | – Piston, unloader | 1 |
| 3-40 | 30416853 | – Spring, unloader piston | 1 |
| 3-41 | 30294680 | – Gasket, Unloader body | 1 |
| 3-42 | 32016578 | – Assy, unloader plate | 1 |
| 3-43 | 32012395 | – Spring, unloader pin | 2 |
| 3-44 | 30292007 | Unloader - complete - low pressure | 2 |
| 3-45 | 95102042 | – Capscrew-Hex 3/8 - 16 X 3-1/2 | 4 |
| 3-46 | 30345227 | – Washer, flat - 3/8 | 4 |
| 3-47 | 37129905 | – Cover, unloader | 1 |
| 3-48 | 30294656 | – Gasket, unloader cover | 1 |
| 3-49 | 37129947 | – Body, unloader | 1 |
| 3-50 | 32136715 | – O - ring | 1 |
| 3-51 | 32139883 | – Piston, unloader | 1 |
| 3-52 | 30416853 | – Spring, unloader piston | 1 |
| 3-53 | 30294698 | – Gasket unloader body | 1 |
| 3-54 | 32016537 | – Assy, unloader plate | 1 |
| 3-55 | 32012395 | – Spring, unloader pin | 3 |
