Overhaul Kit 32319451 IR 2340 Replacement

Overhaul Kit 32319451 IR 2340 Replacement

Overhaul Kit for Ingersoll Rand Type 30 Air Compressor Model 2340 replacement from India.

Product

Overhaul Kit 32319451 IR 2340 Replacement

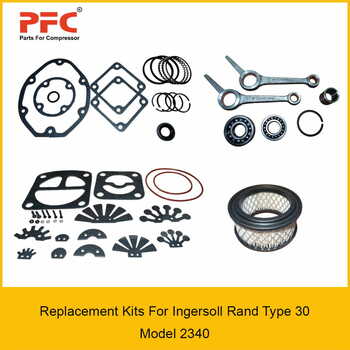

Contain of Kit

No.	Description	Part No.	QTY
A	Ring/Gasket Kit	32304602	--
	Frame End Cover Gasket	32293680	1
	Oil Fill Plug O-Ring	95022158	1
	Oil Seal	32204521	1
	Shaft End Cover Gasket	32293672	1
	Ring Set - 3	32194276	1
	Ring Set - 1 3/4	37138237	1
	Cyl/Frame Gasket	32293623	2
B	Valve/Gasket Kit	32304610	--
	Airhead Gasket - HP	32247926	1
	Airhead Gasket - LP	32247934	1
	VP-HP Cyl. O-Ring	32246878	1
	VP-LP Cyl. O-Ring	32246910	1
	HP Inlet Finger Valve	32236671	1
	Retainer, Finger Valve	32297343	1
	Hex Head Cap Screw	32247512	2
	Nut M4 Hex	32248171	2
	HP Discharge Valve Retainer	97511000	1
	HP Discharge Finger Valve	32241010	1
	HP Discharge Damper Valve	32294472	1
	LP Inlet Finger Valve	32241002	1
	Hex Head Cap Screw	32297327	4
	Hex Nut	97511059	4
	LP Discharge Finger Valve	32241036	1
	LP Discharge Finger Retainer	97511091	2
C	Gasket Set	32307738	--
	Frame End Cover Gasket	32293680	1
	Oil Fill Plug O-Ring	95022158	1
	Shaft End Cover Gasket	32293672	1
	Copper Gasket	95674651	6
	Copper Gasket	95674677	8
	Cyl/Frame Gasket	32293623	2
	VP/HP Cyl O-Ring	32246878	1
	HP Airhead Gasket	32247926	1
	VP/LP Cyl O-Ring	32246910	1
	LP Airhead Gasket	32247934	1
D	Bearing/Conn Rod Kit	32127359	--
	Ball Bearing	95930400	1
	Bearing W/Snap Ring	95951216	1
	Crankpin Bushing	30289813	1
	Connecting Rod	32004145	2
E	Air Filter Element	32170979	1
	Total		62
