Overhaul Kit 32319493 IR 3000 Replacement

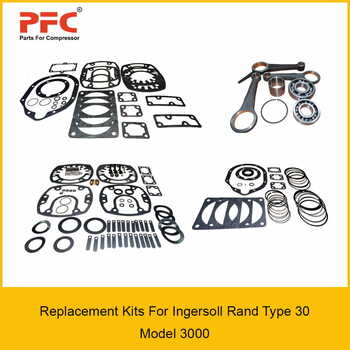

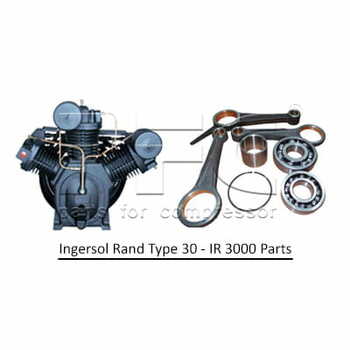

Overhaul Kit for Ingersoll Rand Type 30 Air Compressor Model 3000 replacement from India.
Product
Overhaul Kit 32319493 IR 3000 Replacement
Contain of Kit
| No. | Description | Part No. | QTY | |
| A | Bearing/Conn Rod Kit | 32310062 | -- | |
| Crankpin Bushing | 32295875 | 1 | ||
| L/P Connecting Rod | 32003659 | 2 | ||
| H/P Connecting Rod | 32262438 | 1 | ||
| Ball Bearing | 32295701 | 1 | ||
| Bearing W/Snap Ring | 95951273 | 1 | ||
| B | Valve/Gasket Kit | 32229379 | -- | |
| Finger Valve | 30220115 | 23 | ||
| Discharge Valve Plate | 30181499 | 2 | ||
| Discharge Valve Plate | 30215917 | 1 | ||
| Discharge Valve Spring | 30221394 | 2 | ||
| Discharge Valve Spring | 30221501 | 4 | ||
| Valve Bolt | 32223927 | 3 | ||
| Valve Retainer | 32228306 | 5 | ||
| L/P Head Gasket (Disch.) | 32153801 | 2 | ||
| L/P Head Gasket (Inlet) | 32153827 | 1 | ||
| L/P Airhead Gasket | 32267502 | 2 | ||
| L/P Valve Plate Gasket | 32267510 | 2 | ||
| Unloader Piston Seal | 32254740 | 2 | ||
| Unloader Piston O Ring | 32188385 | 2 | ||
| O Ring | 95026183 | 2 | ||
| O Ring | 95935862 | 2 | ||
| Elbow | 95040143 | 2 | ||
| Hex Nut | 95416335 | 1 | ||
| Lock Washer | 95648150 | 1 | ||
| Whiz-Lock Nut | 97166946 | 3 | ||
| Fillister Head Screw | 32035511 | 22 | ||
| Washer | 32217382 | 23 | ||
| Fillister Head Screw | 32224008 | 1 | ||
| Lock Nut | 32229684 | 2 | ||
| H/P Upgrade Kit (C1) | 32254708 | -- | ||
| L/P Head Gasket (Inlet) | 32153827 | 1 | ||
| H/P Airhead Gasket | 32252801 | 1 | ||
| H/P Spacer Plate Gasket | 32252819 | 2 | ||
| H/P Valve Plate Gasket | 32252827 | 1 | ||
| Flat Washer | 32279408 | 6 | ||
| Hex Cap Washer | 95104196 | 6 | ||
| C | Ring/Gasket Set | 32194003 | -- | |
| H/P Ring Set | 32194151 | 1 | ||
| L/P Ring Set | 32194144 | 2 | ||
| Oil Seal | 32204596 | 2 | ||
| Cylinder Flange Gasket | 32221384 | 3 | ||
| Frame End Cover Gasket | 30439285 | 1 | ||
| Shaft End Cover Gasket | 30294961 | 1 | ||
| L/P Head Gasket (Disch.) | 32153801 | 2 | ||
| H/P Head Gasket (Inlet) | 32153827 | 1 | ||
| O Ring | 95022695 | 1 | ||
| Oil Filler Plug ORing | 95022158 | 1 | ||
| Copper Gasket | 95674750 | 1 | ||
| D | Gasket Set | 32229387 | -- | |
| O Ring | 95022158 | 1 | ||
| O Ring | 95026183 | 2 | ||
| O Ring | 95022695 | 1 | ||
| O Ring | 95935862 | 2 | ||
| Unloader Piston O Ring | 32188385 | 2 | ||
| L/P Airhead Gasket | 32267502 | 2 | ||
| L/P Valve Plate Gasket | 32267510 | 2 | ||
| Cylinder Flange Gasket | 32160558 | 2 | ||
| HP Cylinder Flange Gasket | 32160566 | 1 | ||
| Frame End Cover Gasket | 30439285 | 1 | ||
| Shaft End Cover Gasket | 30294961 | 1 | ||
| Cylinder Gasket | 32221384 | 3 | ||
| L/P Head Gasket (Disc.) | 32153801 | 2 | ||
| L/P Head Gasket (Inlet) | 32153827 | 1 | ||
| H/P Upgrade Kit (E1) | 32257408 | -- | ||
| L/P Head Gasket | 32153827 | 1 | ||
| H/P Airhead Gasket | 32252801 | 1 | ||
| H/P Spacer Plate Gasket | 32252819 | 2 | ||
| H/P Valve Plate Gasket | 32252827 | 1 | ||
| Flat Washer | 32279408 | 6 | ||
| Hex Cap Screw | 95104196 | 6 | ||
| E | Air Filter Element | 32012957 | 1 | |
| Total | 190 |
Details
- type: product
- SKU: 32319493
