Valve Cylinder IR 71T2 Air Compressor Parts

Description

Valve Cylinder Assembly For Ingersoll Rand Type 30 Model 71T2

PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Valve Cylinder Assembly For Ingersoll Rand Type 30 Model 71T2 from India.

Product

Page 1

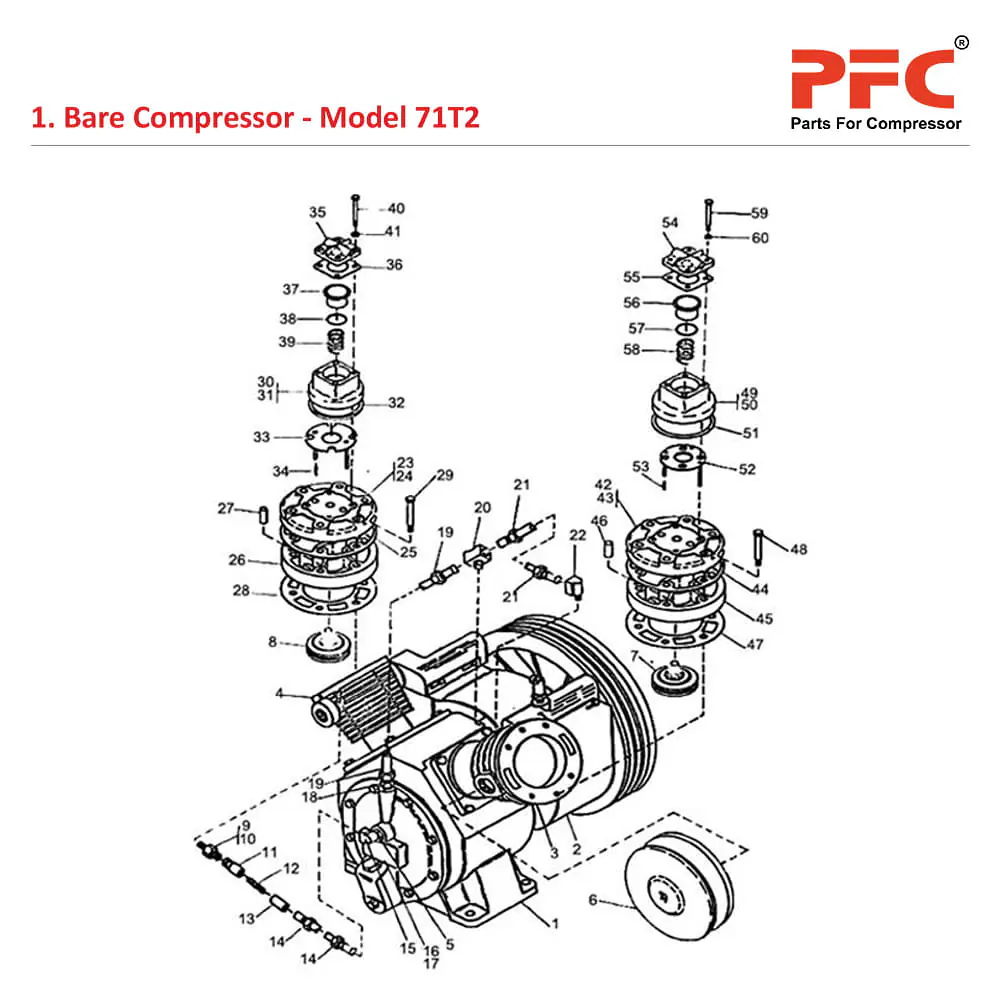

1.1 Valve Cylinder Assembly

Sr.No	Ref. Part Number	Alternate Part Number	Description
1-9	30291801	W75290T30	Valve cylinder relief complete
1-10	30209258	W21461	* * Body relief valve
1-11	30283519	W21462	* * Bare relief valve
1-12	30279293	W21848	* * Cap relief valve
1-13	32018731	X1091PP397	* * Spring relief valve
1-14	37131471	W75265T3	* Tube assembly with nuts
1-15	95040135	75A10B11	* Elbow Tube
1-16	95202800	7A16X184	* Nameplate
1-17	30841456	W34427	* Stud Drive
1-18	95082491	71A10B9	* Connector Tube
1-19	37131463	W75265T2	* Tube assembly with nuts
1-20	95007522	79A10B3	* Tee Tube
1-21	37131455	W75265T1	* Tube assembly with nuts
1-22	95031852	75A10B8	* Elbow Tube
1-23	37101300	W75301T32	* Head Air complete for automatic start
			and stop operation see figure C for
			valve assembly
1-24	37129442	H36216	* * Head air top half
1-23	37101318	W75301T33	* Head air complete for (optional) constant
			speed or dual control operation
1-24	37129467	H36216P1	* * Head air bottom half
1-25	37007754	W99832	* * * Gasket between halves
1-26	37129541	W99843	* * Head air bottom half
1-27	37114030	W99755	* * * Dowel
1-28	30294508	W21483	* * * Gasket air head to cylinder
1-29	95043790	35A2C227	* Screw cap 1/2 X 3
1-30	30293015	W75297T20	* Unloader contant speed complete
(optional)
1-31	30209167	W75297T20B	* * Body unloader complete
1-32	30294680	W21486	* * * Gasket body
1-33	32016578	R71597	* * Plate unloader
1-34	32012395	W136434	* * Spring
1-35	30211460	W75297T20C	* * Cover unloader complete
1-36	30294656	W21487	* * * Gasket cover
1-37	30284749	W21467	* * Piston unloader complete
1-38	95022000	20A11EM141	* * * "O" ring
1-39	32018723	X1091PP568	* * Spring
1-40	95102042	35A2C123	* * Screw cap 3/8 - 16 X 3 1/2
1-41	30345227	X1016T34	* * Washer plain 3/8
			stop operation see figure D for valve assy
1-43	37130531	F25229	* * Head air top half
1-42	37101334	W75301T63	* Head aircomplete for (optional) constant
			speed or dual control operation
1-43	37130572	F25229P1	* * Head air top half
1-44	37047156	R53493	* * * Gasket between halves
1-45	37130549	W99844	* * Head air bottom half complete
1-46	37114030	W99755	* * * Dowel
1-47	30294326	W21948	* * * Gasket air head to cylinder
1-48	95043790	35A2C227	* Screw cap 1/2 X 3
1-49	30292007	W75297T40	* Unloader constant speed complete
(Optional)
1-50	31517709	W75297T40B	* * Body unloader complete
1-51	30294698	W21485	* * * Gasket body
1-52	32016537	R71568	* * Plate unloader complete
1-53	32012395	W136434	* * Spring
1-54	30211460	W75297T20C	* * Cover unloader complete
1-55	30294656	W21487	* * * Gasket cover
1-56	30284749	W21467	* * Piston Unloader complete
1-57	95022000	20A11EM141	* * * "O" Ring
1-58	32018723	X1091PP568	* * Spring
1-59	95102042	35A2C123	* * Screw cap 3/8 - 16 X 3 1/2
1-60	30345227	X1016T34	* * Washer plain 3/8
