Worm Gear Box Complete Replacement
Vikay is a global supplier of new aftermarket replacement parts - Worm Gear Box Complete for Atlas Copco Wagon Drill Bvb-25 from India.
Product
- Page 1

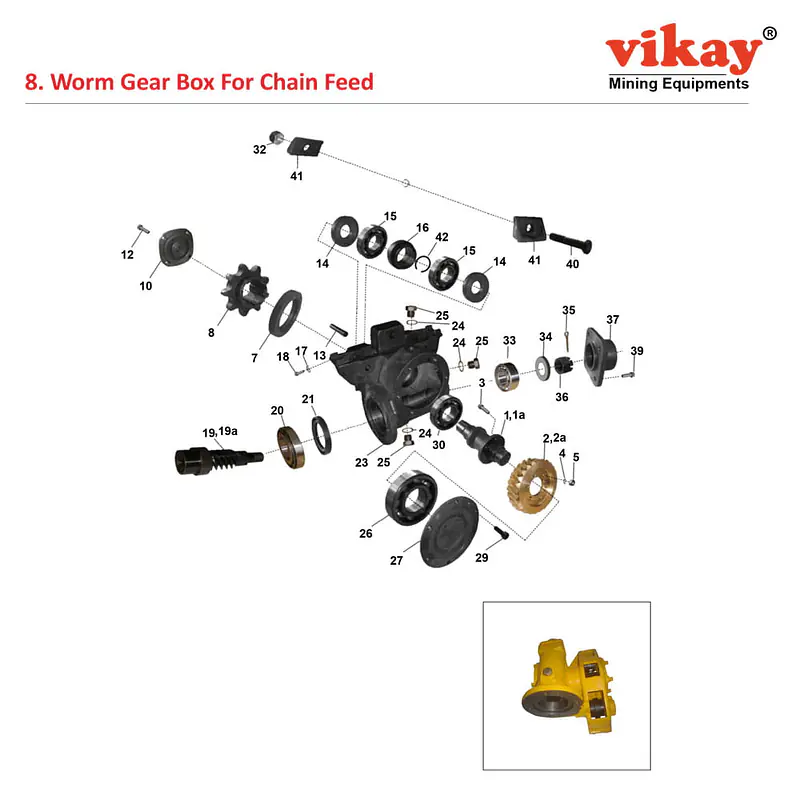

Worm Gear Box Complete
No. | Description | Modified | Ref. Part No. | ||
- | Worm Gear Box Complete - Single Start (1-42) | 3162166382 | |||
- | Worm Gear Housing Complete - Five Start (1-27) | 3162166380 | |||
1 & 2 | - Shaft Complete with Worm Gear - Single Start | 3162047580 | |||
1 | - Shaft only for single start | 3162047500 | |||
2 | -Worm Gear, Single Start (Bronze.2) | 3162047500 * | |||
1a & 2a | -Shaft Complete with Worm Gear - Five Start | 3162166780 | |||
1a | - Shaft only for Five start | 3162166700 | |||
2a | - Worm Gear, Five Start (Bronze Repear 2a) | 3162166700 * | |||
3 | - Bolt | 3162048100 | |||
4 | -Spring Washer | ||||
5 | - Nut (Modified) | * | M100085 | ||
7 | -Seal Ring | 0666439300 | |||
8 | - Sprocket | 9718351200 | |||
10 | - Cover | 3162047700 | |||
12 | - Screw | 0147132500 | |||
13 | - Shaft | 3162155100 | |||
14 | - Washer | 3162158100 | |||
15 | - Ball Bearing | 0502222900 | |||
16 | - Pulley Wheel | 9718351300 | |||
17- | Spring Washer | 0333213000 | |||
18 | - Stop Screw | 3162009700 | |||
19 | - Worm Shaft, Single Start | 9718350700 | |||
19A | - Worm Shaft, Five Start | 3162166400 | |||
20 | - Ball Bearing | 0502111000 | |||
21 | - Seal Ring | 0666443200 | |||
23 | - Gear Housing | 3162166300 | |||
24 | - Gasket | 0653111500 | |||
25 | - Plug | 0686370300 | |||
26 | - Ball Bearing | 0502210700 | |||
27 | - Cover | 3162048600 | |||
29 | -Screw | 0147132500 | |||
30 | – Ball Bearing | 0502110900 | |||
32 | -Nut | 0266111600 | |||
33 | - Ball Bearing | 0504210500 | |||
34 | -Washer | 0301220400 | |||
35 | - Split Pin | 0111144900 | |||
36 | - Nut | 3162048400 | |||
37 | - Cover | 3162048500 | |||
39 | -Screw | 0147132500 | |||
40 | - Bolt | 3162106800 | |||
41 | - Clamp | 3162119900 | |||
42 | - Circlip Int. |
