Drill Bits
DTH drill bits, also called button bits, are the tungsten-carbide studded cutting tools fitted to down-the-hole hammers. Vikay supplies bits from India in 76 mm to 203 mm diameter across BR, DHD, SD, M-series, QL, SVE and Panther shank types.
A DTH bit is specified by two things: the shank that matches your hammer, and the diameter of the hole you want. The shank is not interchangeable between hammer families, so it must be identified first.

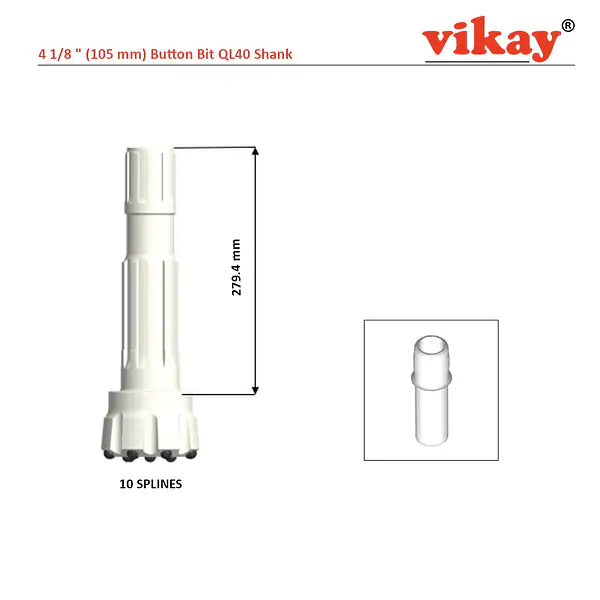

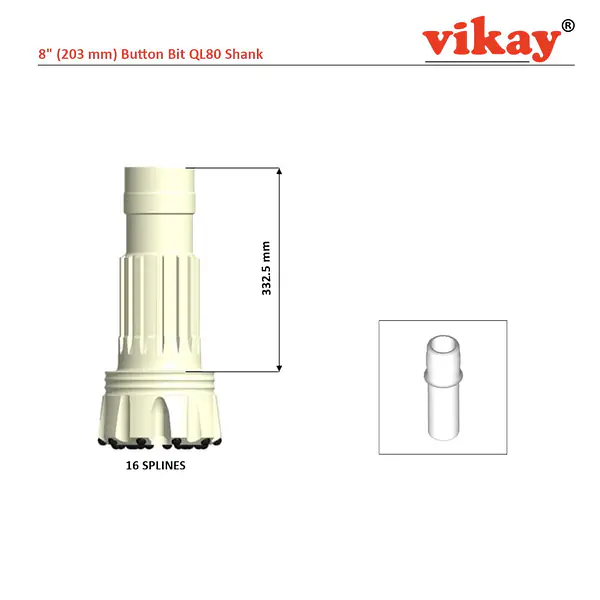

Shank types stocked include BR2 and BR3, DHD 3.5, DHD 340, DHD 360 and DHD 380, SD4, SD5, SD6 and SD8, M4 and M6, QL40, QL50, QL60 and QL80, SVE-MEGA 6, SVE 4 3/4 inch, SVE-RK1, SVE-Gladiator, DH17 and Panther 3 and Panther 4 inch.

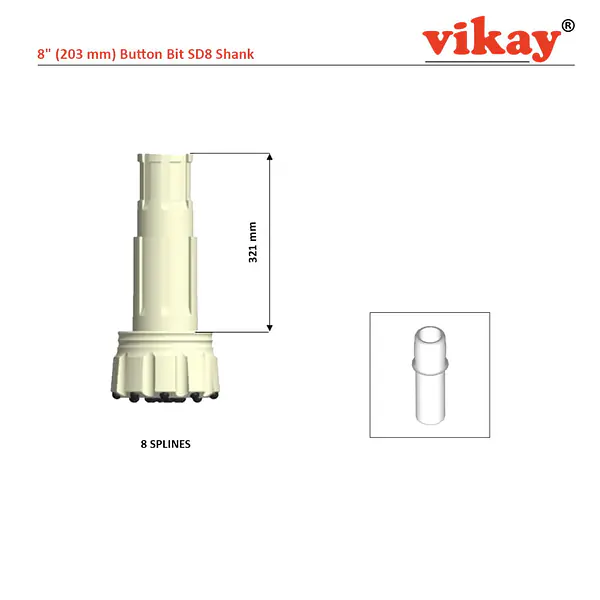

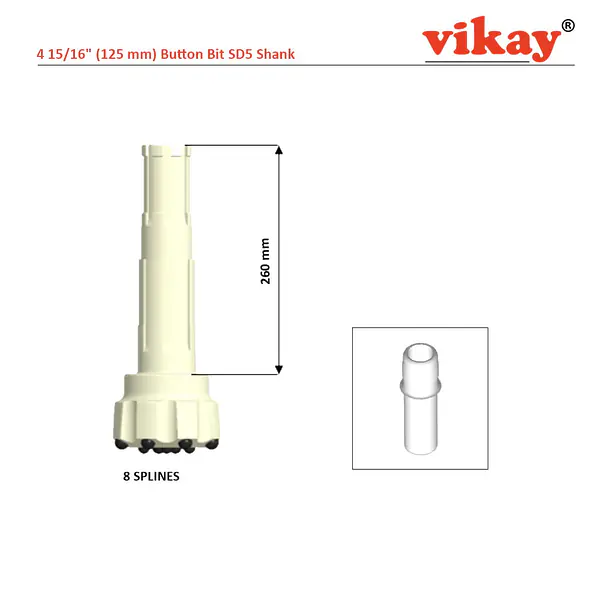

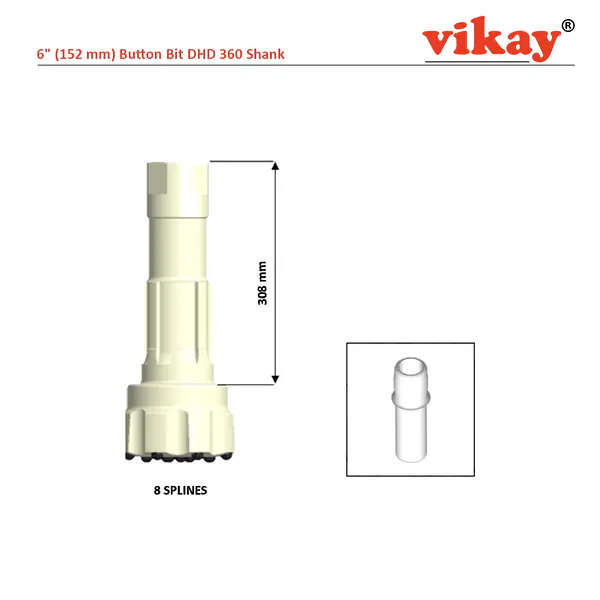

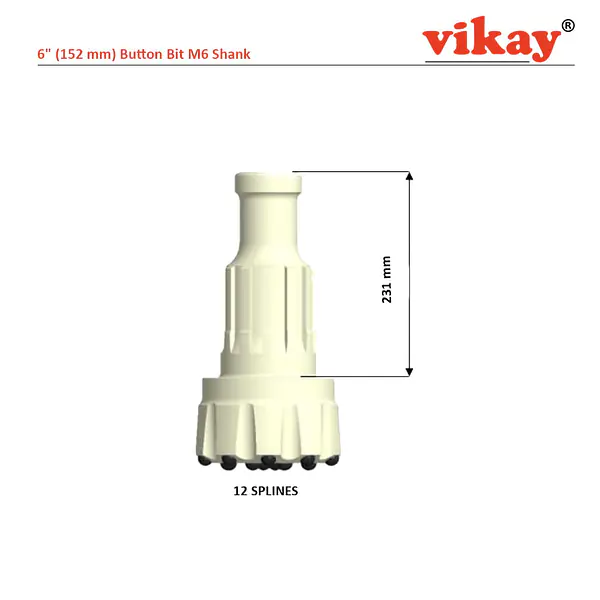

Common pairings include 76 mm x BR2, 90 mm x BR3, 90 mm x DHD 3.5, 105 mm x DHD 340, 152 mm x DHD 360, 203 mm x DHD 380, 105 mm x SD4, 125 mm x SD5, 152 mm x SD6, 203 mm x SD8, 105 mm x M4 and 152 mm x M6.
Face design, flat, concave or convex, is selected against rock hardness and hole straightness requirements.
FAQS
How do I select a DTH bit?
- Identify your hammer's shank type first, since shanks are not interchangeable between hammer families, then choose the diameter for the hole you need. Face design is then selected against rock hardness.
Which shank types are available?
- BR2, BR3, DHD 3.5, DHD 340, DHD 360, DHD 380, SD4 to SD8, M4, M6, QL40 to QL80, SVE-MEGA 6, SVE-RK1, SVE-Gladiator, DH17 and Panther 3 and 4 inch.
What diameters do you supply?
- 76 mm to 203 mm, covering the standard blast hole, quarry and water well sizes.
