4 1/8" Button Bit - 105 mm x QL40 Shank
Regular price
₹0.00
4 1/8" Button Bit - 105 mm x QL40 Shank
Regular price
₹0.00
DESCRIPTION

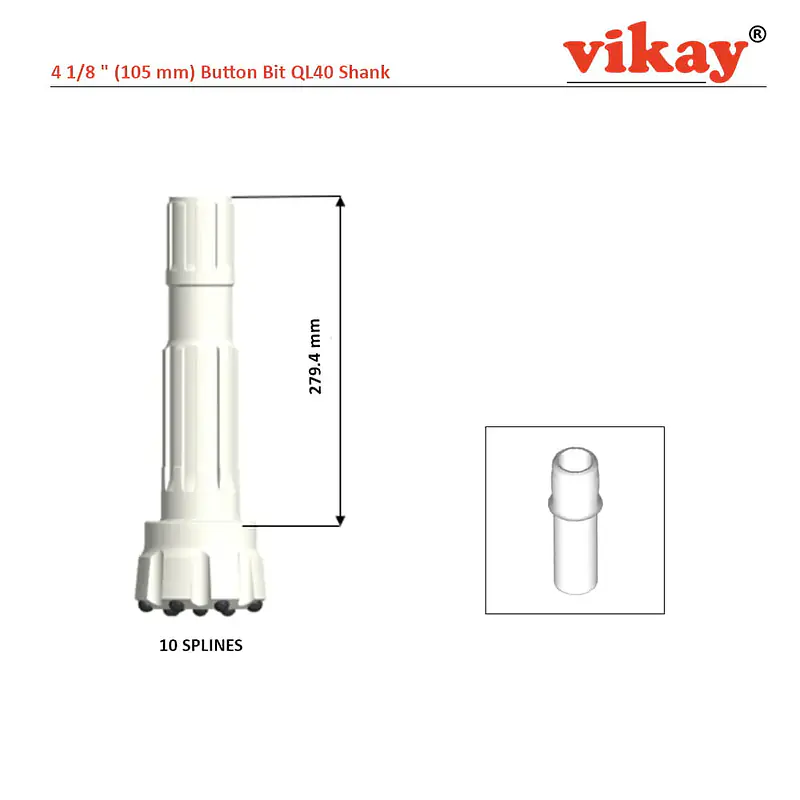

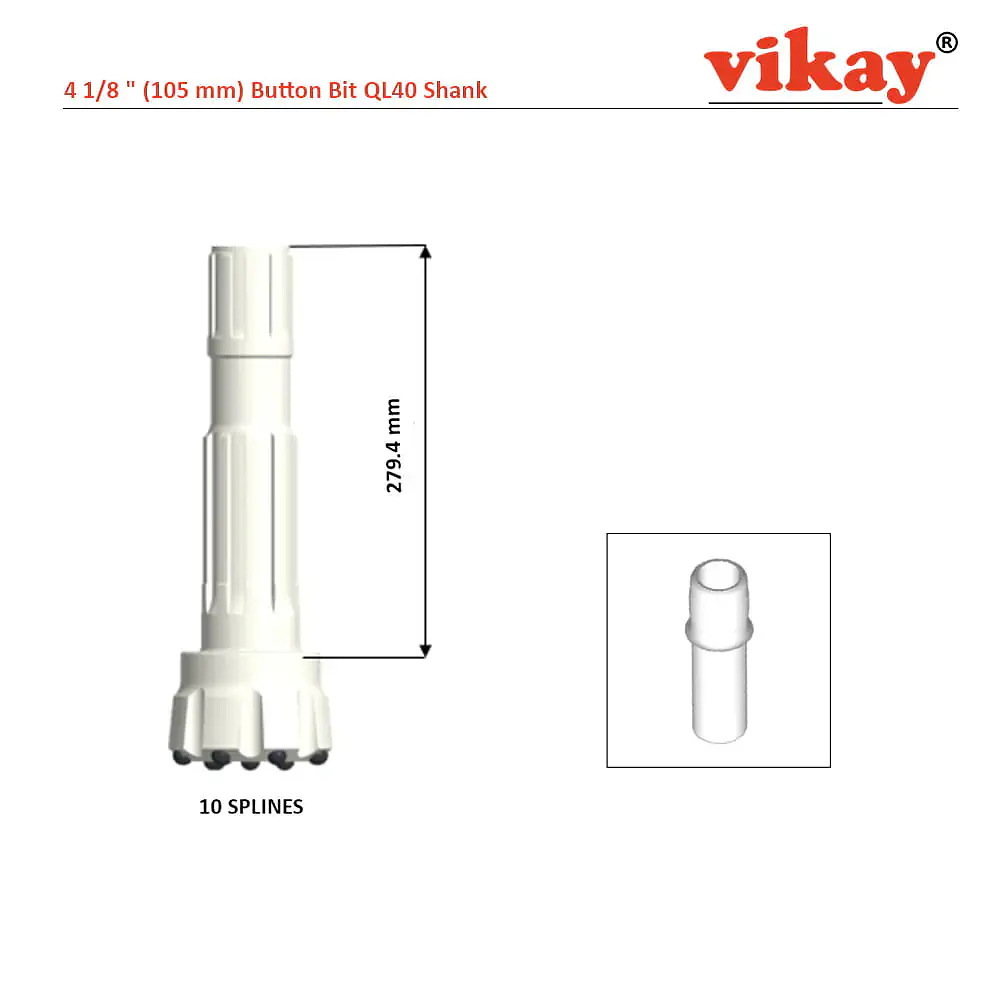

4 1/8 " (105 mm) Button Bit QL40 Shank
Vikay is a global supplier of new aftermarket replacement parts - 4 1/8 " (105 mm) Button Bit QL40 Shank from India.
Product
| Diameter | Gauge Buttons | Button diameter (mm) | Air holes | Weight | Product No. | |||
| Inch | mm | Gauge | Face | kg | lbs | |||
| Flat Face | ||||||||
| 4 1/8 | 105 | 8 | 14 | 13 | 2 | 8 | 17.6 | DB052210501S |
| 4 5/16 | 110 | 8 | 14 | 13 | 2 | 8.5 | 18.7 | DB052211001S |
| 4 1/2 | 115 | 8 | 14 | 13 | 2 | 9 | 19.8 | DB052211501S |
| 4 3/4 | 121 | 8 | 14 | 13 | 2 | 9.3 | 20.5 | DB052212101S |
| 5 | 127 | 8 | 14 | 13 | 2 | 9.5 | 20.9 | DB052212701S |
| 5 1/8 | 130 | 8 | 14 | 13 | 2 | 10 | 22 | DB052213001S |
| 5 1/2 | 140 | 8 | 14 | 13 | 2 | 14 | 30.8 | DB052214001S |
| Concave | ||||||||
| 4 1/8 | 105 | 8 | 14 | 13 | 2 | 8 | 17.6 | DB052210502S |
| 4 5/16 | 110 | 8 | 14 | 13 | 2 | 8.5 | 18.7 | DB052211002S |
| 4 1/2 | 115 | 8 | 14 | 13 | 2 | 9 | 19.8 | DB052211502S |
| 4 3/4 | 121 | 8 | 14 | 13 | 2 | 9.3 | 20.5 | DB052212102S |
| 5 | 127 | 8 | 14 | 13 | 2 | 9.5 | 20.9 | DB052212702S |
| 5 1/8 | 130 | 8 | 14 | 13 | 2 | 10 | 22 | DB052213002S |
| 5 1/2 | 140 | 8 | 14 | 13 | 2 | 14 | 30.8 | DB052214002S |
| Convex | ||||||||
| 4 1/8 | 105 | 8 | 14 | 13 | 2 | 8 | 17.6 | DB052210503S |
| 4 5/16 | 110 | 8 | 14 | 13 | 2 | 8.5 | 18.7 | DB052211003S |
| 4 1/2 | 115 | 8 | 14 | 13 | 2 | 9 | 19.8 | DB052211503S |
| 4 3/4 | 121 | 8 | 14 | 14 | 2 | 9.3 | 20.5 | DB052212103S |
| 5 | 127 | 8 | 14 | 13 | 2 | 9.5 | 20.9 | DB052212703S |
| 5 1/8 | 130 | 8 | 14 | 13 | 2 | 10 | 22 | DB052213003S |
| 5 1/2 | 140 | 8 | 14 | 14 | 2 | 14 | 30.8 | DB052214003S |
