Backfill Tamper
A backfill tamper is a hand-held pneumatic rammer used to compact backfill in trenches and around foundations, pipes and services. Vikay supplies tampers from India in the classes corresponding to Atlas Copco TAM 14 and TAM 19 and Chicago Pneumatic CP 0003 and CP 0004.
Compaction failure in a trench shows up later as settlement in the road above it, which is why backfill has to be compacted in layers rather than simply pushed back in. In a narrow trench or against a wall a plate compactor cannot reach the material that matters, and a hand-held tamper is the only practical tool.
Typical duties are trench backfill in lifts, compaction around pipes, ducts and manholes, working against foundation walls and abutments, and confined compaction near existing services where vibration must be controlled.

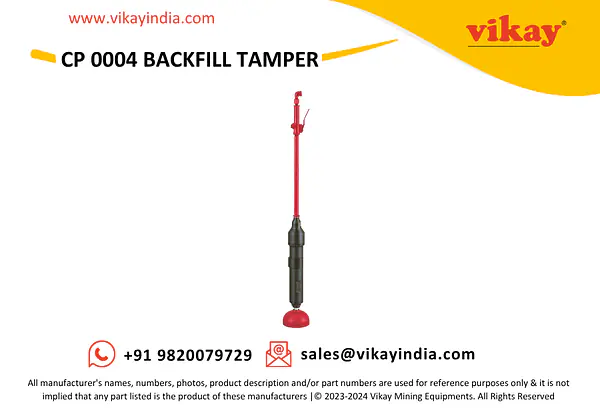

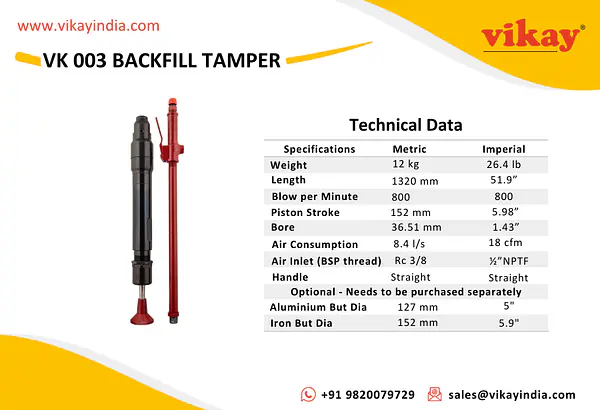

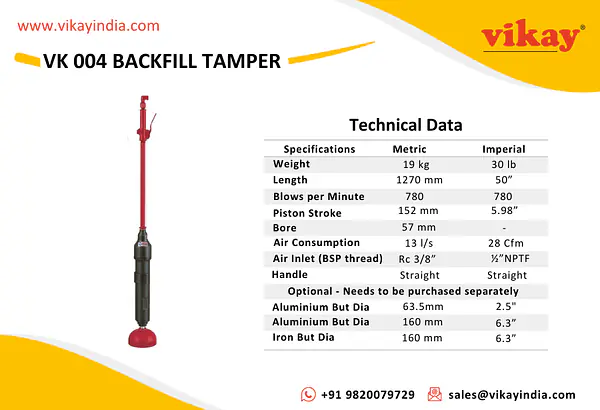

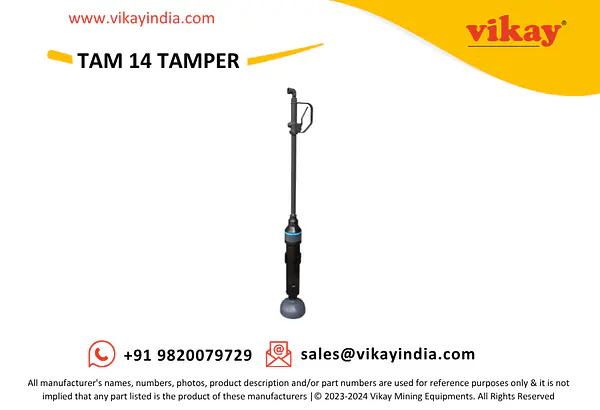

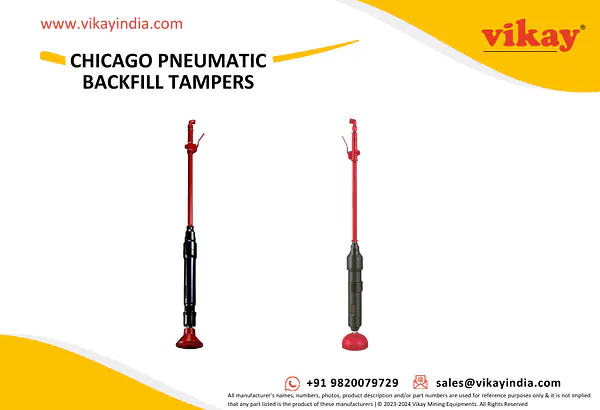

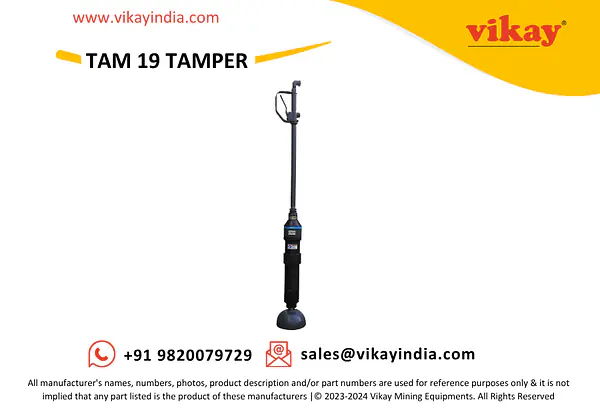

The range corresponds to the Atlas Copco TAM 14 and TAM 19 and the Chicago Pneumatic CP 0003 and CP 0004, with the Vikay VK 003 and VK 004 built to interchange with the CP classes.
FAQS
What is a backfill tamper used for?
- Compacting backfill in layers in trenches and against foundations, pipes, ducts, manholes and abutments, where a plate compactor cannot reach.
Why compact in layers?
- Because material compacted in a single deep lift retains voids that later consolidate, producing settlement in the surface above the trench. Layers allow the rammer's energy to reach the full depth.
Are spare parts available?
- Yes. Parts for the Chicago Pneumatic CP 003 and CP 004RV are listed under Chicago Pneumatic Backfill Tamper parts.
