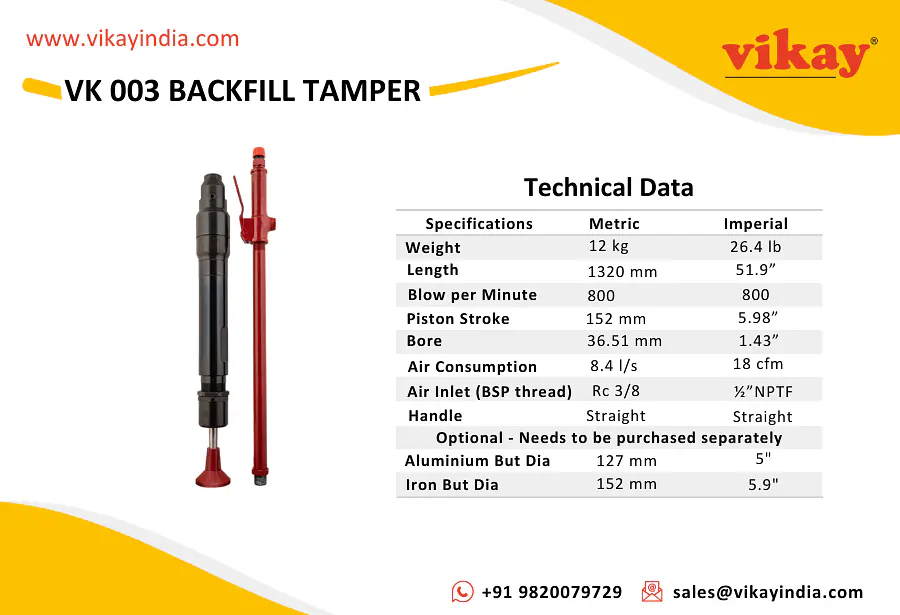

VK 003 Backfill Tamper

₹1.00

Pinch to
zoom

Quantity

DESCRIPTION

VK 003 Backfill Tamper

Vikay is a worldwide distributor of VK 003 Backfill Tamper - CP 003 - technically equivalent to CP 0003 Tamper suitable for compacting soil around foundations and other structures, as well as for compacting backfill in trenches from India.



VK 003 Backfill Tamper which is technically equivalent to CP 0003 Tamper is ideal for cleaning and roughing concrete and construction joints. It is made with high quality components to make it best rammer in its class. This 12 kg tamper provides efficient compacting in all types of moulds. Due to its easy handling, low maintenance and compact design this sand rammer appeal to all compacting & foundry works. The pogo stick or powder puff are other common names for the tampers.

Applications

  • Compact soil around foundations and other structures
  • Compacting backfill in trenches
  • Road and concreate compact

Features

  • Heat-treated cylinder and chrome plated piston
  • Butt held with clamp screw for quick, easy replacement
  • Unique Valve design allows dirt to pass without stopping the tool.

Technical Data

SpecificationsMetricImperial
Weight12 kg26.4 lb
Length1320 mm51.9”
Blows per minute800800
Piston stroke152 mm5.98”
Bore36.51 mm1.43”
Air consumption8.4 l/s18 Cfm
Air inlet (BSP thread)Rc 3/8½”NPTF
HandleStraightStraight



Optional -  Needs to be purchased separately

Aluminium But Dia127 mm5”
Iron But Dia152 mm 5.9”

# Technically equivalent to CP 0003 Backfill Tamper
