Ingersoll Rand Wagon Drill LM 100 Parts
Ingersoll Rand LM 100 parts are the replacement assemblies for the LM 100 wagon drill used in surface blast-hole drilling. Vikay supplies new aftermarket parts from India, including rotary head and feed assemblies, air motors, gearboxes, centralisers and main frame assemblies.
The LM 100 is an assembly-based rig, and it is normally repaired by exchanging complete units rather than stripping down in the field. This section is built around that: parts are supplied as the assemblies the rig is actually rebuilt from.

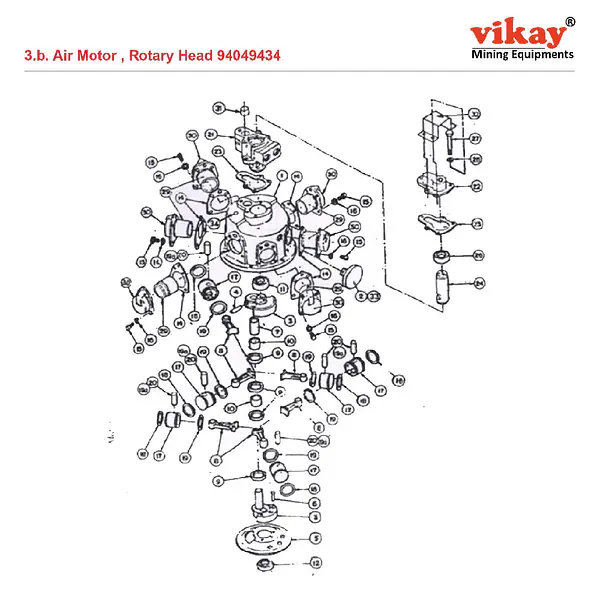

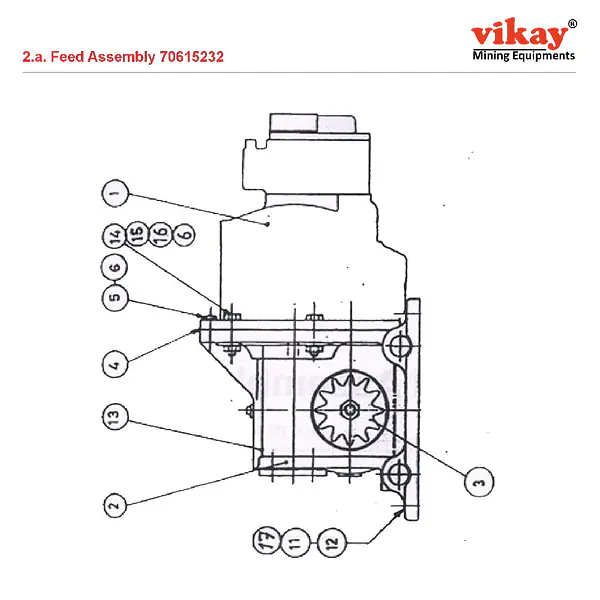

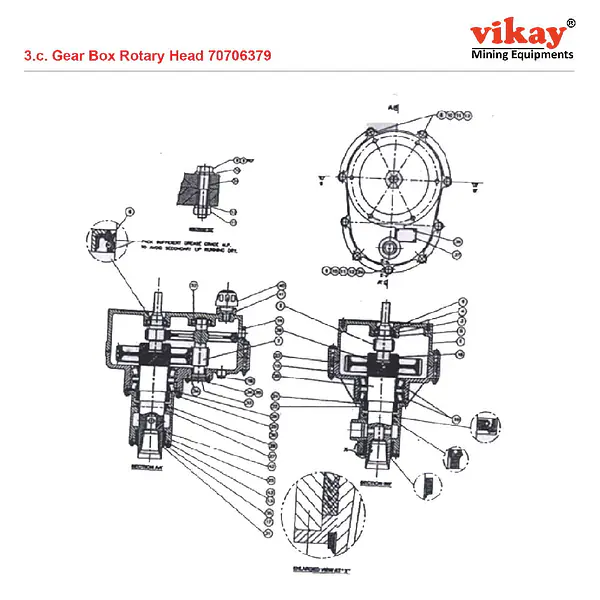

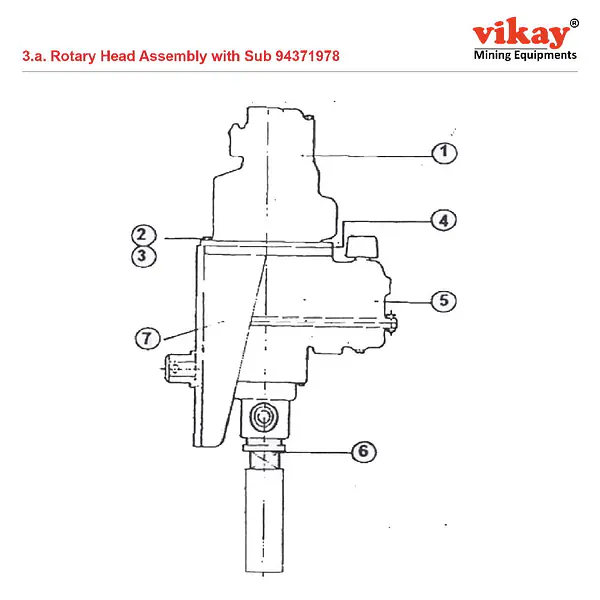

Coverage includes drill guide assembly DTH 70615216, centraliser DTH 70615224, centraliser drifter 94076890, feed assembly 70615232, air motor feed 94079670, gear box feed 94064995, rotary head assembly 94371978, gear box rotary head 70706379, air motor rotary head 94049434 and main frame assembly 94048550.
Both DTH and drifter centralisers are stocked, so the rig is covered in either drilling configuration. Order against the reference number in the rig's parts book.
These are new aftermarket parts; brand names and reference numbers identify fitment only.
FAQS
Which LM 100 assemblies are available?
- Rotary head and feed assemblies with their gearboxes and air motors, drill guide and centraliser assemblies for both DTH and drifter configurations, and the main frame assembly.
Is the rig covered in both DTH and top-hammer configuration?

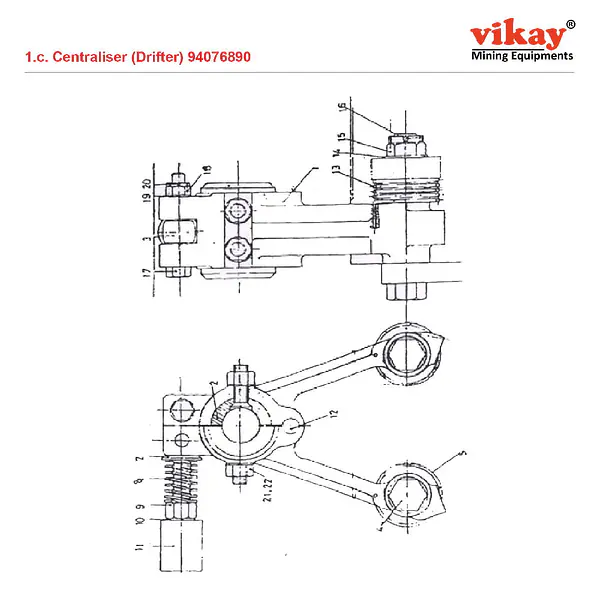

- Yes. Separate centralisers are stocked for the DTH configuration (70615224) and the drifter configuration (94076890).
Are parts supplied individually or as assemblies?
- Primarily as complete assemblies, which is how the LM 100 is normally rebuilt. Individual components within those assemblies are quoted on request.
