DESCRIPTION
Gear Box Rotary Head 70706379 Replacement
Vikay is a global supplier of new aftermarket replacement parts - Gear Box Rotary Head 70706379 for LM 100 Wagon Drill from India.

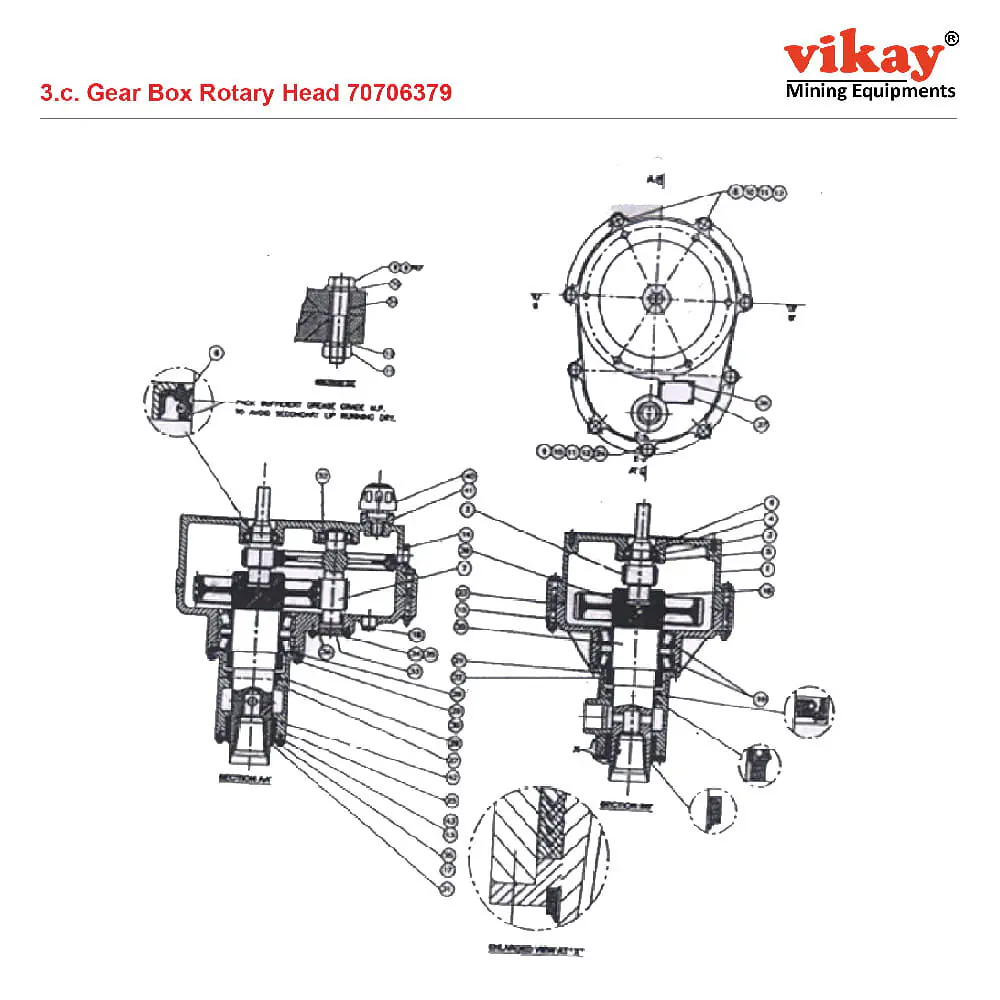

Gear Box Rotary Head 70706379
| No. | Description | Ref. Part No. | QTY |
| 1 | Casing, Input | 70115662 | 1 |
| 2 | Pinion, Input Shaft | 94156106 | 1 |
| 3 | Bearing, Ball | 94140993 | 1 |
| 4 | Clrclip | 94129483 | 2 |
| 5 | Circlip | 94127974 | 2 |
| 6 | Seal.Oil | 94153350 | 1 |
| 7 | Assembly. Idler Shaft And Gear | 70085014 | 1 |
| 8 | Bolt, M 10 X 120 Long | 94126018 | 2 |
| 9 | Bolt M 10 X 90 Long | 94193422 | 7 |
| 10 | Washer, 10 Mm | 94038650 | 9 |
| 11 | Nut M 10 | 94034154 | 9 |
| 12 | Washer. Spring B10 | 94034170 | 9 |
| 13 | Cover, Air Swivel | 70693098 | 1 |
| 14 | Plug Oil Level | 94141009 | 1 |
| 15 | Casing, Output | 70115670 | 1 |
| 16 | Bearing. Needle Roller | 94141017 | 2 |
| 17 | Screw Hex. Head M6 X 20 Long | 94038676 | 6 |
| 18 | Plug, Drain | 94044070 | 1 |
| 19 | Bearing, Taper Roller | 94141033 | 2 |
| 20 | Assembly, Shaft gear | 70085022 | 1 |
| 21 | Nut,Lock | 94141041 | 2 |
| 22 | Washer, Locking | 94141058 | 1 |
| 23 | Gasket | 94078490 | 1 |
| 24 | Dowel | 70025648 | 1 |
| 25 | Housing, Air Swivel | 70693080 | 1 |
| 26 | Seal. Oil | 94078599 | 1 |
| 27 | Seal, Gland | 94078573 | 1 |
| 28 | Gasket | 94137254 | 1 |
| 29 | Washer. Spring 8 Mm | 94036928 | 6 |
| 30 | Screw, M 8 X 20 | 94036811 | 6 |
| 31 | Seal, Wiper | 94078581 | 1 |
| 32 | Bearing, Ball | 94352291 | 1 |
| 33 | Plate Adapter | 70034095 | 1 |
| 34 | Screw ·M 6 X 16 Long | 94042785 | 3 |
| 35 | Washer Spring 6 Mm | 94037785 | 9 |
| 36 | 0-Ring | 70034103 | 1 |
| 37 | Name Plate Si.No. | 70085857 | 1 |
| 38 | Rivet | 94129202 | 4 |
| 39 | Spacer | 70189845 | 1 |
| 40 | Breather | 70530068 | 1 |
| 41 | Adapter • | 70033097 | 1 |
| 42 | V Seal | 70694450 | 1 |
| 43 | Shim | 70694443 | 1 |
| Kit,..Maintenance (Includes Items 3, 4, 5, 16, 19,23,"26,27, 28, 31,32 & 42 | 70706387 | ||
| Kit, Seal (Includes Items 6, 23, 26, 27, 28, 31 And 42) | 70706395 |
