Rock Drill
A rock drill is a hand-held pneumatic percussive machine that hammers and rotates a drill steel to bore blast holes in rock. Vikay supplies rock drills from India that interchange with Atlas Copco RH, BBC and BBD series and Chicago Pneumatic CP series machines.
Pneumatic rock drills combine percussion, rotation and flushing in one compact tool, which is why they remain the workhorse of underground development and small-scale quarrying. Air drives a piston that strikes the shank of the drill steel thousands of times a minute while a rifle bar indexes the bit between blows and water or air clears cuttings from the hole.

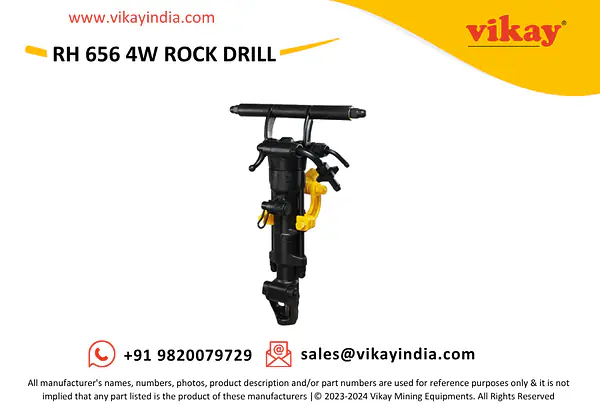

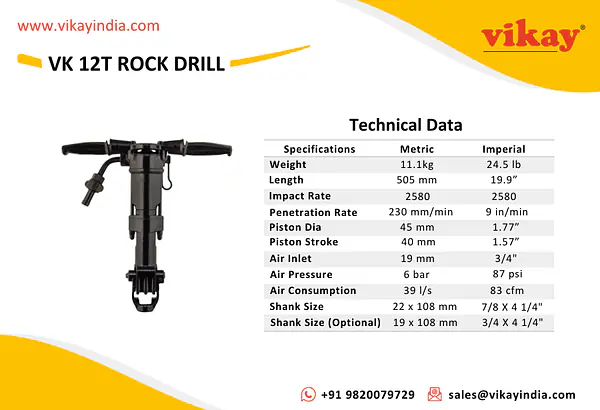

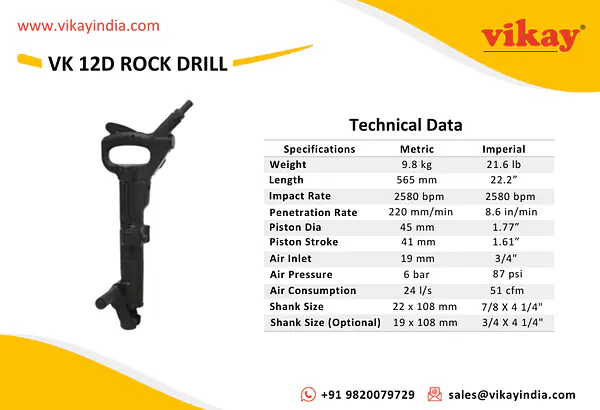

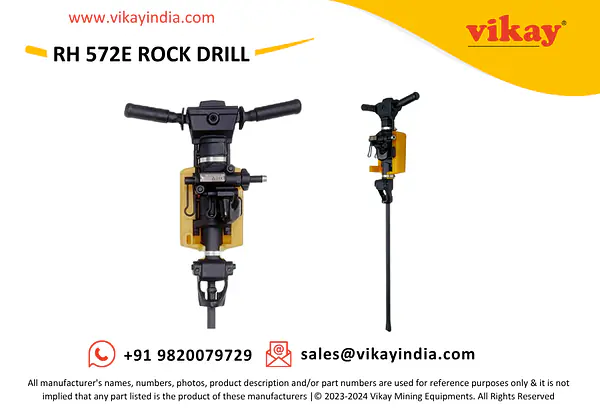

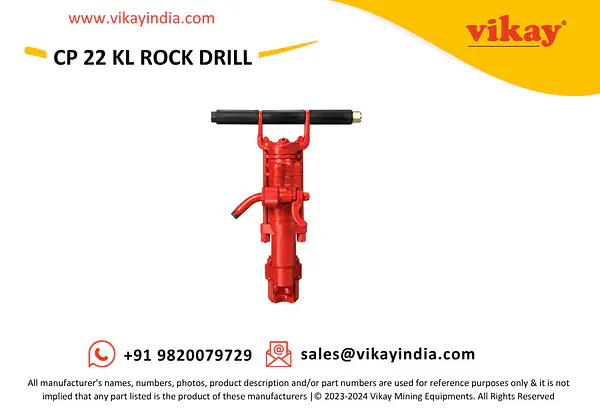

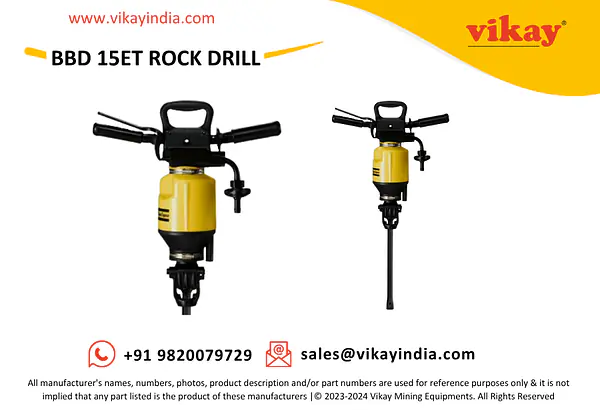

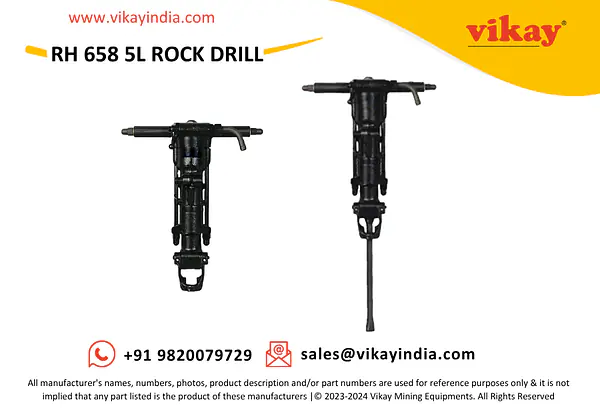

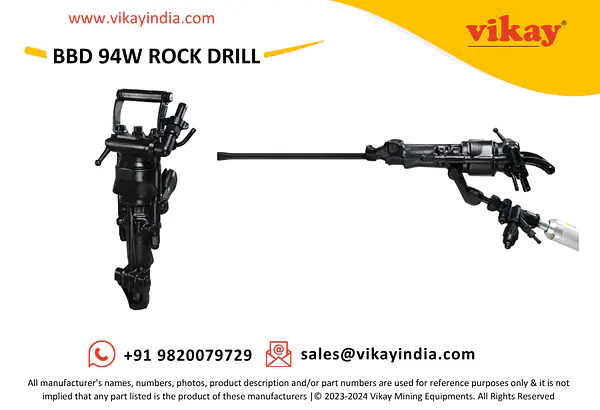

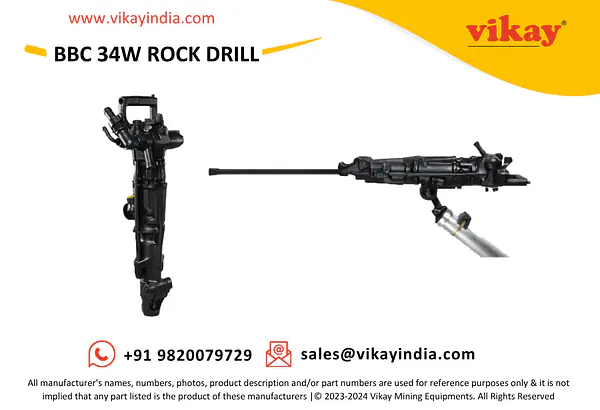

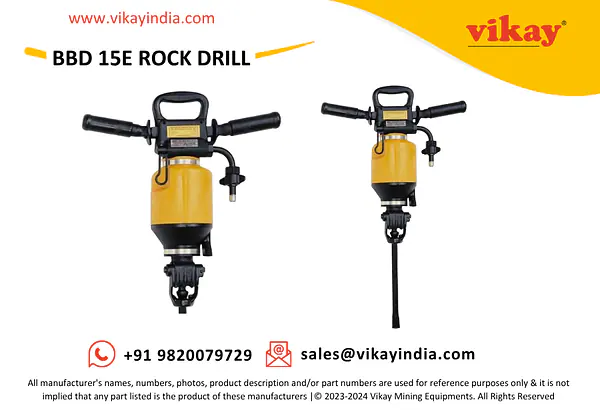

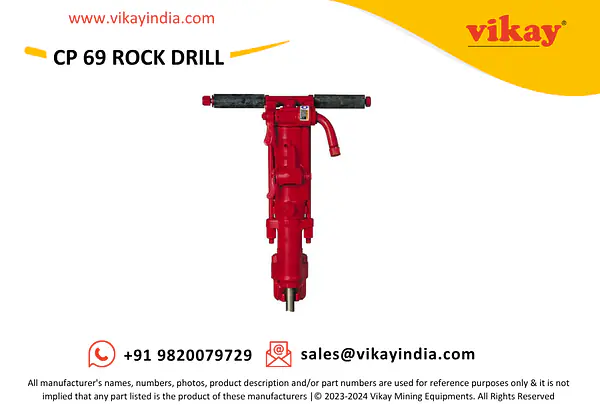

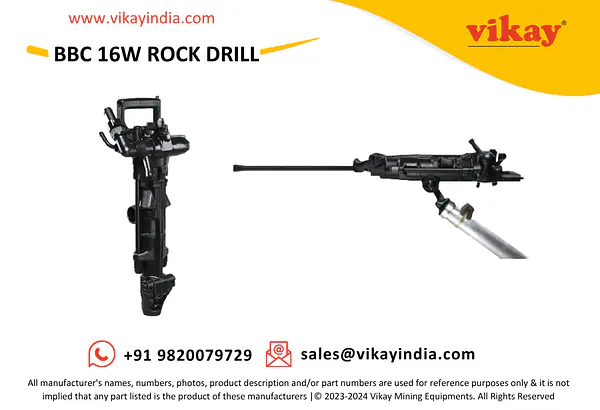

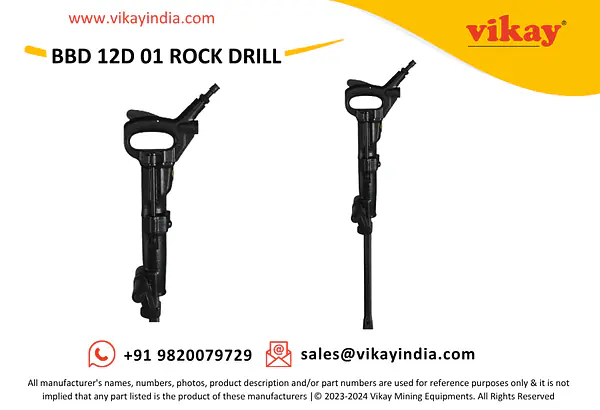

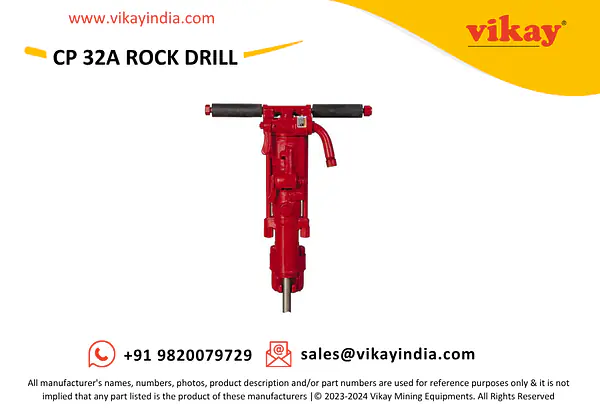

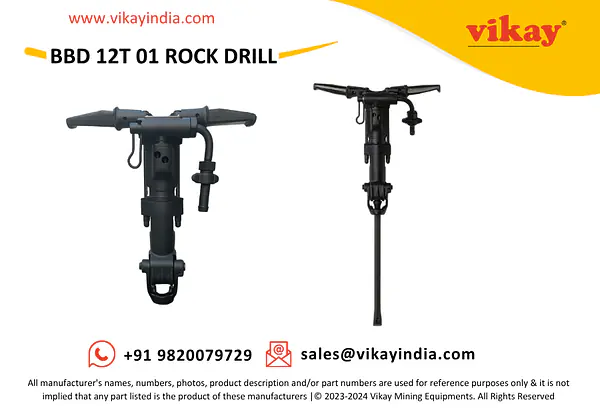

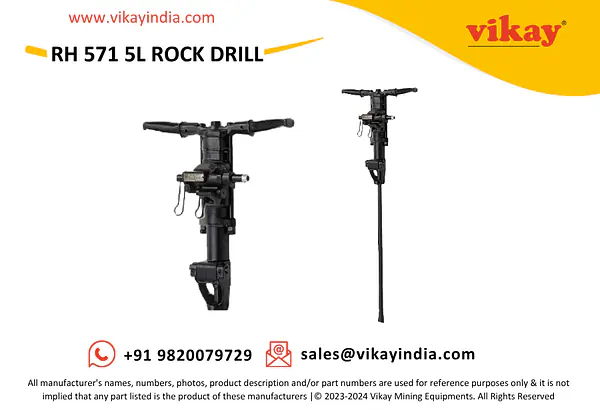

The range covers the sizes that correspond to Atlas Copco RH 571 5L, RH 572E, RH 656 4W and RH 658 5L, the BBC 16W and BBC 34W, the BBD 12D 01, BBD 12T 01, BBD 15E, BBD 15ET and BBD 94W, and the Chicago Pneumatic CP 0022, CP 0024A, CP 0032 and CP 0069. Machines take standard R32 and R38
shank adapters, so existing rods,
coupling sleeves and bits continue to fit.
Spare parts for all of these are stocked under
Rock Drill Parts.
FAQS
What air supply does a hand-held rock drill need?
- Typically around 6 bar at the tool. Air consumption depends on the size of the drill and is listed per model, so the compressor can be sized before ordering.
Which shank adapter and rod thread do these drills use?
- R32 and R38 shanks are the common forms across this range. Shank adapters, coupling sleeves and drill bits in these threads are stocked under Mining Equipment Accessories.
Can Vikay drills replace an Atlas Copco or Chicago Pneumatic machine?
- Yes. They are built to the same duty classes and thread standards, so drill steels, shanks and air hoses transfer directly from the machine being replaced.
