VK 12T Pneumatic Rock Drill
₹1.00
VK 12T Pneumatic Rock Drill
₹1.00
DESCRIPTION
VK 12T Pneumatic Rock Drill
Vikay is a worldwide distributor of VK 12T Pneumatic Rock Drill - Equipped with "T" handle is technically equivalent to BBD 12T Sinker Rock Drill suitable for vertical drilling of up to 3 meters from India.
Light Weight Rock Drill – VK 12T ( 22 lb )
The lightweight VK 12T hand-held rock drill is the perfect partner in a wide variety of applications where manoeuvrability and easy handling are important. Equipped with "T" handles, the VK 12T is designed for vertical drilling of up to 3 meters.
The standard tools are available either in a basic version or in a version with a muffler. The mufflers can also be bought separately for retro-fitting. All breakers are available with a choice of different shanks, to accommodate needs from different markets and customers.
Features
- Light weight for easy handling
- Built-in air-flushing gives faster blasting cycles
- Robust kick-latch retainer - change steels quickly and easily
- Spring-dampened handles reduce vibrations

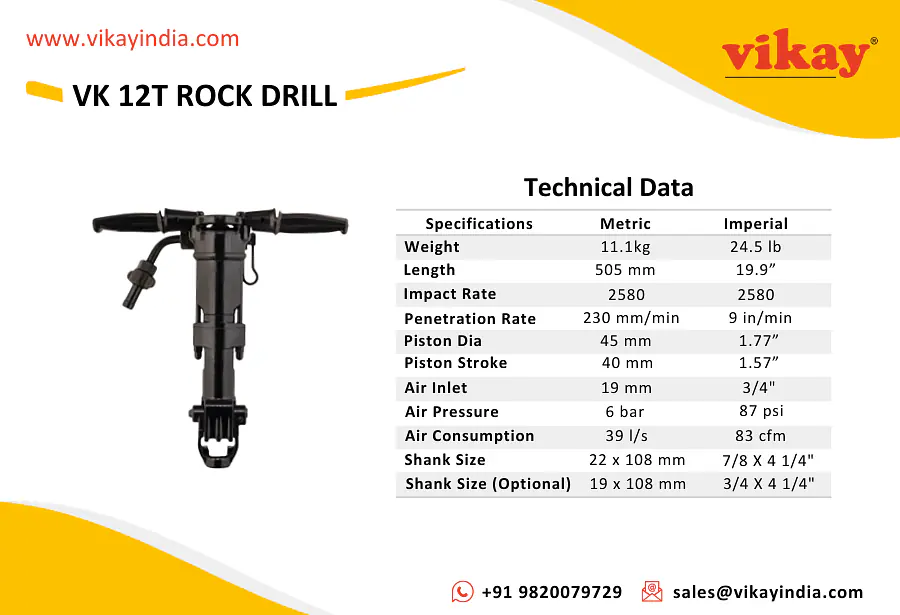

Technical Data
| Specifications | Metric | Imperial |
| Weight | 11.1 kg | 24.5 lb |
| Length | 505 mm | 19.9" |
| Impact Rate | 2580 | 2580 |
| Penetration Rate | 230 mm/min | 9 in/min |
| Piston Dia | 45 mm | 1.77" |
| Piston Stroke | 40 mm | 1.57" |
| Air Inlet | 19 mm | ¾" |
| Air Pressure | 6 bar | 87 psi |
| Air Consumption | 39 l/s | 83 cfm |
| Shank Size | 22 x 108 mm | 7/8 X 4 1/4" |
| Shank Size (optional) | 19 x 108 mm | 3/4 X 4 1/4" |
# Technically equivalent to BBD 12T Sinker Rock Drill
