DESCRIPTION

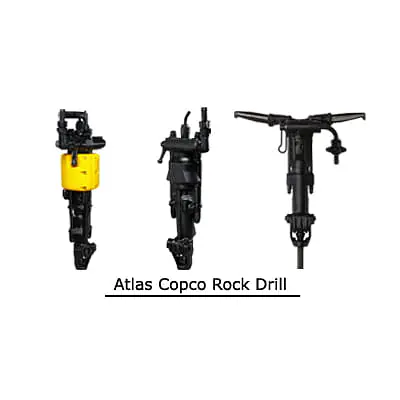

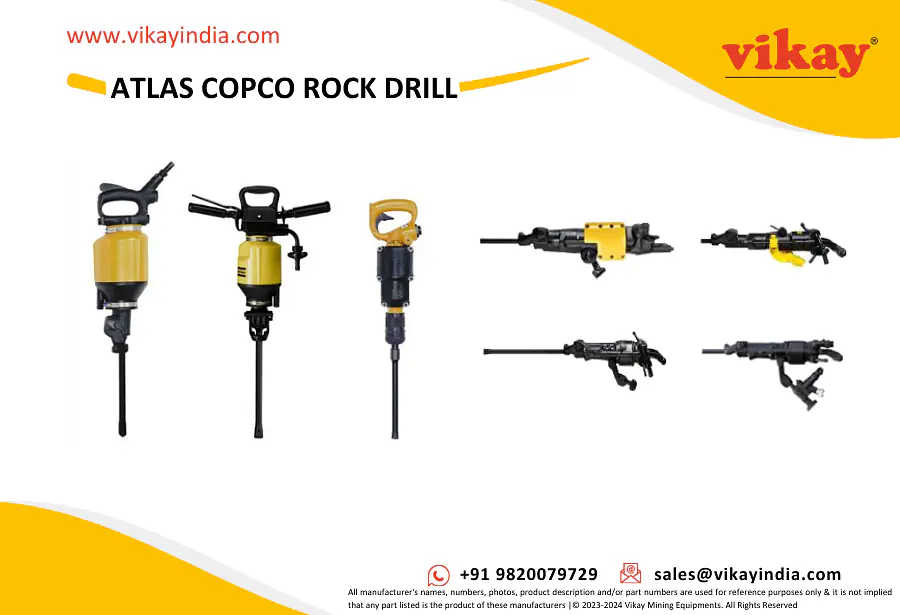

Atlas Copco Rock Drill
Atlas Copco Rock Drill, Vikay is a global supplier of Pneumatic Rock Drill, Hand-Handel Rock Drill, Pusherleg Rock Drill, Pneumatic Rockdrill, Rock Drilling Machine, Rock Drilling Equipment, Rock Drilling Tools, Hand Held Rock Drill, Chicago Pneumatic Rock Drill, Epiroc Rock Drill, Atlas Copco Rock Drill from India.
| Model | RH 571-5L | RH 572E | RH 656 4W | RH 658-5L |
| Weight - kg | 17.8 | 22.8 | 22 | 24 |
| Length - mm | 510 | 583 | 658 | 565 |
| Air consumption - l/s | 39 | 37 | 48 | 58 |
| Stroke frequency - bpm | 2100 | 2040 | 2040 | 2040 |
| RPM - rpm | 190 | 170 | - | 215 |
| Drilling speed - mm/min | 295 | 260 | - | 425 |
| Vibration - m/s² | 23.2 | 9.7 | 21.2 | 21.2 |
| Drill Steel Chuck - mm | 22x108 | 22x108 | 22x108 | 22x108 |
| Part Number | 8311030129 | 8311030178 | 8311030202 | 8311030277 |
| Model | BBD 12D | BBD 12T | BBD 15E | BBD 15ET |
| Weight - kg | 9.8 | 11.1 | 15.5 | 15.5 |
| Length - mm | 565 | 560 | 575 | 575 |
| Air consumption - l/s | 24 | 24 | 22 | 22 |
| Stroke frequency - bpm | 2580 | 2580 | 2520 | 2520 |
| RPM - rpm | 220 | 220 | 220 | 220 |
| Drilling speed - mm/min | 250 | 150 | 220 | 220 |
| Vibration - m/s² | 22.2 | 16 | 7 | 7 |
| Drill Steel Chuck - mm | 19x108 | 22x108 | 22x108 | 19x108 |
| Part Number | 8311010296 | 8311010295 | 8311 0104 10 | 8311 0104 12 |
| Particulars | BBC-16W | BBC-34W | BBC 34 DSI | BBD 94W | BBD 94W DSI |
| Weight (kg) | 26 | 31 | 27 |
| Length (mm) | 710 | 775 | 670 |
| Air Consumption at 6 bar (CFM) | 146 | 187 | 206 |
| Piston Bore (mm) | 70 | 80 | 90 |
| Stroke Length (mm) | 55 | 70 | 45 |
| Hole Range | 27 - 41 | 27 - 41 | 27 41 |
| Impact Rate at 6 bar (Hz) | 39 | 38 | 55 |
| Part Number | 8311040110 | 8311040805 | 8311040806 | 8311020609 | 8311020610 |
