VK 12D Pneumatic Rock Drill
₹1.00
VK 12D Pneumatic Rock Drill
₹1.00
DESCRIPTION
VK 12D Pneumatic Rock Drill
Vikay is a worldwide distributor of VK 12D Pneumatic Rock Drill - Equipped with "D" handle is technically equivalent to BBD 12D Sinker Rock Drill suitable for horizontal drilling, plug hole drilling and drilling in concrete from India.
Light Weight Rock Drill – VK 12D ( 22 lb )
The lightweight VK 12D hand-held rock drill is the perfect partner in a wide variety of applications where manoeuvrability and easy handling are important. Equipped with a "D" type handle, it is used for horizontal drilling, plug hole drilling, and drilling in concrete with a maximum depth of 1 meter.
The standard tools are available either in a basic version or in a version with a muffler. The mufflers can also be bought separately for retro-fitting. All breakers are available with a choice of different shanks, to accommodate needs from different markets and customers.
Features
- Light weight for easy handling
- Built-in air-flushing gives faster blasting cycles
- Robust kick-latch retainer - change steels quickly and easily
- Spring-dampened handles reduce vibrations

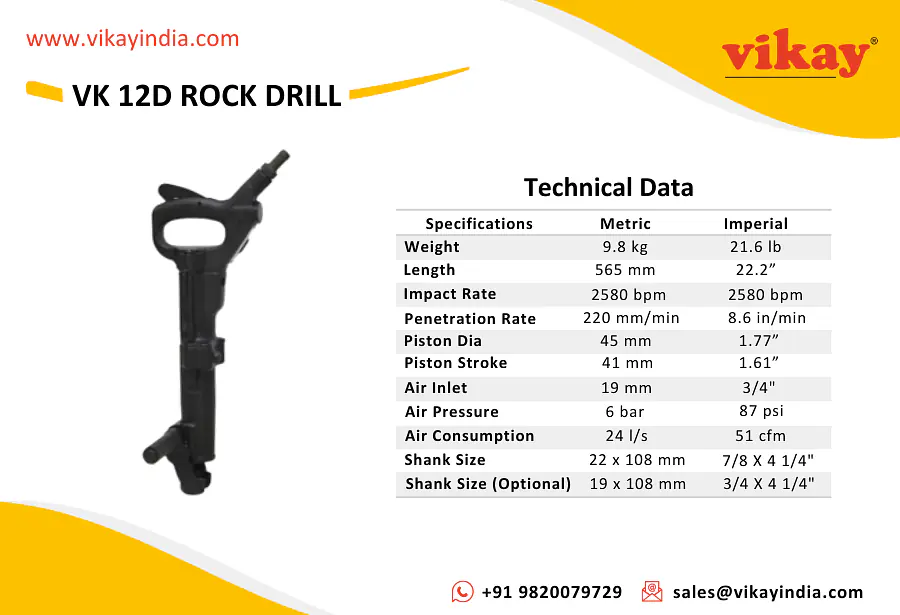

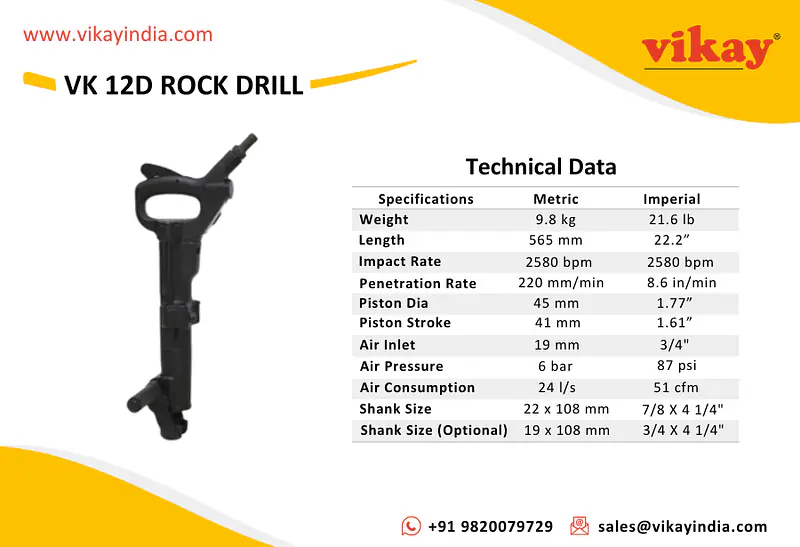

Technical Data
| Specifications | Metric | Imperial |
| Weight | 9.8 kg | 21.6 lb |
| Length | 565 mm | 22.2" |
| Impact Rate | 2580 bpm | 2580 bpm |
| Penetration Rate | 220 mm/min | 8.6 in/min |
| Piston Dia | 45 mm | 1.77" |
| Piston Stroke | 41 mm | 1.61" |
| Air Inlet | 19 mm | 3/4" |
| Air Pressure | 6 bar | 87 psi |
| Air Consumption | 24 l/s | 51 cfm |
| Shank Size | 22 x 108 mm | 7/8 X 4 1/4" |
| Shank Size (optional) | 19 x 108 mm | 3/4 X 4 1/4" |
# Technically equivalent to BBD 12D Sinker Rock Drill
