Chicago Pneumatic Rock Drill
Regular price
₹0.00
Chicago Pneumatic Rock Drill
Regular price
₹0.00
DESCRIPTION

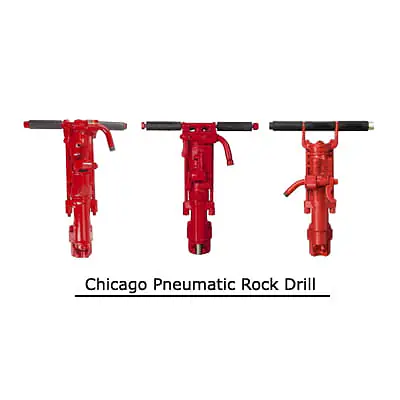

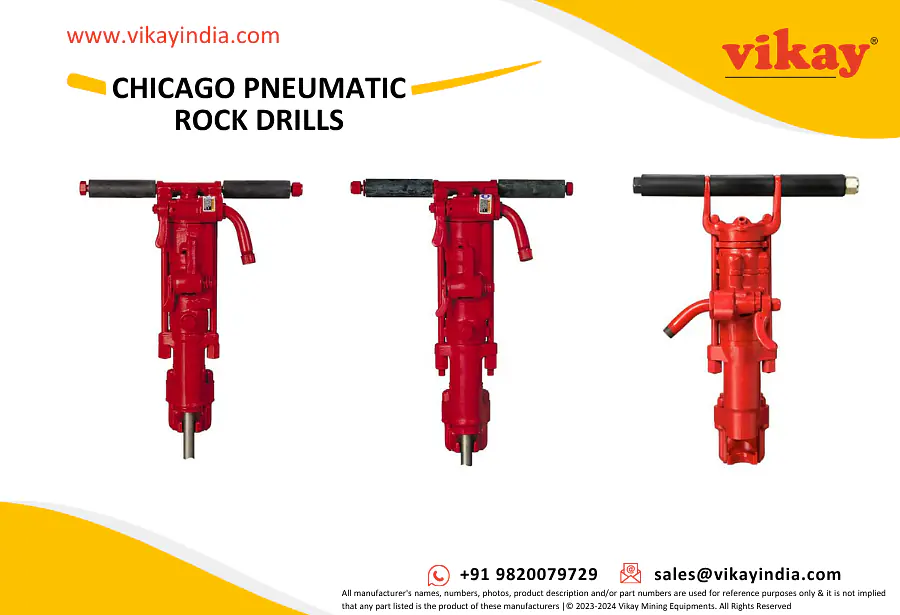

Chicago Pneumatic Rock Drill
Chicago Pneumatic Rock Drill, Vikay is a global supplier of Pneumatic Rock Drill, Hand-Handel Rock Drill, Pusherleg Rock Drill, Pneumatic Rockdrill, Rock Drilling Machine, Rock Drilling Equipment, Rock Drilling Tools, Hand Held Rock Drill, Chicago Pneumatic Rock Drill, Epiroc Rock Drill, Atlas Copco Rock Drill from India.
| Particulars | CP 0032 | CP 0069 | CP 0022 |
| Weight - (kg) | 255 | 275 | 15 |
| Length - (mm) | 575 | 610 | 500 |
| Air consumption - (l/s) | 48 | 61 | 22 |
| Blows per minute - (bpm) | 1980 | 1860 | 2220 |
| Piston diameter - (mm) | 67 | 70 | 60 |
| Stroke length - (mm) | 51 | 67 | 44 |
| Rotation speed - (rpm) | 180 | 210 | 232 |
| Drill rate 2 - (mm/min) | 230 | 260 | 150 |
| Max drilling diameter - (mm) | 50 | 62 | 43 |
| Max drilling depth 3 - (mm) | 3000 | 6000 | 2400 |
| Air inlet - (inch) | 3/4" swivel | 3/4" swivel | 1/2" swivel |
| Muffler included | Option | Option | No |
| Vibration level 3 axes (ISO 28927-10) 1 - (m/s2) | 219 | 290 | 257 |
| Sound power level guaranteed (2000/14/EC) 1 - (dB(A) ) | 122 | 124 | 116 |
| Sound pressure level (ISO 11203) 1 - (dB(A) ) | 111 | 113 | 106 |
| Chuck size - (mm) | Hex 22x108 | Hex 22x108 | Hex 22x108 |
| Part number | T022117 | T00661 | 8900002002 |
| Stock Code No | Z0011433 | Z0011438 | Z0026439 |
