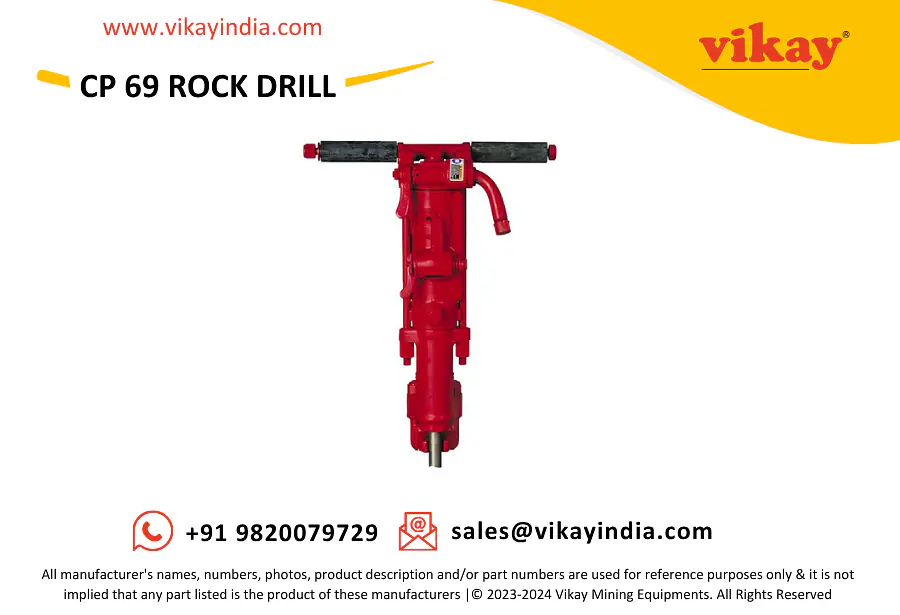

Cp 0069 Chicago Pneumatic Rock Drill
Regular price
₹0.00
Cp 0069 Chicago Pneumatic Rock Drill
Regular price
₹0.00
Cp 0069 Chicago Pneumatic Rock Drill
| Particulars | CP 0069 | |
| Weight | kg | 27,5 |
| Length | mm | 610 |
| Air consumption | l/s | 61 |
| Blows per minute | bpm | 1860 |
| Piston diameter | mm | 70 |
| Stroke length | mm | 67 |
| Rotation speed | rpm | 210 |
| Drill rate 2) | mm/min | 260 |
| Max drilling diameter | mm | 62 |
| Max drilling depth 3) | mm | 6000 |
| Air inlet | inch | 3/4" swivel |
| Muffler included | Option | |
| Vibration level 3 axes (ISO 28927-10) 1) | m/s2 | 29,0 |
| Sound power level guaranteed (2000/14/EC) 1) | dB(A) | 124 |
| Sound pressure level (ISO 11203) 1) | dB(A) | 113 |
| Chuck size | mm | Hex 22x108 |
| Part number | T006661 | |
| Stock Code No | Z0011438 |
