Feed Assembly 70615232 Replacement

Vikay is a global supplier of new aftermarket replacement parts - Feed Assembly 70615232 for LM 100 Wagon Drill from India.

View PDF

Product

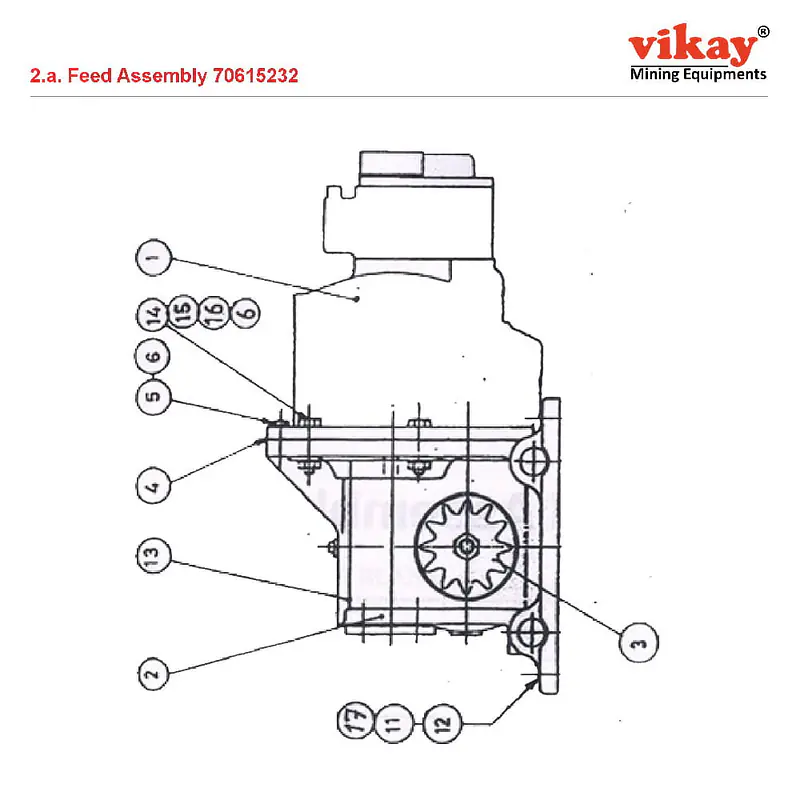

Feed Assembly 70615232

Sr.No. Part No. Description
1 94079670 MOTOR, AIR
2 94064995 BOX, GEAR
3 94049855 SPROCKET
4 50206572 GASKET, WORM HOUSING
5 94031622 SCREW 3/8"UNC X 1.1/4"LONG
6 94037587 WASHER SPRING 3/8"
11 94055704 BOLT 5/8"UNC X 2.1/2' LONG
12 94037637 WASHER SPRING B 5/8"
13 94128121 GUARD
14 94044740 SCREW 3/8"UNC X 1" LONG
15 94038791 SCREW 3/8"UNC X 3/4" LONG
16 94031184 WASHER PLAIN
17 70134820 NUT

Details

  • type: product
  • SKU: 70615232
