Centraliser (DTH) Ingersoll Rand LM 100 Parts
Regular price
₹0.00
Centraliser (DTH) Ingersoll Rand LM 100 Parts
Regular price
₹0.00
DESCRIPTION
Centraliser (DTH) 70615224 Replacement
Vikay is a global supplier of new aftermarket replacement parts - Centraliser (DTH) 70615224 for LM 100 Wagon Drill from India

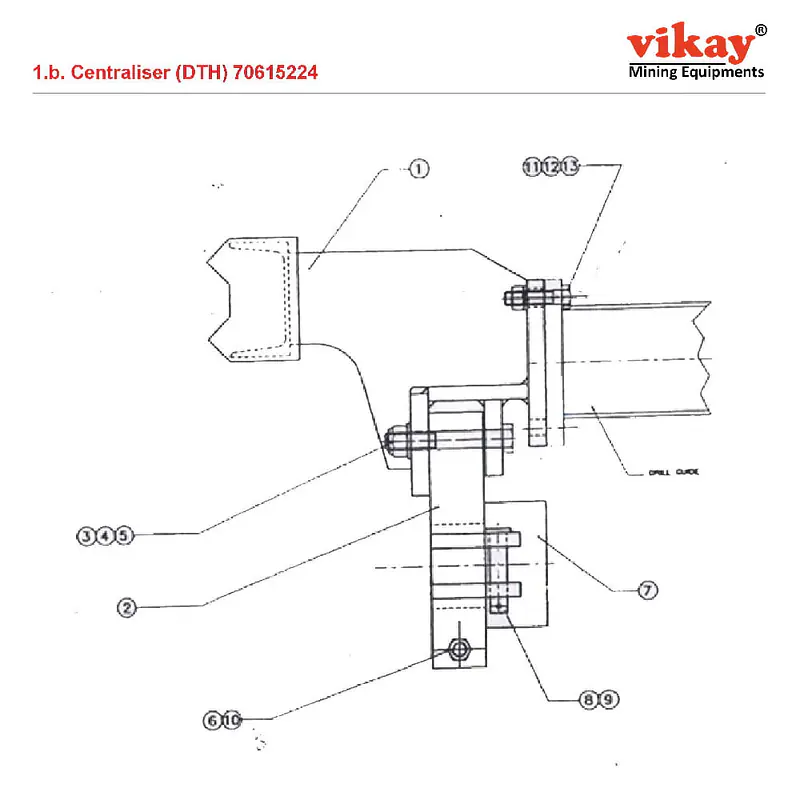

Centraliser (DTH) 70615224
| No. | Description | Ref. Part No. | QTY |
| 1 | Assembly , Foot Pad | 70612395 | 1 |
| 2 | Housing. Centraliser | 70612353 | 1 |
| 3 | Bolt Hex. M20 X 130 Long | 94055936 | 2 |
| 4 | Washer, Plain A22. | 94038601 | 2 |
| 5 | Nut Hex. Nylock M20 | 94041308 | 2 |
| 6 | Bolt Hex. M16 X 140 Long | 94128816 | 1 |
| 7 | Housing, Centraliser | 70612361 | 1 |
| 8 | Pin, Collar | 70614060 | 2 |
| 9 | Pin, Spring Dowel | 70010053 | 2 |
| 10 | Washer Spring B16 | 94036654 | 6 |
| 11 | Bolt Hex. Head M16.X 65 Long | 94037025 | 4 |
| 12 | Washer Spring B16 | 94036654 | 4 |
| 13 | Nut Hex. M16 | 94037611 | 4 |
