Gear Box Feed Ingersoll Rand LM 100 Parts
Regular price
₹0.00
Gear Box Feed Ingersoll Rand LM 100 Parts
Regular price
₹0.00
DESCRIPTION
Gear Box - Feed 94064995 Replacement
Vikay is a global supplier of new aftermarket replacement parts - Gear Box - Feed 94064995 for LM 100 Wagon Drill from India.

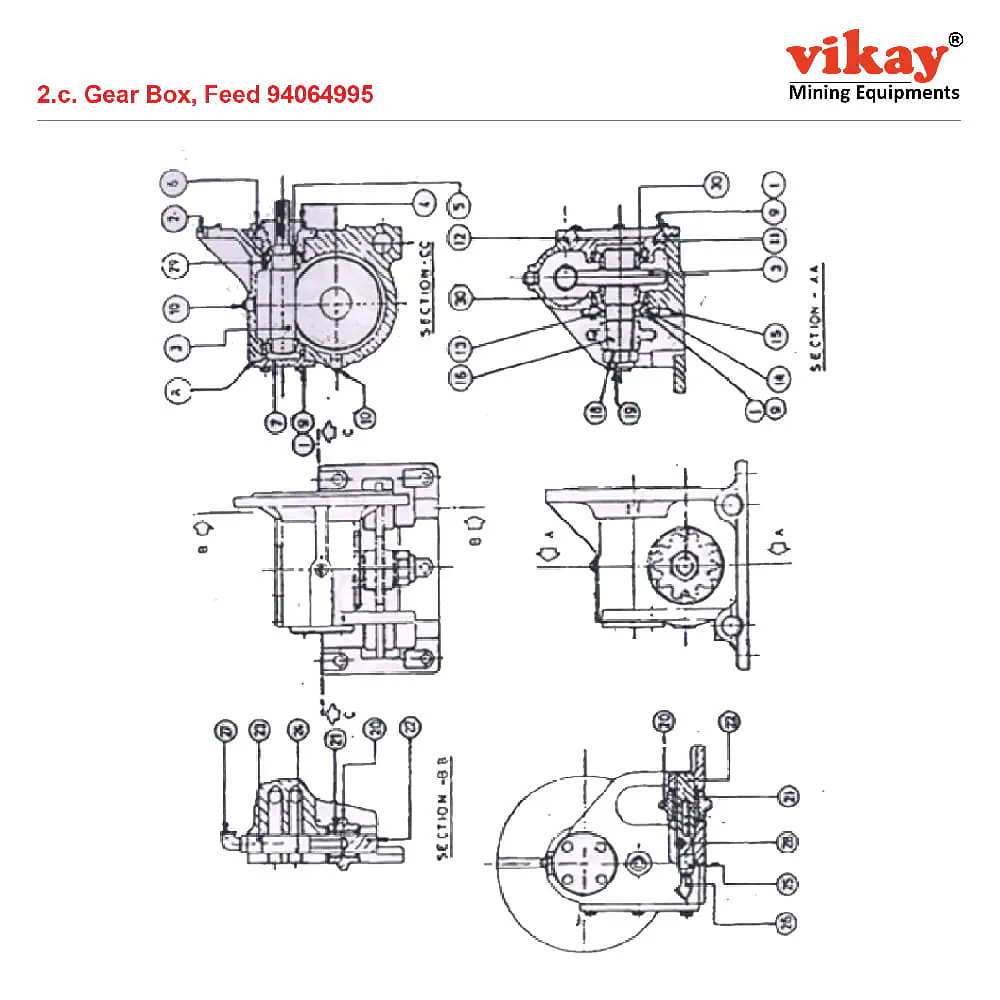

Gear Box - Feed 94064995
| No. | Description | Ref. Part No. | QTY |
| 1 | Washer Spring | 94037587 | 16 |
| 2 | Housing, Worm Gear | 50399641 | 1 |
| 3 | Worm & Gear Set | 50445774 | 1 |
| Worm | *** | 1 | |
| Gear | *** | 1 | |
| 4 | Housing, Crank Bearing. | 50206663 | 1 |
| 5 | Seal, Rod | 50207265 | 1 |
| 6 | Cap Screw | 94031515 | 4 |
| 7 | Plate, End | 50206606 | 1 |
| 8 | Shim, End Plate | 50995455 | 1 |
| 9 | Cap Screw | 94055530 | 16 |
| 10 | Plug, Pipe | 94028123 | 2 |
| 11 | Housing, Worm Bearing | 50206630 | 1 |
| 12 | Shim, Housing | 50995521 | 1 |
| 13 | Seal. Oil | 50954155 | 2 |
| 14 | Housing, Worm Gear Seal | 50206655 | 1 |
| 15 | Shim, Housing | 50995513 | 1 |
| 16 | Key | 94046588 | 1 |
| 18 | Washer | 94065273 | 1 |
| 19 | Nut | 94065109 | 1 |
| 20 | Roller, Chain | 50206549 | 2 |
| 21 | Bearing, Roller | 50209352 | 4 |
| 22 | Shaft,Chain Roller | 50206531 | 2 |
| 23 | Bushing, Reducing | 94039617 | 1 |
| 24 | Plug,.Pipe | 94065596 | 2 |
| 25 | Bushing, Reducing | 94062494 | 1 |
| 26 | Elbow | 94205309 | 1 |
| 27 | Elbow | 94205358 | 1 |
| 28 | Plug, Pipe | 94034105 | 1 |
| 29 | Cone I Cup Bearing | 94065125 | 2 |
| 30 | Cone Icup-Bearing | 94065117 | 2 |
