DESCRIPTION
Drill Guide Assembly 70615216 Replacement
Vikay is a global supplier of new aftermarket replacement parts - Drill Guide Assembly 70615216 for LM 100 Wagon Drill from India

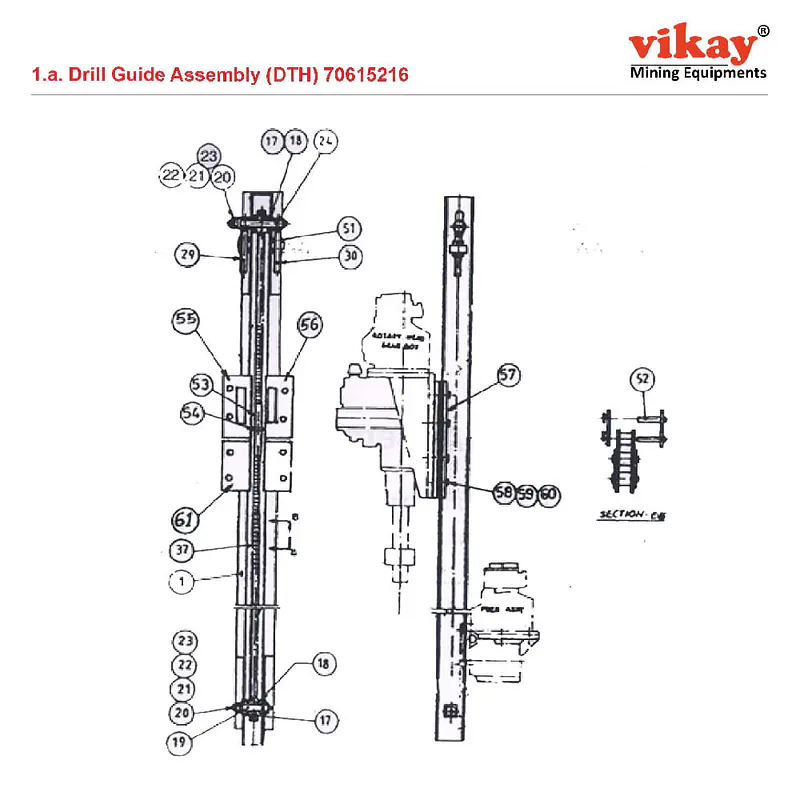

Drill Guide Assembly 70615216
| No. | Description | Ref. Part No. | QTY |
| 1 | Guide Bare | 70613211 | 1 |
| 17 | Sprocket | 70615349 | 2 |
| 18 | Bushing | 70615364 | 2 |
| 19 | Shaft, Sprocket | 50781335 | 1 |
| 20 | Nut Castle,3/4" Bsw | 94052743 | 2 |
| 21 | Washer 3/4" | 94041662 | 2 |
| 22 | Pin,Cotter | 94052750 | 2 |
| 23 | Fltting, Grease | 94050655 | 2 |
| 24 | Shaft, Sprocket | 50781327 | 1 |
| 29 | Bolt, Adjusting | 50783976 | 1 |
| 30 | Bolt, Adjusting | 50783984 | 1 |
| 37 | Chain,Feed | 70614615 | 1 |
| 51 | Nut 1.3/4"Bsw | 94041274 | 4 |
| 52 | Link, Connecting | 94128733 | 2 |
| 53 | Chain Joint Piece | 94049798 | 1 |
| 54 | Pin, Anchor | 94198298 | 1 |
| 55 | Plate, Side Rh | 70613823 | 1 |
| 56 | Plate, Side Lh | 70613831 | 1 |
| 57 | Plate, Guide | 70613849 | 2 |
| 58 | Bolt M16x 65long | 94037025 | 10 |
| 59 | Nut M16 | 94037611 | 10 |
| 60 | Nut Lock M16 | 94052511 | 10 |
| 61 | Plate,Side | 70613955 | 2 |
