DESCRIPTION
Air Motor - Rotary Head 94049434 Replacement
Vikay is a global supplier of new aftermarket replacement parts - Air Motor - Rotary Head 94049434 for LM 100 Wagon Drill from India.

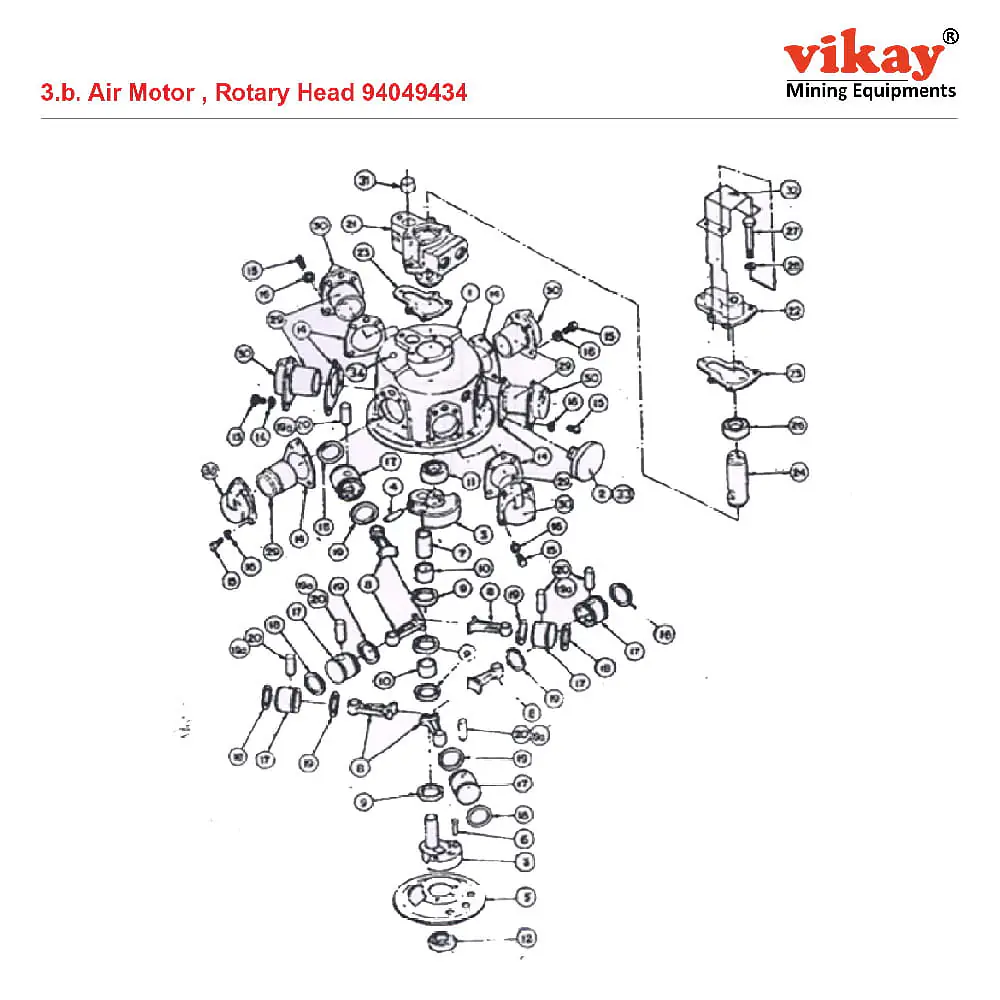

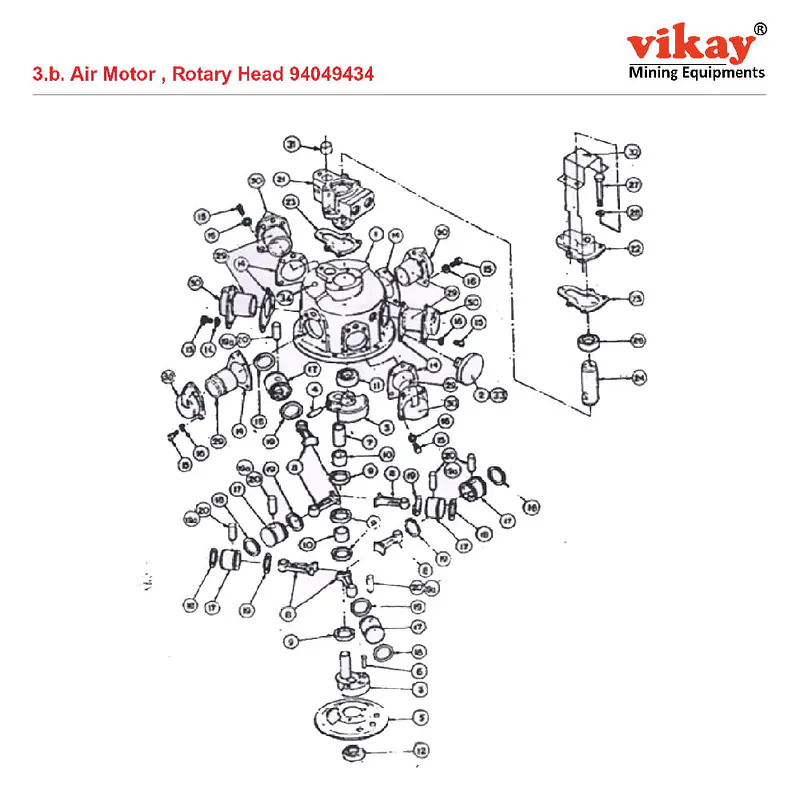

Air Motor - Rotary Head 94049434
| No. | Description | Ref. Part No. | QTY |
| 1 | Case, Motor | 94125374 | 1 |
| 2 | Vent Cap | 70530068 | 1 |
| Crank Assembly | 03408093 | 1 | |
| 3 | - Crank | 03244639 | 1 |
| 4 | - - Pin Tapered | 03178365 | 1 |
| 5 | - - Splasher Oil | 03244753 | 1 |
| 6 | - - Rivet,Oil Splasher | 03244779 | 3 |
| 7 | - Sleeve. Crank Pin | 03244712 | 1 |
| 8 | - Rod,Connecting | 03244597 | 6 |
| 9 | - Ring, Connecting Rod | 03244613 | 4 |
| 10 | - Bushing, Connecting Rod | 03408002 | 2 |
| 11 | - Bearing, Crank | 03244704 | 1 |
| 12 | - Bearing,Crank | 03173812 | 1 |
| 14 | Gasket, Cylinder Head | 03244589 | 6 |
| 15 | Screw, Cylinder | 03168960 | 24 |
| 16 | Washer, Cylinder | 03168937 | 24 |
| 17 | Piston | 03613221 | 6 |
| 18 | - Ring, Compression | 03171139 | 1 |
| 19 | - Ring,Oil Regulating | 03171147 | 1 |
| 19A | - Retainer | 03150216 | 2 |
| 20 | Wrist Pin | 03518537 | 6 |
| 21 | Chest,Valve | 94127859 | 1 |
| 22 | Cover, Valve Chest | 94127842 | 1 |
| 23 | Gasket | 03368479 | 2 |
| 24 | Valve, Rotary (See"Note) | 03244746 | 1 |
| 26 | Bearing, Rotary Valvf. | 03151081 | 1 |
| 27 | Screw, Valve Chest | 03244845 | 5 |
| 28 | Lock Washer | 03167194 | 5 |
| 29 | Sleeve, Cylinder | 03612066 | 6 |
| 30 | Head, Cylinder | 03607678 | 6 |
| 31 | Plug | 94027521 | 1 |
| 32 | Cover Exhaust | 94050044 | 1 |
| 33 | Adapter | 94050051 | 1 |
| 34 | Plug | 94034105 | 2 |
| NOTE | |||
| Valve, Rotary (Consists Of Following) | 03244746 | 1 | |
| Pin, Rotary Valve | 03042925 | 1 | |
| Valve · | 03244720 | 1 | |
| Plug (Not Supplied Separately) | 03179728 | 1 |
