Chicago Pneumatic Backfill Tampers
Regular price
₹0.00
Chicago Pneumatic Backfill Tampers
Regular price
₹0.00
DESCRIPTION

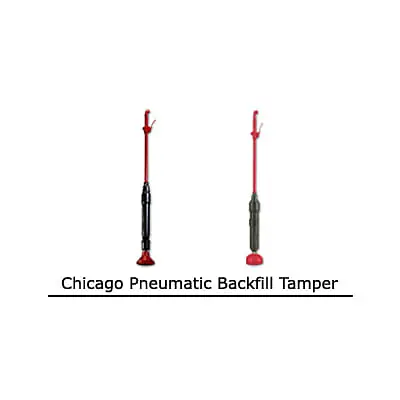

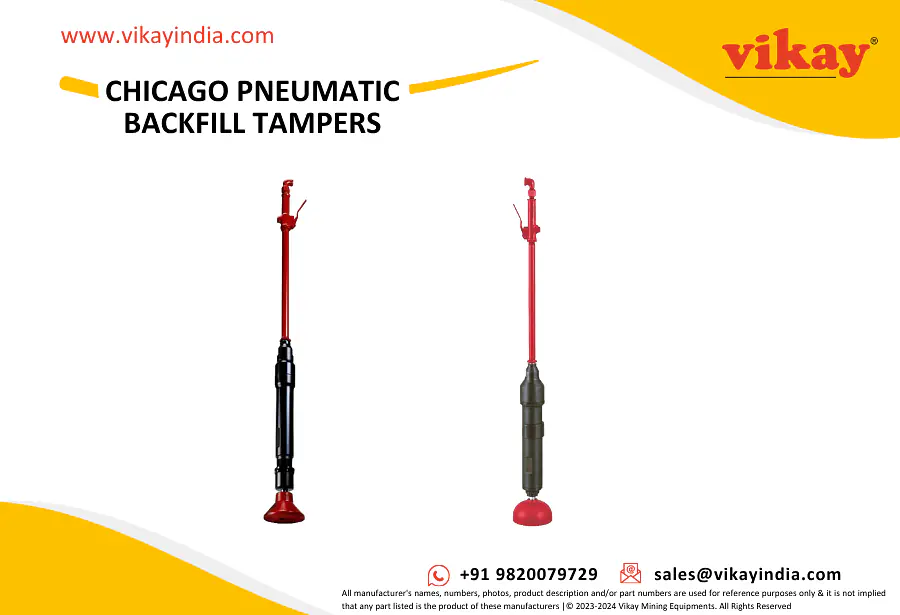

Chicago Pneumatic Backfill Tampers
Vikay Mining Equipments is a global supplier of Backfill Tamper - CP 0003 Chicago Pneumatic Backfill Tamper, CP 0004 Chicago Pneumatic Backfill Tamper from India.
| Particulars | CP 0004 | CP 0003 |
| Weight | 19 kg | 136 kg |
| Length | 1270 mm | 1320 mm |
| Body diameter | 25 mm | 22 mm |
| Butt size | 160 mm | 127 mm |
| Air consumption | 13 l/s | 84 l/s |
| Blows per minute | 780 bpm | 800 bpm |
| Air inlet | 1/2 inch NPTF | 1/2 inch NPTF |
| Vibration level 3 axes | 448 m/s2 | 323 m/s2 |
| (ISO 20643) 1) | 448 m/s2 | 323 m/s2 |
| Sound power level | 109 dB(A) | 108 dB(A) |
| guaranteed (2000/14/EC) 1) | 109 dB(A) | 108 dB(A) |
| Sound pressure level (2000/14/EC) 1) | 94 dB(A) | 95 dB(A) |
| Sound power uncertainty value K | 3 dB(A) | 3 dB(A) |
| Valve type | Ring valve | Simplate Valve |
| Bore and stroke | 57x152 mm | 365x152 mm |
| Part number (at 6 bar) | T022292 | T019307 |
| Stock Code No. | Z0021451 | Z0010890 |
