4 1/8" Button Bit - 105 mm x M4 Shank
Regular price
₹0.00
4 1/8" Button Bit - 105 mm x M4 Shank
Regular price
₹0.00
DESCRIPTION

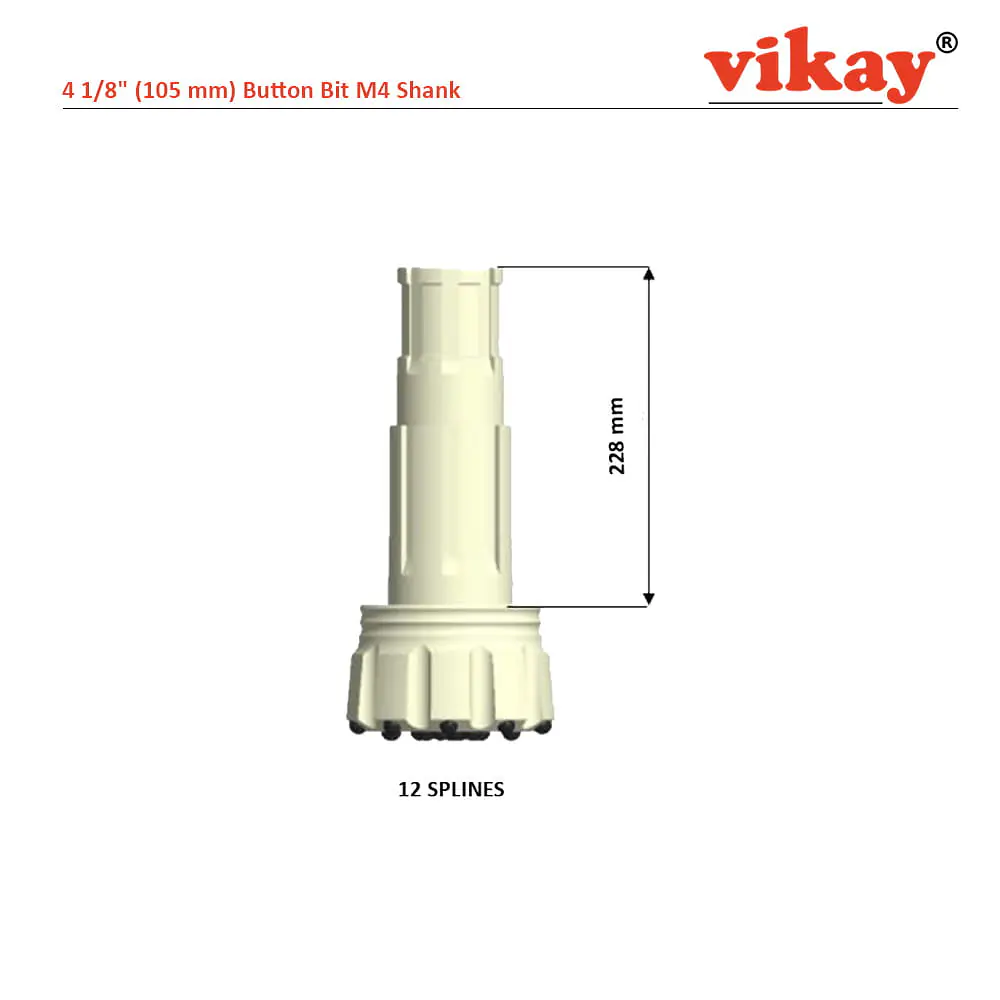

4 1/8" (105 mm) Button Bit M4 Shank
Vikay is a global supplier of new aftermarket replacement parts - 4 1/8" (105 mm) Button Bit M4 Shank from India
Product
| Diameter | Gauge Buttons |
Button diameter (mm) |
Air holes | Weight | Product No. | |||
| Inch | mm | Gauge | Face | kg | lbs | |||
| Flat Face | ||||||||
| 4 1/8 | 105 | 8 | 14 | 13 | 2 | 8 | 17.6 | DB041710501S |
| 4 5/16 | 110 | 8 | 14 | 13 | 2 | 8.5 | 18.7 | DB041711001S |
| 4 1/2 | 115 | 8 | 14 | 13 | 2 | 9 | 19.8 | DB041711501S |
| 4 3/4 | 121 | 8 | 14 | 13 | 2 | 9.3 | 20.5 | DB041712101S |
| 5 | 127 | 8 | 14 | 14 | 2 | 9.5 | 20.9 | DB041712701S |
| 5 1/8 | 130 | 8 | 14 | 14 | 2 | 10 | 22 | DB041713001S |
| Concave | ||||||||
| 4 1/8 | 105 | 8 | 14 | 13 | 2 | 8 | 17.6 | DB041710502S |
| 4 5/16 | 110 | 8 | 14 | 13 | 2 | 8.5 | 18.7 | DB041711002S |
| 4 1/2 | 115 | 8 | 14 | 13 | 2 | 9 | 19.8 | DB041711502S |
| 5 | 127 | 8 | 14 | 14 | 2 | 9.5 | 20.9 | DB041712702S |
| 5 1/8 | 130 | 8 | 14 | 14 | 2 | 10 | 22 | DB041713002S |
| Convex | ||||||||
| 4 1/8 | 105 | 8 | 14 | 13 | 2 | 8 | 17.6 | DB041710503S |
| 4 5/16 | 110 | 8 | 14 | 13 | 2 | 8.5 | 18.7 | DB041711003S |
| 4 1/2 | 115 | 8 | 14 | 14 | 2 | 9 | 19.8 | DB041711503S |
| 5 | 127 | 8 | 14 | 14 | 2 | 9.5 | 20.9 | DB041712703S |
| 5 1/8 | 130 | 8 | 14 | 14 | 2 | 10 | 22 | DB041713003S |
