3 1/2" Button Bit - 90 mm x DHD 3.5 Shank
Regular price
₹0.00
3 1/2" Button Bit - 90 mm x DHD 3.5 Shank
Regular price
₹0.00
DESCRIPTION

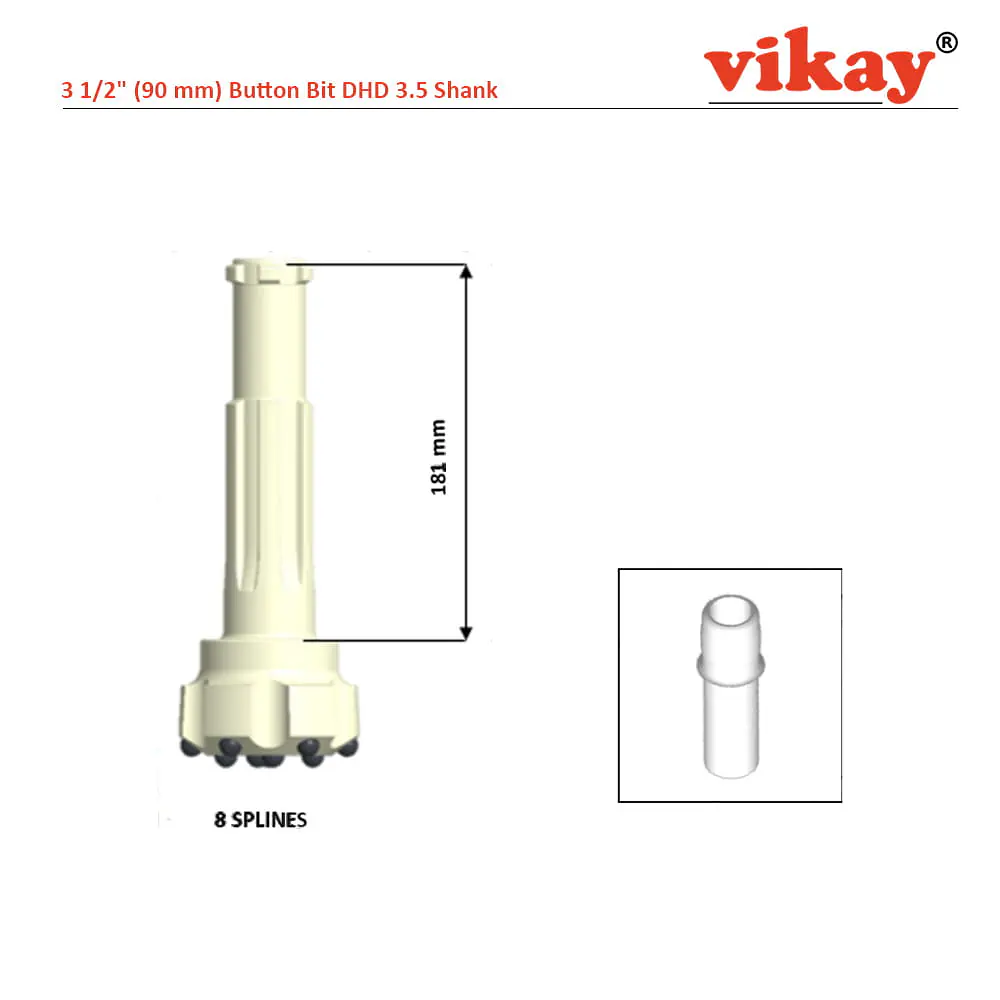

3 1/2" (90 mm) Button Bit DHD 3.5 Shank
Vikay is a global supplier of new aftermarket replacement parts - 3 1/2" (90 mm) Button Bit DHD 3.5 Shank from India.
Product
| Diameter | Gauge Buttons |
Button diameter (mm) |
Air holes | Weight | Product No. | |||
| Inch | mm | Gauge | Face | kg | lbs | |||
| Flat Face | ||||||||
| 3 1/2 | 90 | 7 | 13 | 13 | 2 | 5 | 11 | DB020309001S |
| 4 | 95 | 7 | 13 | 13 | 2 | 5.3 | 11.6 | DB020309501S |
| 4 1/2 | 100 | 8 | 13 | 13 | 2 | 5.8 | 12.7 | DB020310001S |
| 5 | 105 | 8 | 14 | 13 | 2 | 6 | 13.2 | DB020310501S |
| Concave | ||||||||
| 3 1/2 | 90 | 7 | 11 | 13 | 2 | 5 | 11 | DB020309002S |
| 4 | 95 | 7 | 11 | 13 | 2 | 5.3 | 11.6 | DB020309502S |
| 4 1/2 | 100 | 7 | 13 | 13 | 2 | 5.8 | 12.7 | DB020310002S |
| 5 | 105 | 7 | 11 | 13 | 2 | 6 | 13.2 | DB020310502S |
| Convex | ||||||||
| 3 1/2 | 90 | 8 | 11 | 11 | 2 | 5 | 11 | DB020309003S |
| 4 | 100 | 8 | 13 | 13 | 2 | 5.5 | 11.6 | DB020310003S |
| 4 1/2 | 102 | 8 | 13 | 13 | 2 | 5.8 | 12.7 | DB020310203S |
SPECIFICATIONS
