6" Button Bit - 152 mm x DHD 360 Shank
Regular price
₹0.00
6" Button Bit - 152 mm x DHD 360 Shank
Regular price
₹0.00
DESCRIPTION

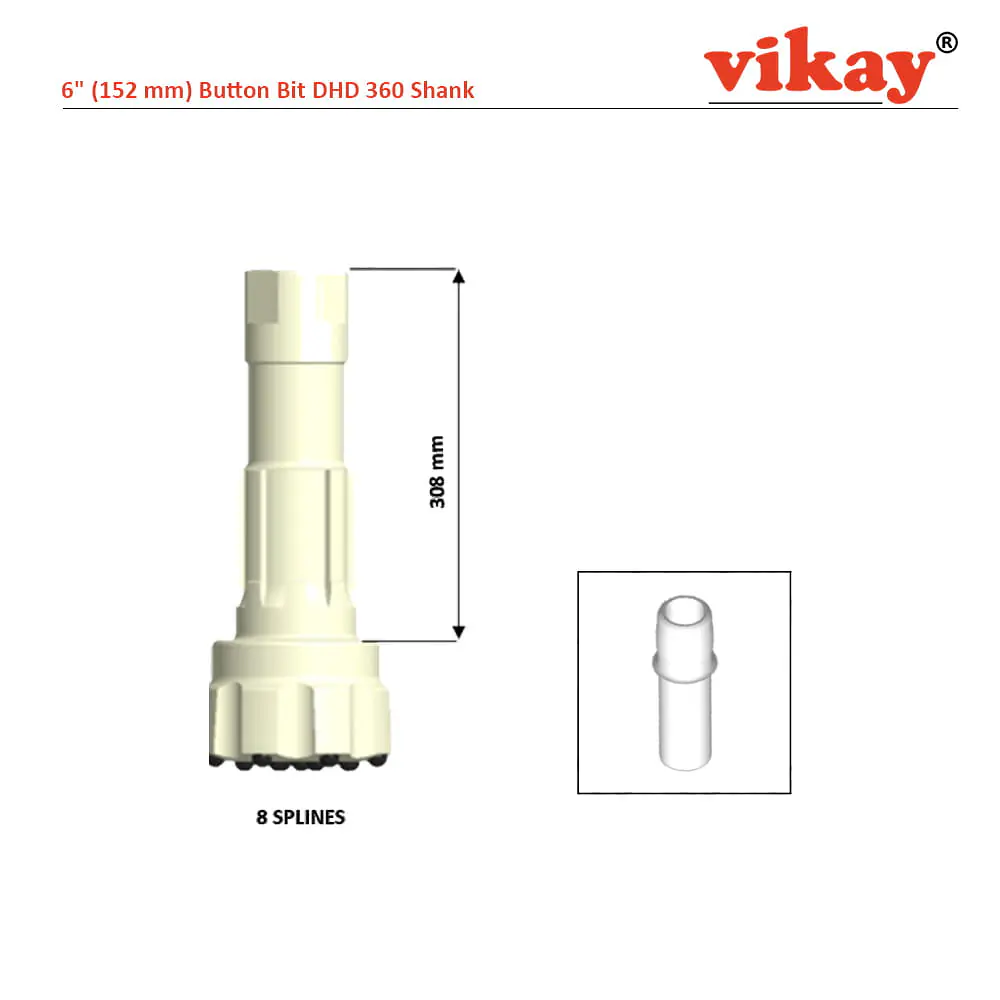

6" (152 mm) Button Bit DHD 360 Shank
Vikay is a global supplier of new aftermarket replacement parts - 6" (152 mm) Button Bit DHD 360 Shank from India.
Product
- Page 1
| Diameter | Gauge Buttons |
Button diameter (mm) |
Air holes | Weight | Product No. | |||
| Inch | mm | Gauge | Face | kg | lbs | |||
| Flat Face | ||||||||
| 6 | 152 | 8 | 16 | 16 | 2 | 26 | 57.2 | DB020615201S |
| 6 1/2 | 156 | 8 | 16 | 16 | 2 | 27 | 59.4 | DB020615601S |
| 7 | 165 | 10 | 16 | 16 | 2 | 30 | 66 | DB020616501S |
| 7 1/2 | 172 | 10 | 16 | 16 | 2 | 31 | 68.2 | DB020617201S |
| 8 | 178 | 10 | 16 | 16 | 2 | 32 | 70.4 | DB020617801S |
| 8 1/2 | 190 | 10 | 16 | 16 | 2 | 34 | 74.8 | DB020619001S |
| 9 | 203 | 10 | 19 | 16 | 2 | 36 | 79.2 | DB020620301S |
| Concave | ||||||||
| 6 | 152 | 8 | 16 | 16 | 2 | 26 | 57.2 | DB020615202S |
| 6 1/2 | 156 | 8 | 16 | 16 | 2 | 27 | 59.4 | DB020615602S |
| 7 | 165 | 10 | 16 | 16 | 2 | 30 | 66 | DB020616502S |
| 7 1/2 | 172 | 10 | 16 | 16 | 2 | 31 | 68.2 | DB020617202S |
| 8 | 178 | 10 | 16 | 16 | 2 | 32 | 70.4 | DB020617802S |
| 8 1/2 | 190 | 10 | 16 | 16 | 2 | 34 | 74.8 | DB020619002S |
| 9 | 203 | 10 | 19 | 16 | 2 | 36 | 79.2 | DB020620302S |
| 9 1/2 | 219 | 10 | 19 | 16 | 2 | 40 | 88.0 | DB020621902S |
| Convex | ||||||||
| 6 | 152 | 8 | 14 | 14 | 2 | 26 | 57.2 | DB020615203S |
| 6 1/2 | 156 | 8 | 16 | 16 | 2 | 27 | 59.4 | DB020615603S |
