8" Button Bit - 203 mm x SD8 Shank
Regular price
₹0.00
8" Button Bit - 203 mm x SD8 Shank
Regular price
₹0.00
DESCRIPTION

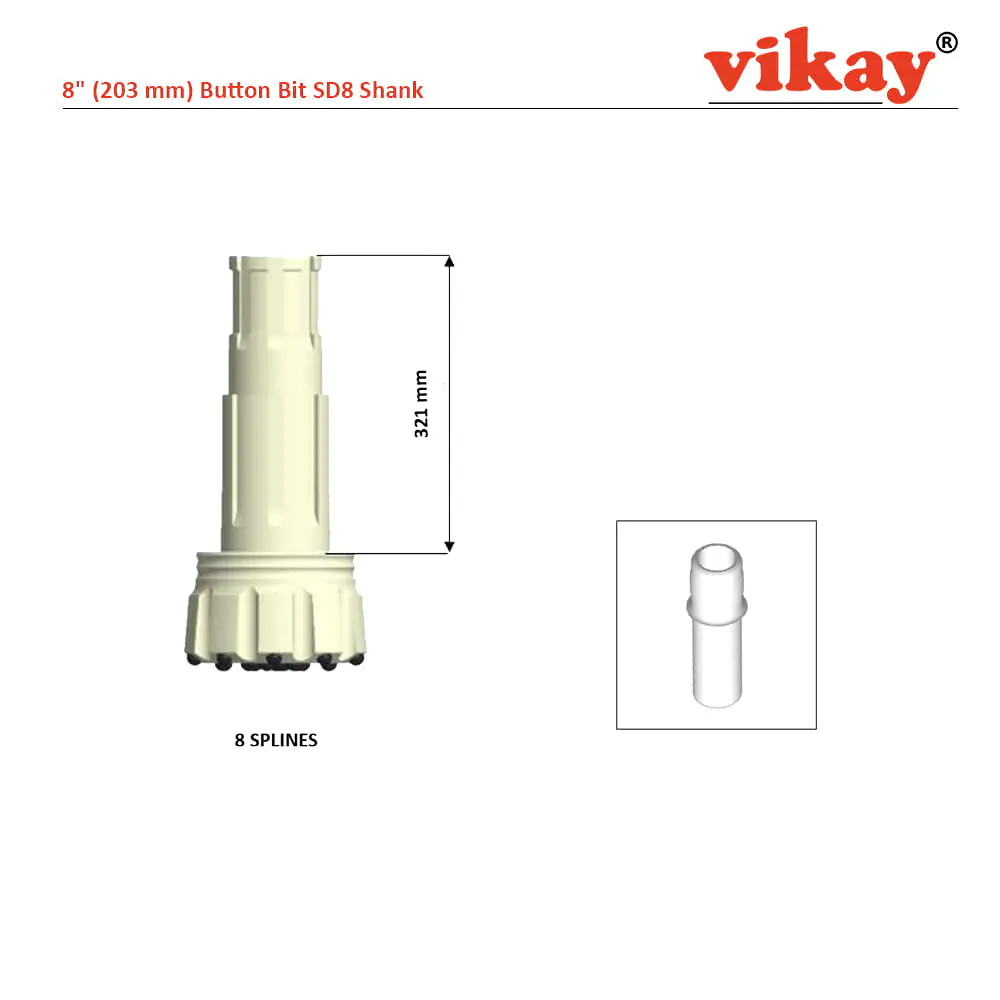

8" (203 mm) Button Bit SD8 Shank
Vikay is a global supplier of new aftermarket replacement parts - 8" (203 mm) Button Bit SD8 Shank from India
Product
| Diameter | Gauge Buttons | Button diameter (mm) | Air holes | Weight | Product No. | |||
| Inch | mm | Gauge | Face | kg | lbs | |||
| Flat Face | ||||||||
| 8 | 203 | 10 | 18 | 16 | 2 | 41 | 90.2 | DB031320301S |
| 8 1/2 | 216 | 10 | 18 | 16 | 2 | 42 | 92.4 | DB031312601S |
| 8 5/8 | 219 | 10 | 18 | 16 | 2 | 44.5 | 97.9 | DB031321901S |
| 8 3/4 | 222 | 10 | 18 | 16 | 2 | 45 | 99 | DB031322201S |
| 8 7/8 | 225 | 10 | 18 | 16 | 2 | 47 | 103.4 | DB031322501S |
| 9 1/2 | 241 | 10 | 18 | 16 | 2 | 50 | 110 | DB031324101S |
| 10 | 254 | 12 | 18 | 16 | 2 | 54.5 | 119.9 | DB031325401S |
| Concave | ||||||||
| 7 7/8 | 200 | 12 | 16 | 16 | 2 | 40.5 | 89.1 | DB031320002S |
| 8 | 203 | 10 | 18 | 16 | 2 | 41 | 90.2 | DB031320302S |
| 8 1/2 | 216 | 10 | 18 | 16 | 2 | 42 | 92.4 | DB031321602S |
| 8 5/8 | 219 | 10 | 18 | 16 | 2 | 44.5 | 97.9 | DB031321902S |
| 8 3/4 | 222 | 10 | 18 | 16 | 2 | 45 | 99 | DB031322202S |
| 8 7/8 | 225 | 10 | 18 | 16 | 2 | 47 | 103.4 | DB031322502S |
| 9 1/2 | 241 | 10 | 18 | 16 | 2 | 50 | 110 | DB031324102S |
| 10 | 254 | 12 | 18 | 16 | 2 | 54 | 118.8 | DB031325402S |
| 10 5/8 | 270 | 12 | 18 | 16 | 3 | 68 | 149.6 | DB031327002S |
| 11 | 280 | 12 | 18 | 16 | 3 | 71 | 156.2 | DB031328002S |
| 12 | 305 | 18 | 18 | 18 | 3 | 75 | 165 | DB031330502S |
