DESCRIPTION
Worm Gear Box Complete Replacement
Vikay is a global supplier of new aftermarket replacement parts - Worm Gear Box Complete for Atlas Copco Wagon Drill Bvb-25 from India.

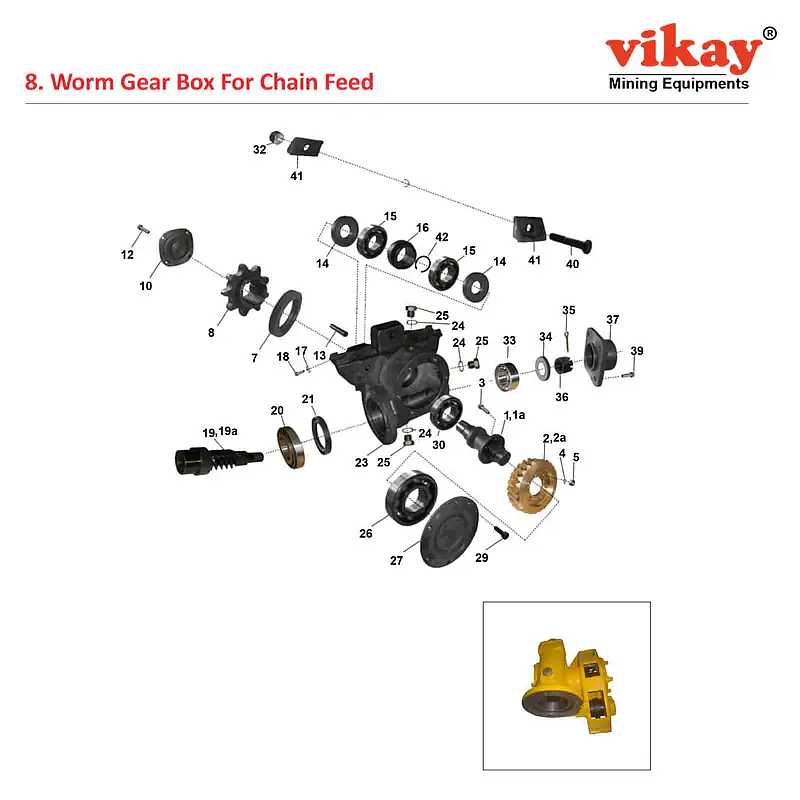

Worm Gear Box Complete
| No. | Description | Ref. Part No. | |
| – | Worm Gear Box Complete - Single Start (1-42) | 3162166382 | |
| – | Worm Gear Housing Complete - Five Start (1-27) | 3162166380 | |
| 1 & 2 | – Shaft Complete with Worm Gear - Single Start | 3162047580 | |
| 1 | – Shaft only for single start | 3162047500 | |
| 2 | – Worm Gear, Single Start (Bronze.2) | 3162047500 * | |
| 1a & 2a | – Shaft Complete with Worm Gear - Five Start | 3162166780 | |
| 1a | – Shaft only for Five start | 3162166700 | |
| 2a | – Worm Gear, Five Start (Bronze Repear 2a) | 3162166700 * | |
| 3 | – Bolt | 3162048100 | |
| 4 | – Spring Washer | ||
| 5 | – Nut (Modified) | * | M100085 |
| 7 | – Seal Ring | 666439300 | |
| 8 | – Sprocket | 9718351200 | |
| 10 | – Cover | 3162047700 | |
| 12 | – Screw | 147132500 | |
| 13 | – Shaft | 3162155100 | |
| 14 | – Washer | 3162158100 | |
| 15 | – Ball Bearing | 502222900 | |
| 16 | – Pulley Wheel | 9718351300 | |
| 17 | – Spring Washer | 333213000 | |
| 18 | – Stop Screw | 3162009700 | |
| 19 | – Worm Shaft, Single Start | 9718350700 | |
| 19A | – Worm Shaft, Five Start | 3162166400 | |
| 20 | – Ball Bearing | 502111000 | |
| 21 | – Seal Ring | 666443200 | |
| 23 | – Gear Housing | 3162166300 | |
| 24 | – Gasket | 653111500 | |
| 25 | – Plug | 686370300 | |
| 26 | – Ball Bearing | 502210700 | |
| 27 | – Cover | 3162048600 | |
| 29 | – Screw | 147132500 | |
| 30 | – Ball Bearing | 502110900 | |
| 32 | – Nut | 266111600 | |
| 33 | – Ball Bearing | 504210500 | |
| 34 | – Washer | 301220400 | |
| 35 | – Split Pin | 111144900 | |
| 36 | – Nut | 3162048400 | |
| 37 | – Cover | 3162048500 | |
| 39 | – Screw | 147132500 | |
| 40 | – Bolt | 3162106800 | |
| 41 | – Clamp | 3162119900 | |
| 42 | – Circlip Int. |
