35 GA Concentric Ring Valve Assly. IR 71T2 Parts
This product is not available in the selected currency.
In Stock
Backordered
Out of Stock
Description
35 GA Concentric Ring Valve Assembly For Ingersoll Rand Type 30 - Model 71T2
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - 35 GA Concentric Ring Valve Assembly For Ingersoll Rand Type 30 - Model 71T2 from India.
Product
- Page 1

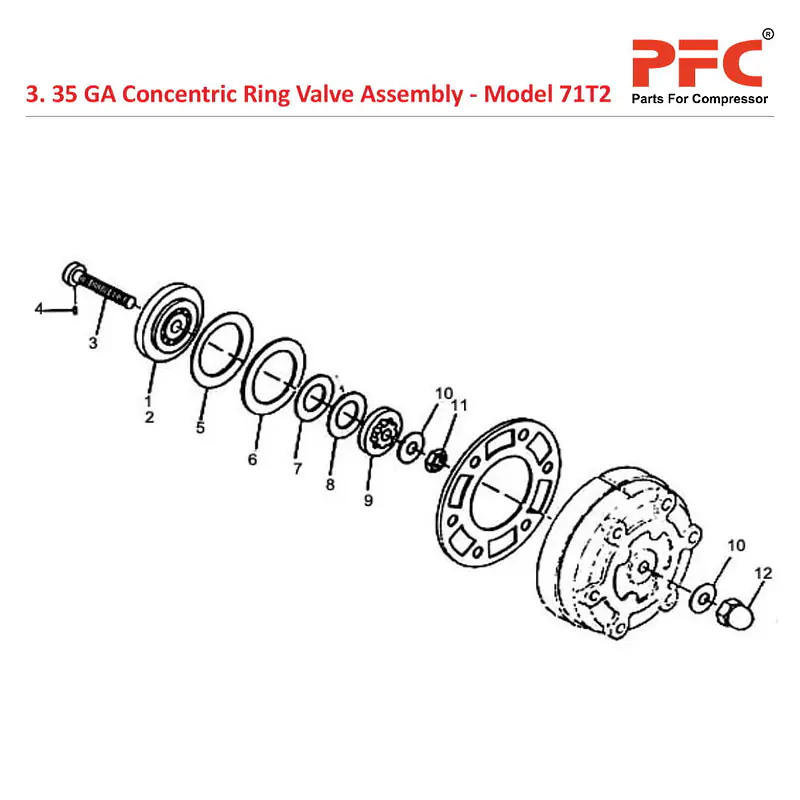

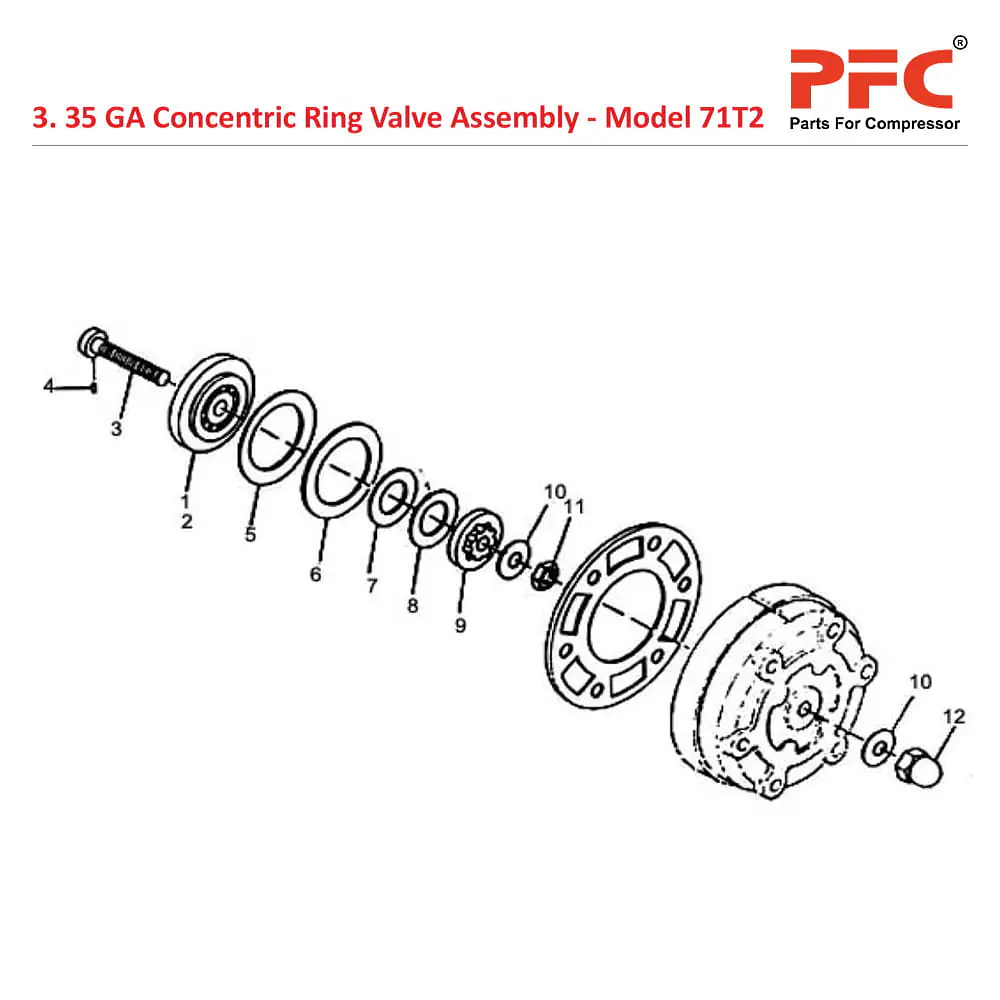

35 GA Concentric Ring Valve Assembly
| Sr.No | Ref. Part Number | Alternate Part Number | Description |
| 3-1 | 37004827 | W75300T30X | Valve complete |
| 3-2 | 30217608 | W21449 | * Seat discharge valve |
| 3-3 | 30220925 | W21454 | * Bolt valve |
| 3-4 | 37002656 | W34171 | * * Pin bolt |
| 3-5 | 30221501 | W21448 | * Spring inlet valve |
| 3-6 | 30181499 | W21447 | * Plate inlet valve |
| 3-7 | 30215941 | W21451 | * Plate discharge valve |
| 3-8 | 30221576 | W21452 | * spring discharge valve |
| 3-9 | 30218994 | W21450 | * Plate discharge valve stop |
| 3-10 | 37092913 | W114141T63 | * Washer spring belleville |
| 3-11 | 95076808 | 22A4C7 | * Nut hex |
| 3-12 | 30287643 | W21750 | * Nut acorn |
Details
- type: product
- SKU: 71T203
