DESCRIPTION

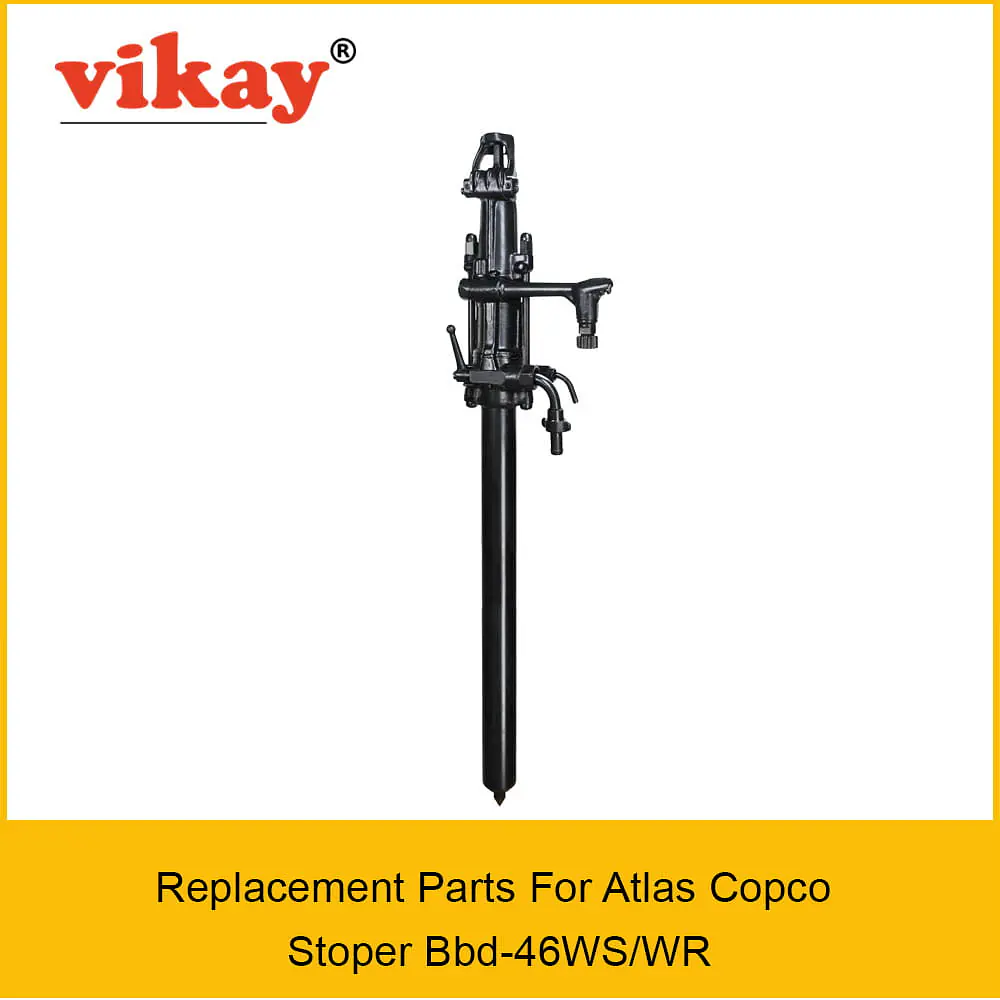

Bbd-46WS/WR Stopper Atlas Copco Replacement Parts
Vikay Mining Equipments is a global supplier of new aftermarket replacement Parts for Atlas Copco Stoper Bbd-46WS/WR from India
Product
- Page 1
Bbd-46WS/WR Stoper Parts
| Sr. No | Description | Ref. Part No. | |
| 1 | Back head, complete (2-12,13,16-24) | 3131014080 | |
| 2 | - Back Head | --- | |
| 3 | - Valve | 3131000200 | |
| 4 | - Throttle lever | 3121006500 | |
| 5 | - Conical nut | 3006873400 | |
| 6 | - Pawl pin | 3121006600 | |
| 7 | - Spring | 3121006700 | |
| 8 | - Valve pin | 3121007000 | |
| 9 | - Packing | 3106967000 | |
| 10 | - Bushing | 3121007100 | |
| 11 | - O Ring | 3121007200 | |
| 12 | - Valve seat | 3106967300 | |
| 13 | Valve body, complete (14-15) | 3115098280 | |
| 14 | Valve body | --- | |
| 15 | O Ring | 0663211200 | |
| 16 | Conical spring | 3100924021 | |
| 17 | Packing | 3106967500 | |
| 18 | Adapter | 3106967600 | |
| 19 | Inlet nipple | 3106874700 | |
| 20 | Adapter | 3121006800 | |
| 21 | Adapter | 3100964200 | |
| 22 | Adapter | 3121001000 | |
| 23 | Strainer | 3121001100 | |
| 24 | Packing | 3121001200 | |
| 25 | Packing | 3100965300 | |
| 26 | Hose nipple | 3100965400 | |
| 27 | Adapter | 3100965200 | |
| 28 | Air flushing tube | 3131014200 | |
| 29 | Water flushing tube | 3121003800 | |
| 30 | Packing | 3121060200 | |
| 31 | Packing | 3100964600 | |
| 32 | Guide ring | 3121077600 | |
| 33 | Adapter | 3131014100 | |
| 34 | Packing | 3101414600 | |
| 35 | O Ring | 0663613600 | |
| 36 | Drill steel retainer | 3121085100 | |
| 37 | Cover | 3121010700 | |
| 38 | O Ring | 0663211400 | |
| 39 | Spring pin | 3100966500 | |
| 40 | Main valve | 3121048600 | |
| 41 | Cylinder | 3131000400 | |
| 42 | Piston | 3121001500 | |
| 43 | Retainer pin | 3121085200 | |
| 44 | Intermediate part, complete (45-46) | 3121008580 | |
| 45 | - Intermediate part | --- | |
| 46 | - Bushing | 3121008600 | |
| 47 | Throttle lever | 3131000500 | |
| 48 | Spring | 3131000600 | |
| 49 | Valve sleeve | 3131000700 | |
| 50 | Valve pin | 3131000800 | |
| 51 | Valve body | 3131000900 | |
| 52 | O Ring | 0663212400 | |
| 53 | Conical nut | 3131001700 | |
| 54 | Valve, complete (55-56) | 3131001080 | |
| 55 | - Valve | --- | |
| 56 | - Valve Liner | --- | |
| 57 | O Ring | 0663212800 | |
| 58 | Shaft | 3131001100 | |
| 59 | Wheel | 3131001200 | |
| 60 | Nut | 3131001300 | |
| 61 | Adapter | 3131001400 | |
| 62 | Washer | 3131001500 | |
| 63 | Spring | 3131001600 | |
| 64 | O Ring | 0663212200 | |
| 65 | Buffer plate | 3121002900 | |
| 66 | Buffer | 3121003000 | |
| 67 | Ratchet wheel | 3121088000 | |
| 68 | Rifle nut | 3121089600 | |
| 69 | Pin | 0102027900 | |
| 70 | Pawl, complete (71-73) | 3115920190 | |
| 71 | - Pawl | 3101315900 | |
| 72 | - Pressure spring | 3121002000 | |
| 73 | - Pawl pin | 3121002100 | |
| 74 | Side bolt nut | 3121087200 | |
| 75 | Hose nipple | 9000032600 | |
| 76 | Wing nut | 9000033900 | |
| 77 | Spring pin | 0108339200 | |
| 78 | Rotation chuck, complete (79-80) | 3121500180 | |
| 79 | - Rotation chuck | --- | |
| 80 | - Rotation chuck bushing 22 x 108 mm | 3121084600 | |
| 81 | Chuck nut | 3121010100 | |
| 82 | Front head | 3121010200 | |
| 83 | Feed cylinder, complete (84-85) | 3132000180 | |
| 84 | - Feed cylinder | --- | |
| 85 | - Bushing | 3132000500 | |
| 86 | Seal | 3162097600 | |
| 87 | Nut | 3132001600 | |
| 88 | Washer | 3132001700 | |
| 89 | Brake ring | 3132001800 | |
| 90 | Back up Ring | 3132001900 | |
| 91 | Spike | 3132002000 | |
| 92 | Piston rod | 3132000800 | |
| 93 | Piston | 3132001400 | |
| 94 | Side bolt | 3131002100 | |
| 95 | Data Plate | --- | |
| 96 | Safety label | 3310160200 |
