Compressor Frame Assembly For Ingersoll Rand Type 30 - Model 2540
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Compressor Frame Assembly For Ingersoll Rand Type 30 - Model 2540 from India.
Product
- Page 1

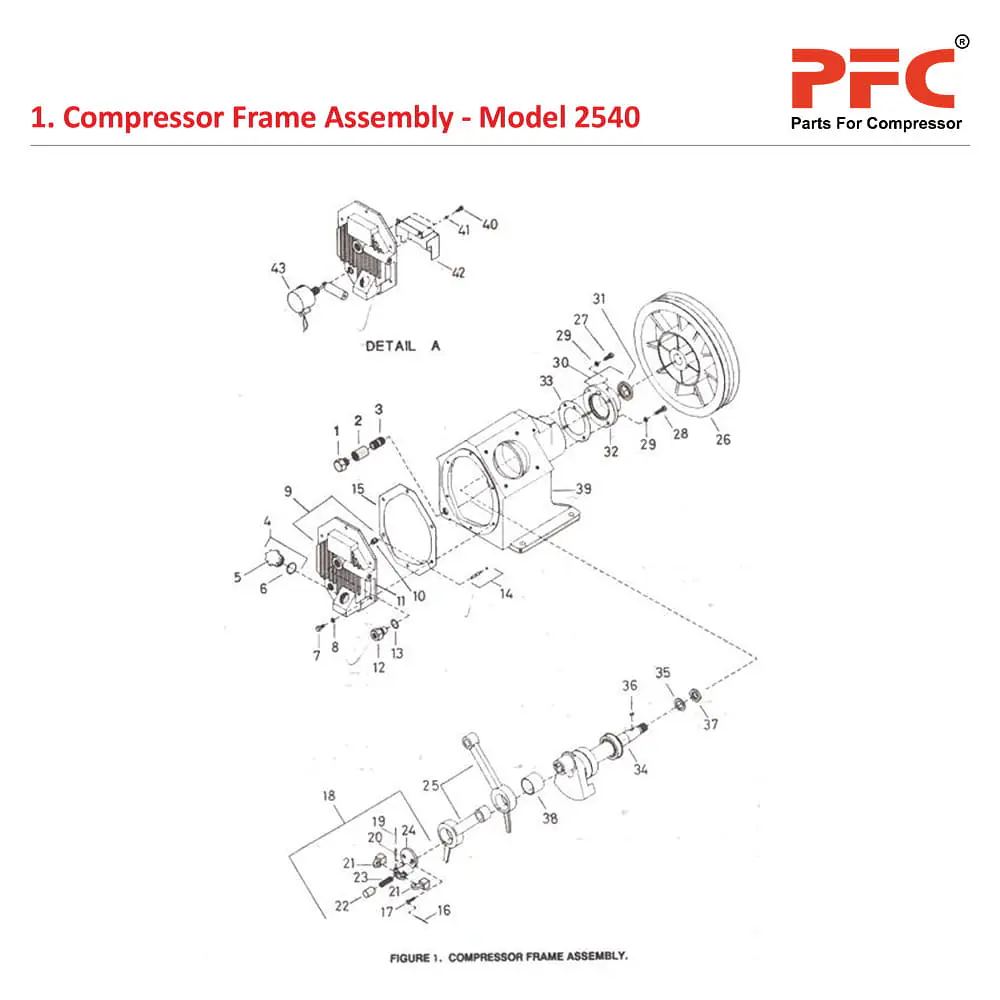

Compressor Frame Assembly
| Ref. No. | Part No. | Description |
| 1-1 | Plug Pipe Hex. Head 1/2" | 95344651 |
| 1-2 | Coupling Pipe 1/2" | 32179061 |
| 1-3 | Nipple Pipe 1/2 X 1-1/2" | 95273330 |
| 1-4 | Plug Oil Filler - Complete | 30216055 |
| 1-5 | Plug Oil Filler | NSS |
| 1-6 | 0-Ring | 95018149 |
| 1-7 | Capscrew-Hex | 95227302 |
| 1-8 | Gasket, Copper Washer - 5/8" | 95674651 |
| 1-9 | Cover Assembly, Frame End | 32183949 |
| 1-10 | Bushing, Pilot Valve | 37127057 |
| 1-11 | Plug Pipe, Hex. Head 3/4" | 95200333 |
| 1-12 | Valve, Pilot | 37113701 |
| 1-13 | Washer Copper | 30346597 |
| 1-14 | Pin Assembly, Thrust | 32028698 |
| 1-15 | Gasket, Frame End Cover | 32183956 |
| 1-16 | Lockwire, 12 Ga X 5 | 90799289 |
| 1-17 | Capscrew - Head | 30278667 |
| 1-18 | Cap Assembly, Crankpin - Centrifugal | 30289110 |
| Unloader | ||
| 1-19 | Lockwire, 12 Ga X 4" | 32006587 |
| 1-20 | Pin Centrifugal Unloader Weight | 30215008 |
| 1-21 | Weight, Centrifugal Unloader | 30221725 |
| 1-22 | Plunger, Centrifugal Unloader | 30216113 |
| 1-23 | Spring, Centrifugal Unloader | 30416978 |
| 1-24 | Body Crankpin Cap | 30210447 |
| 1-25 | Rod Connecting | 32198160 |
| 1-26 | Wheel, V-Belt | 32177834 |
| 1-27 | Capscrew - Hex. Head | 95227302 |
| 1-28 | Capscrew - Hex. Head | 95079984 |
| 1-29 | Gasket, Copper Washer - 5/16 | 95674651 |
| 1-30 | Cover Assembly, Shaft End | 32183972 |
| 1-31 | Seal Oil | 32204570 |
| 1-32 | Cover Shaft End | NSS |
| 1-33 | Gasket, Shaft End Cover | 30280531 |
| 1-34 | Crankshaft - Complete With Bearings | 32203200 |
| 1-35 | Lockwasher, Spring 7/8" | 95043162 |
| 1-36 | Key Woodruff | 95433173 |
| 1-37 | Nut, V-Belt Wheel | 95098315 |
| 1-38 | Bushing Crankpin | 30210165 |
| 1-39 | Frame, Compressors | 32203192 |
| Detail A | ||
| 1-40 | Capscrew - Hex. | 95053070 |
| 1-41 | Lockwasher, Spring 1/4" | 32035479 |
| 1-42 | Baffle, Low Oil Level Switch | 32270654 |
| 1-43 | Switch, Low Oil Level - Optional | 70235262 |
| * 1-44 | Valve Check 1" | 30279392 |
