Description
Compressor Frame Assembly For Ingersoll Rand - Model 71T2
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Compressor Frame Assembly For Ingersoll Rand - Model 71T2 from India.
Product
- Page 1

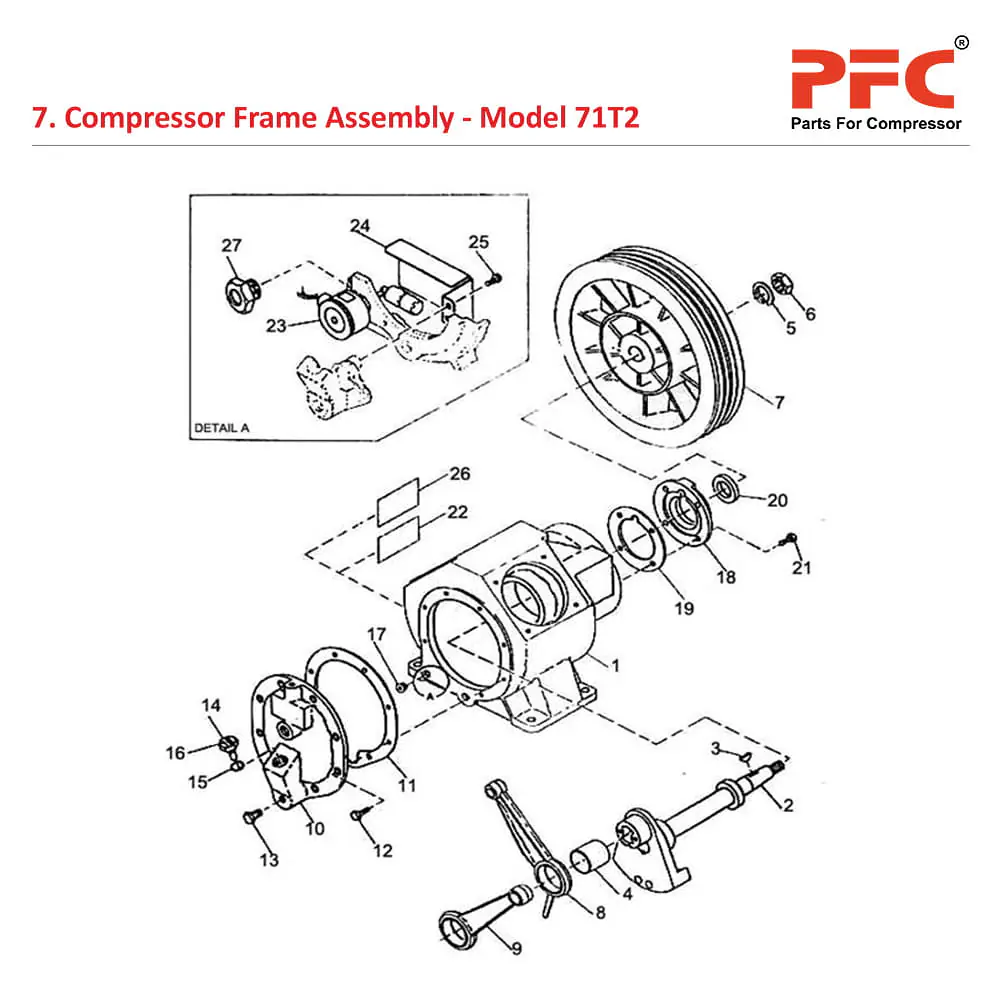

1. Compressor Frame Assembly
| Sr.No | Ref. Part Number | Alternate Part Number | Description |
| 7-1 | 30212997 | F5671 | Frame compressor |
| 7-2 | 30211627 | W75291T60 | Crankshaft complete |
| 7-3 | 95047437 | 23A9C810 | * Key woodruff |
| 7-4 | 37002375 | R47247 | * Bushing crankpin |
| 7-5 | 95324844 | 14A5C161 | * Washer lock |
| 7-6 | 30835698 | W21914 | * Nut belt wheel |
| 7-7 | 30285175 | H6317 | Wheel "V" Belt |
| 7-8 | 30217327 | R37139 | Rod HP Connecting |
| 7-9 | 32003659 | R22594 | Rod LP Connecting |
| 7-10 | 30944862 | W75292T50 | Cover frame end complete |
| 7-11 | 30439277 | R8342 | * Gasket frame end cover |
| 7-12 | 95251013 | 35A2C110N | Screw cap |
| 7-13 | 95033445 | 35A7B5 | Plug Hex head pipe |
| 7-14 | 30213094 | W75294T20 | Plug oil filler complete |
| 7-15 | 95018149 | 20A11CM212 | . "O" RING |
| 7-16 | 32000655 | W136037 | Decal oil plug |
| 7-17 | 95043238 | 31A7M5 | Plug countersunk 1/2 |
| 7-18 | 37004363 | W75293T52 | Cover shaft end complete |
| 7-19 | 30295166 | W21913 | * Gasket shaft end cover |
| 7-20 | 37007648 | W99622T5 | * Seal shaft oil |
| 7-21 | 95251013 | 35A2C110N | Screw cap |
| 7-22 | 35815802 | 35815802 | Decal danger |
| Optional -Used with Low Oil Level Shutdown Switch | |||
| 7-23 | 32001109 | H48165 | * Switch- Low Oil Level Shutdown |
| 7-24 | 30285548 | R40724 | * Baffle - Low Oil Level Switch |
| 7-25 | 95311650 | 35A2C1N | * Screw - Cap |
| 7-26 | 95203063 | 8A16X131 | * Decal - Low Oil Level Protection Switch |
| Optional - Used in Place of Low Oil Level Shutdown Switch | |||
| 7-27 | 37163334 | W114004 | Plug - Oil Level Sight |
