DESCRIPTION

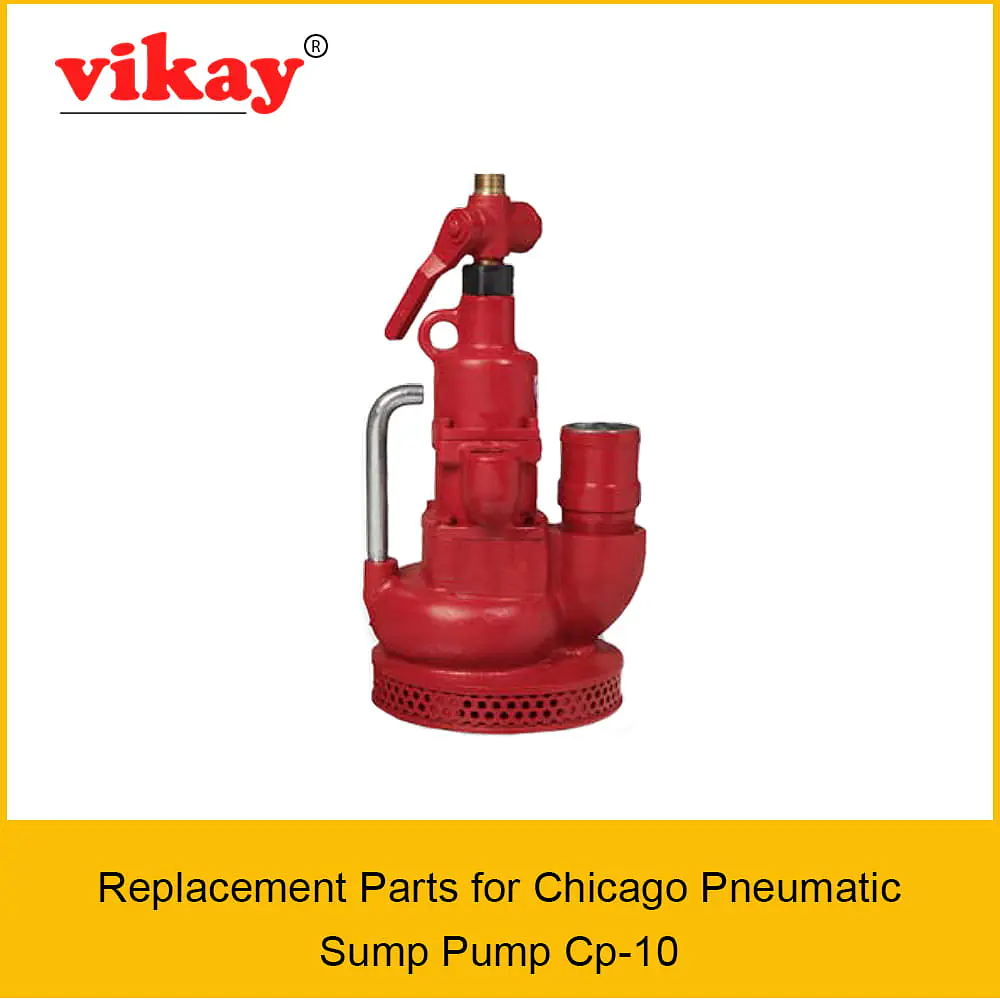

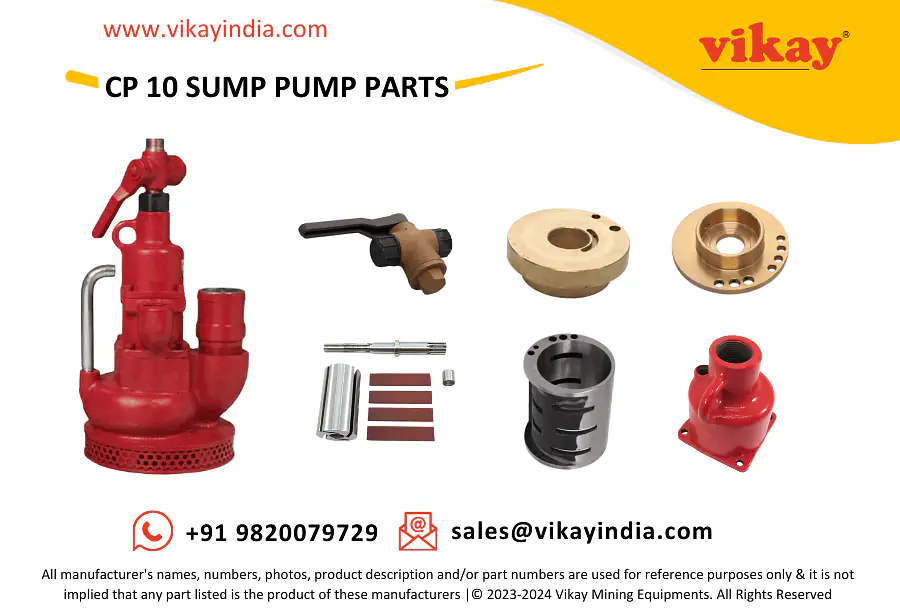

Cp-10 Sump Pump Chicago Pneumatic Replacement Parts
Vikay Mining Equipments is a global supplier of new aftermarket replacement parts for Chicago Pneumatic Sump Pump Cp-10 from India
Product
- Page 1
Sump Pump Cp-10
| Sr. No | Description | Ref. Part No. | |
| 1 | Valve (3/4" male) | R137313 | |
| 2 | Ring - Retainer | C090746 | |
| 3 | Filter - Screen | C078057 | |
| 4 | Air inlet bushing | C113782 | |
| 5 | O-ring | C046471 | |
| 6 | Housing - Governor | C113799 | |
| 7 | Plug - Oil | C085233 | |
| 8 | O-ring | A082777 | |
| 9 | Screw - Cap (Allen) (1/4" - 20 x 3/4") | C064806 | |
| 10 | Lock washer (1/4") | C012058 | |
| 11 | Wick | C113787 | |
| 12 | Plug - Orifice | C113789 | |
| 13 | Gasket - Housing | C113791 | |
| 14 | Ring - Retainer | S087190 | |
| 15 | Retainer - Spring | C113780 | |
| 16 | Spring - Compression | C113779 | |
| 17 | Valve - Governor | C090935 | |
| 18 | Pin - Governor valve | C084364 | |
| 19 | Cage - Governor | C113798 | |
| 20 | Governor body complete (Includes item | Z8769462 | |
| No. 21, 22, 23, 24, 25, 26 & 27) | |||
| 21 | Pin - Governor weight | -- | |
| 22 | Button - Push pin | -- | |
| 23 | Ring - Retaining | -- | |
| 24 | Pin - Governor push | -- | |
| 25 | Weight - Governor | -- | |
| 26 | Body - Governor | -- | |
| 27 | Retainer - Pin | -- | |
| 28 | Bearing - Ball | S014490 | |
| 29 | Washer - Tension | C089794 | |
| 30 | Shim - Motor | C113786 | |
| 31 | End plate - Upper | C089790 | |
| 32 | Rotor complete | Z8770462 | |
| (Includes item No.33, 34 & 35) | |||
| 33 | Sleeve - Rotor | C089779 | |
| 34 | Body - Rotor | ||
| 35 | Blade - Rotor | C092050 | |
| 36 | Shaft - Rotor | C113797 | |
| 37 | Pin - Roll (.156" x 9/16" Lg.) | P056138 | |
| 38 | Liner - Motor | C092047 | |
| 39 | Pin - Roll (.156" x 1" Lg.) | C088617 | |
| 40 | Plate - Lower end | C113795 | |
| 41 | Bearing ball | S039951 | |
| 42 | Housing - motor | ||
| 43 | Plug - Pipe (1/8") | C035390 | |
| 44 | Screw cap | P070423 | |
| 45 | Lock washer | C011005 | |
| 46 | O Ring | CA087468 | |
| 47 | Seal - Shaft | C113792 | |
| 48 | Plate - Wear (Upper) | C113783 | |
| 49 | Screw - Flat head | C113793 | |
| 50 | Sleeve - Impeller | C113790 | |
| 51 | Impeller - Pump | F814673 | |
| 52 | Spacer (Retaining) | C113785 | |
| 53 | Bolt - Hex. (Long lok) (5/16" - 18 x 5/8") | C113788 | |
| 54 | Plate - Wear (Lower) | F814672 | |
| 55 | Shim (Wear plate) (.005") | C115755 | |
| 56 | Shim (Wear plate) (.003") | F814688 | |
| 57 | Impeller housing complete | ||
| (Includes item No. 58 & 59 ) | |||
| 58 | Housing - Pump | ||
| 59 | Screen - Sump | C113794 | |
| 60 | Nipple - Outlet | R137579 | |
| 61 | Handle - Pump | C085347 | |
| 62 | Pipe - Exhaust (1" NPT 1" BSP) | R137578 | |
| 63 | Pipe - Exhaust (NPTF) | S038723 |
