High Pressure Valve Assembly For Ingersoll Rand Type 30 - Model 2540
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - High Pressure Valve Assembly For Ingersoll Rand Type 30 - Model 2540 from India.
Product
- Page 1

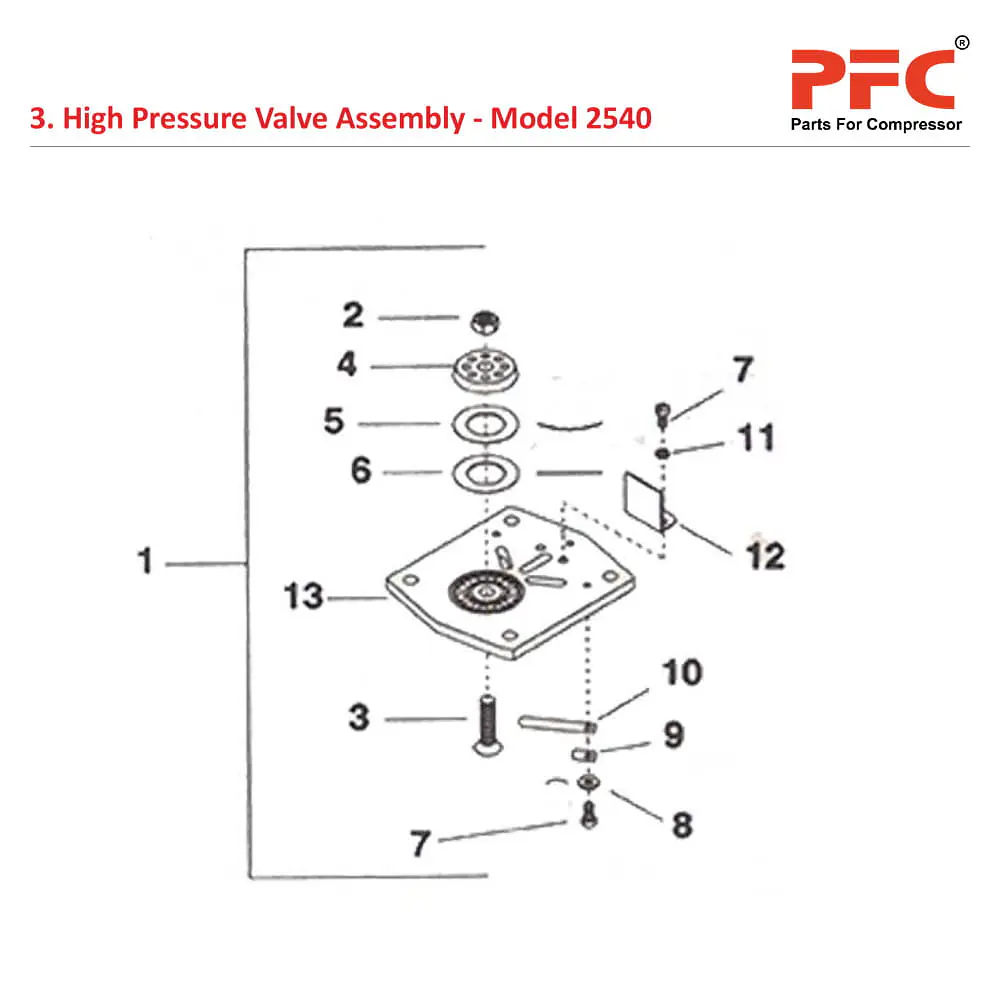

High Pressure Valve Assembly
| Ref. No. | Part No. | Description |
| Figure 3. High Pressure Valve Assembly | ||
| 3-1 | Assembly, Valve High Pressure | 32229817 |
| 3-2 | Nut Whiz Lock 7/16-14 Hex | 97166946 |
| 3-3 | Bolt, Discharge Valve | 32223927 |
| 3-4 | Plate, Stop | 32176703 |
| 3-5 | Spring, Discharge Valve | 30221576 |
| 3-6 | Plate, Discharge Valve | 30215941 |
| 3-7 | Screw, Fillister Head -1/4-20 X 3/8" | 32035511 |
| 3-8 | Washer, Belleville - 1/4" | 32217382 |
| 3-9 | Retainer, Finger Valve | 32228306 |
| 3-10 | Valve Finger | 30220115 |
| 3-11 | Lockwasher - Spring 1/4" | 32035479 |
| 3-12 | Diffuser | 32224156 |
| 3-13 | Plate, Seat - High Pressure | 32228363 |
