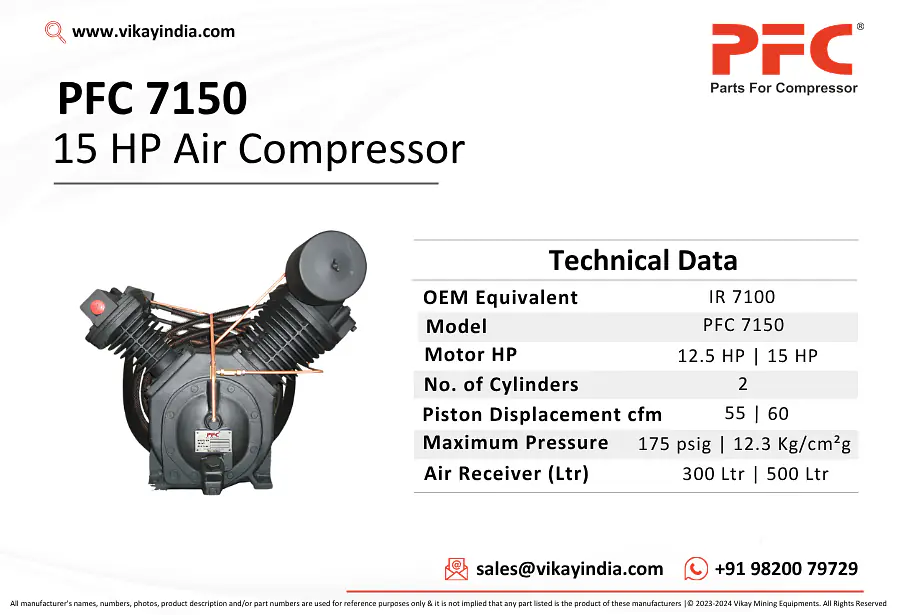

15 HP Two Stage Bare Air Compressor Pumps Model VK 7150
PFC Parts for Compressor is a global supplier of 15 HP Two Stage Reciprocating Bare Air Compressor Pumps Model VK 7150 from India
The Two stage Bare Reciprocating compressor Pumps are rugged packages for use either as a total air system for small industrial installations or a backup system in major installation. These compressors are used where the pressure requirement is more than 7kg / cm2 & up to 14kg/ cm2 maximum air pressure.
Technical Details
| Model | VK 7150 |
| Motor hp | 12.5 | 15 |
| No. of Cylinders | 2 |
| Piston Displacement cfm | 55 | 60 |
| Maximum Pressure | 175psig | 12.3Kg/cm²g |
| Air Receiver (Ltr) | 300 | 500 |
Scope of Supply
Bare Pump (Compressor / Vacuum Pumps) with Flywheel, without any Accessories.
# Parts are interchangeable IR Type 30 Model 7100
Since approvement are made from time to time, the illustration and specifications are subject to change without notice
