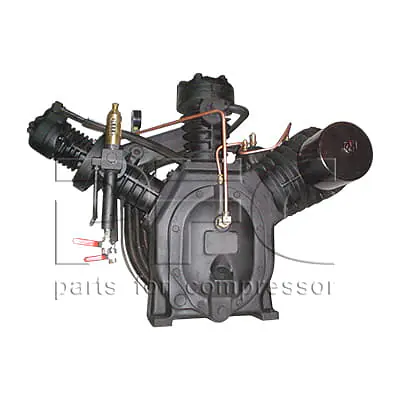

15 HP Multi Stage Bare Air Compressor Pumps Model VK 65T2
PFC Parts for Compressor is a global supplier of 15 HP Multi Stage High Pressure Reciprocating Bare Air Compressor Pumps , Model VK 65T2 from India
Multi stage high pressure reciprocating Bare air compressor Pumps are designed for high pressure operations up to 70kg / cm2. These air compressors frames have large oil capacity to assure low bearing temperatures & adequate lubrication for long periods. These all air compressors are having centrifugal unloader to prevent starting under load.

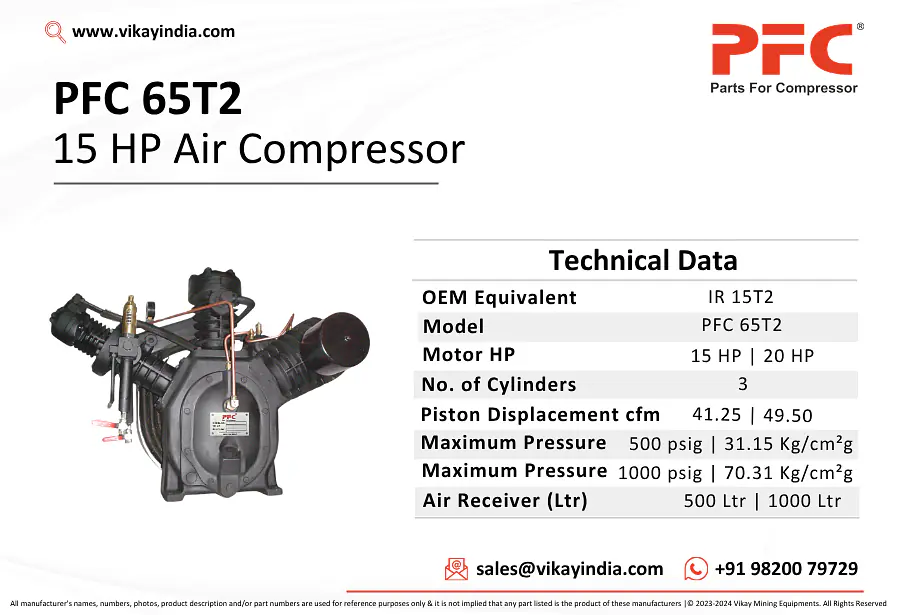

Technical Data
| Model | VK 65T2 |
| Motor hp | 15.00 | 20.00 |
| No. of Cylinders | 3 |
| Piston Displacement cfm | 41.25 | 49.50 |
| Maximum Pressure | 500psig | 31.15Kg/cm²g |
| Maximum Pressure | 1000psig | 70.31Kg/cm²g |
| Air Receiver (Ltr) | 500 | 1000 |
Scope of Supply
Bare Pump (Compressor / Vacuum Pumps) with Flywheel, without any Accessories.
# Parts are interchangeable IR Type 30 Model 15T2
Since approvement are made from time to time, the illustration and specifications are subject to change without notice
