2 HP Air Compressor Pump

availability: This product is not available in the selected currency.

  • Nothing

Description

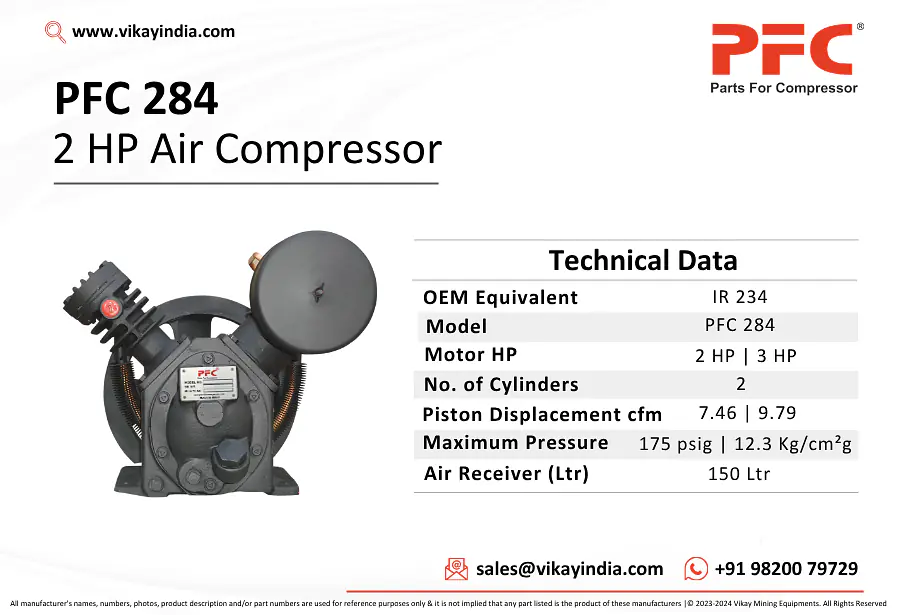

2 HP Two Stage Bare Air Compressor Pumps Model VK 284

PFC Parts for Compressor is a global supplier of 2 HP or 3 HP Two Stage Reciprocating Bare Air Compressor Pumps Model VK 284, from India

The Two stage Reciprocating Bare Compressor Pumps are rugged packages for use either as a total air system for small industrial installations or a backup system in major installation. These Compressor Pumps are used where the pressure requirement is more than 7kg / cm2 & up to 14kg/ cm2 maximum air pressure.

Model VK 284
Motor hp 2/3
No. of Cylinders 2
Piston Displacement cfm 7.46/9.79
Maximum Pressure 175psig  | 12.3Kg/cm²g
Air Receiver (Ltr) 150

Scope of Supply
Bare Pump (Compressor / Vacuum Pumps) with Flywheel, without any Accessories.

# Parts are interchangeable IR Type 30 Model 234

Since approvement are made from time to time, the illustration and specifications are subject to change without notice
