DESCRIPTION
20 GA & 50 GA Concentric Ring Valve Assembly For Ingersoll Rand Type 30 - Model 7T2
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - 20 GA & 50 GA Concentric Ring Valve Assembly For Ingersoll Rand Type 30 - Model 7T2 from India.

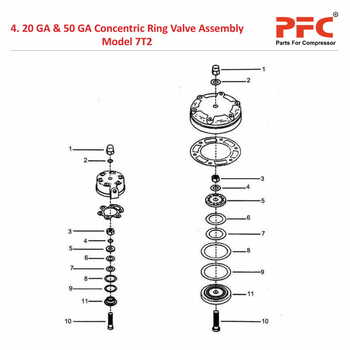

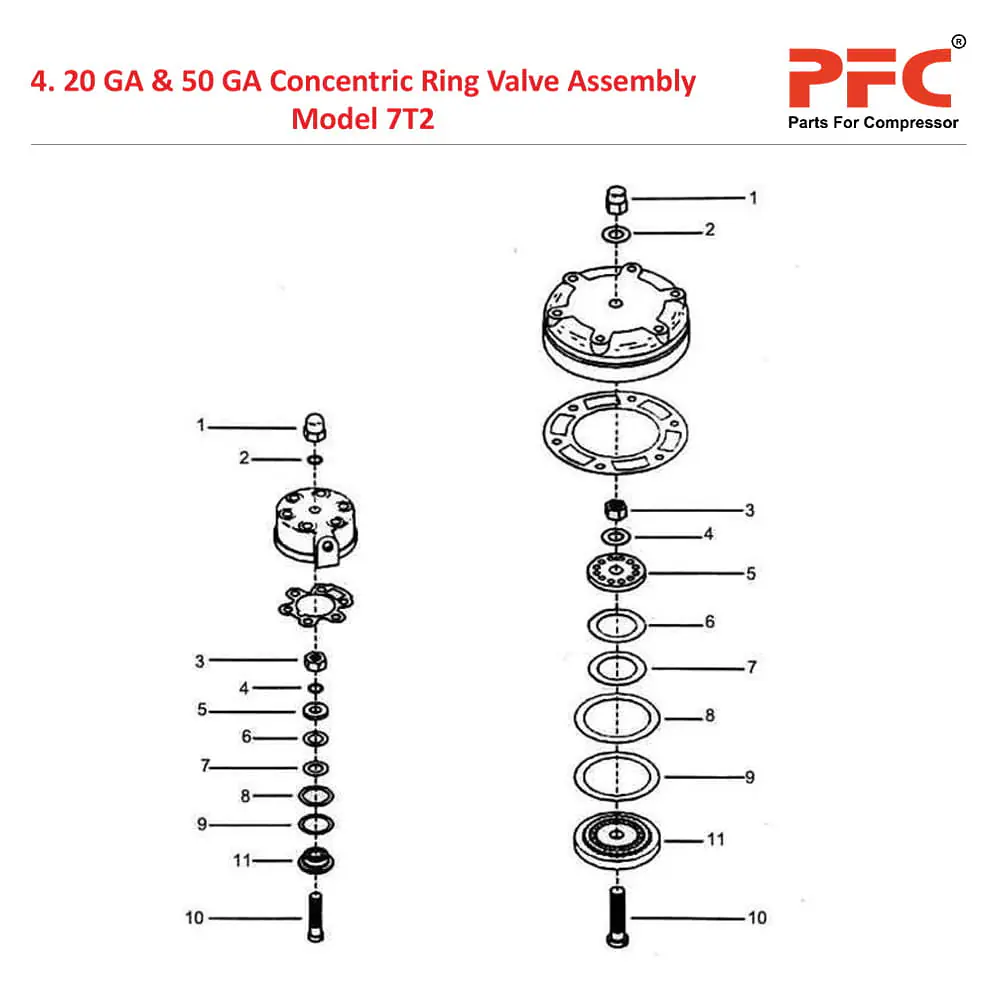

20 GA & 50 GA Concentric Ring Valve Assembly
| Sr.No | Ref. Part Number | Description | Qty |
| 4-00A | 31517725 | Air Valve Assembly 2" | 1 |
| 4-01A | 30287643 | – Nut Hex Acron 5/8 - UNF | 1 |
| 4-02A | 37092913 | – Washer Belleville 5/8" | 1 |
| 4-03A | 95076808 | – Nut Hex Lock 5/8" | 1 |
| 4-04A | 37092913 | – Washer Belleville 5/8 | 1 |
| 4-05A | 30218945 | – Stop Plate (IN/DIS) | 1 |
| 4-06A | 30221584 | – Spring Valve (IN/DIS) | 1 |
| 4-07A | 30215925 | – Plate Valve (IN/DIS) | 1 |
| 4-08A | 30215834 | – Plate Valve Inlet | 1 |
| 4-09A | 30221493 | – Spring Valve (IN/DIS) 15/8" | 1 |
| 4-10A | 30220941 | – Bolt Valve 1-5/8" | 1 |
| 4-11A | 30217657 | – Seat Valve (IN/DIS) 1-5/8" | 1 |
| 4-01B | 37004843 | Valve Assembly Size 50 | 1 |
| 4-01B | 30287650 | – Nut Hex Acron 3/4 - UNF | 1 |
| 4-02B | 37092897 | – Washer Belleville 3/4 | 1 |
| 4-03B | 95076816 | – Nut Hex Lock 3/4" | 1 |
| 4-04B | 37092897 | – Washer Belleville 3/4" | 1 |
| 4-05B | 30218978 | – Stop Plate (IN/DIS) | 1 |
| 4-06B | 30221501 | – Spring Valve (IN/DIS) | 1 |
| 4-07B | 30181499 | – Plate Valve (IN/DIS) | 1 |
| 4-08B | 30215891 | – Plate Valve Inlet | 1 |
| 4-09B | 30221550 | – Spring Valve (IN/DIS) 15/8" | 1 |
| 4-10B | 30279897 | – Bolt Valve 5" | 1 |
| 4-11B | 30229538 | – Seat Valve (IN/DIS) 5" | 1 |
