20 GA Valve IR 15T2 Air Compressor Parts
Regular price
₹0.00
DESCRIPTION
20 GA Valve Assembly For Ingersoll Rand Type 30 - Model 15T2
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - 20 GA Valve Assembly For Ingersoll Rand Type 30 - Model 15T2 from India.
Product
- Page 1

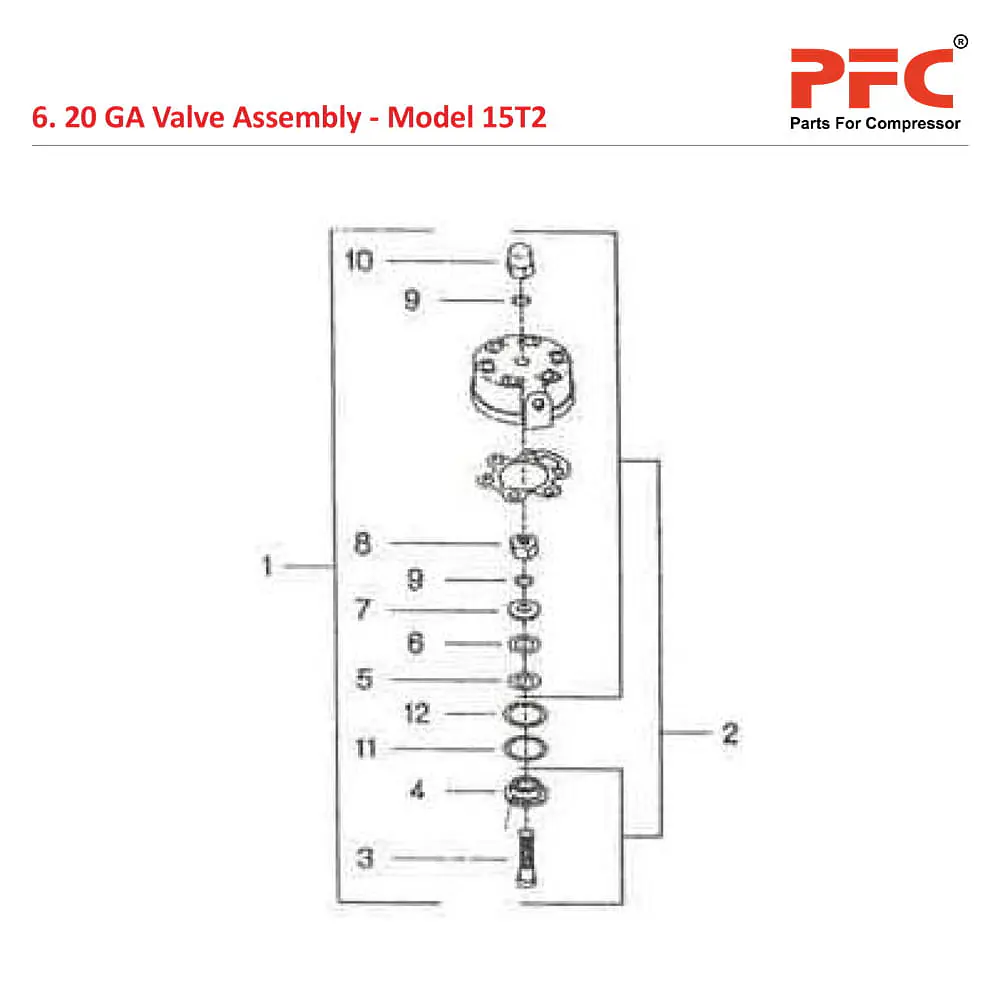

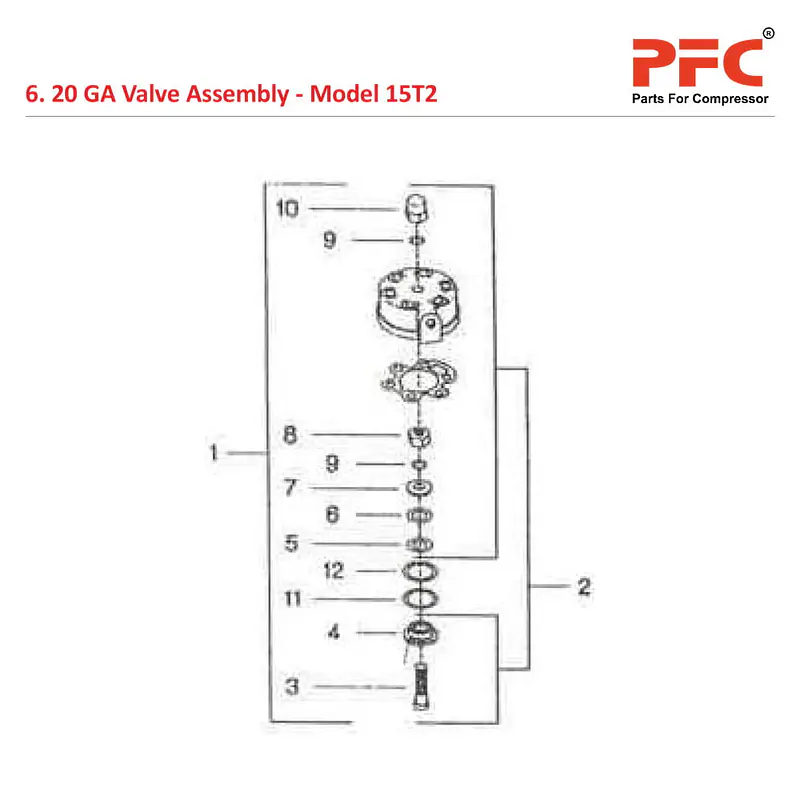

1. 20 GA Valve Assembly
| Sr.No | Ref. Part Number | Description |
| 7-1 | 31517725 | Valve, 20 GA - Complete |
| 7-2 | 32156697 | Valve, Assembly |
| 7-3 | 30220941 | Bolt, Valve |
| 7-4 | 30217657 | Seat, Valve Discharge |
| 7-5 | 30215925 | Plate, Valve Discharge |
| 7-6 | 30221584 | Spring, Valve Discharge |
| 7-7 | 30218945 | Plate, Stop - Discharge |
| 7-8 | 95076808 | Nut, Hex 5/6 - 18 |
| 7-9 | 39092913 | Washer, Belleville - 5/8 |
| 7-10 | 30287643 | Nut, Acorn - 5/8 -18 |
| 7-11 | 30221493 | Spring, Valve - Inlet |
| 7-12 | 30215834 | Plate, Valve - Inlet |
