DESCRIPTION
Second Stage Valve Plate Assembly For Ingersoll Rand Type 30 - Model 3000
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Second Stage Valve Plate Assembly For Ingersoll Rand Type 30 - Model 3000 from India.

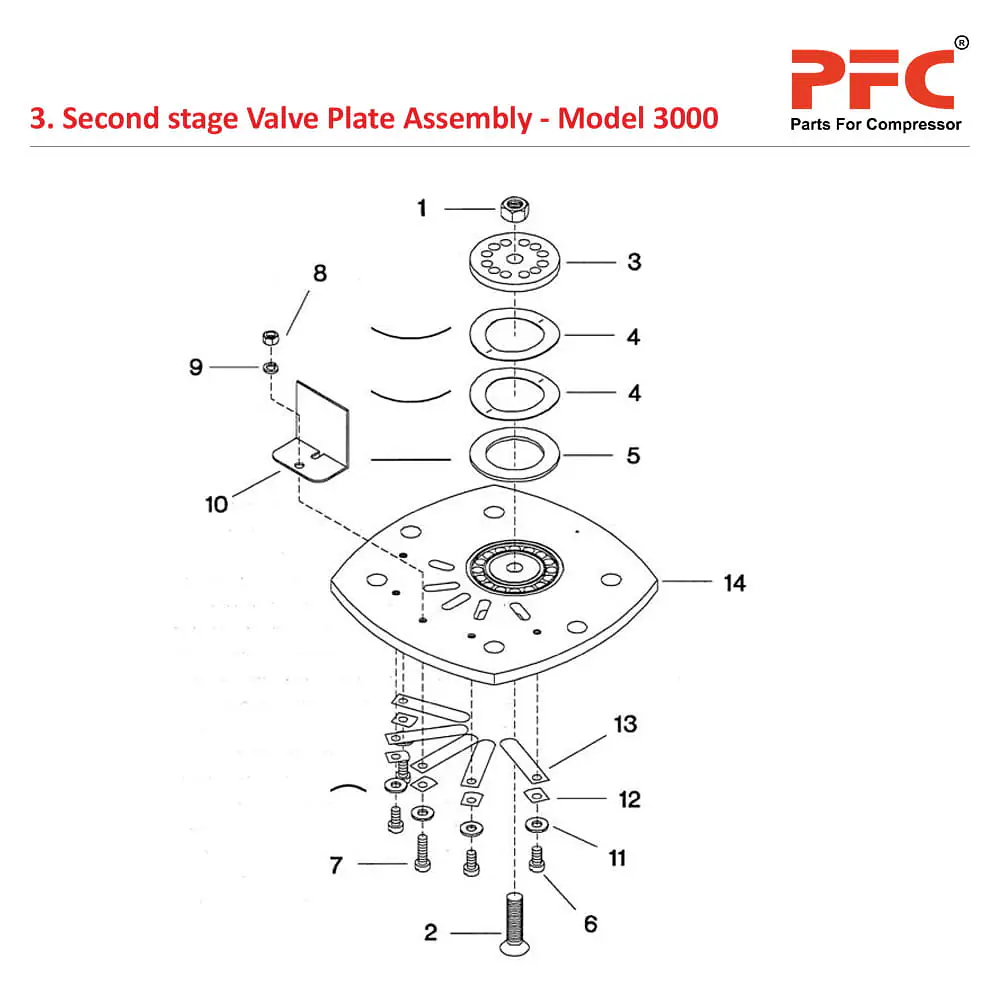

Second Stage Valve Plate Assembly
| Sr.No | Ref. Part Number | Description | Qty |
| REF | 32228322 | Assembly, Second Stage Valve Plate | 1 |
| 3-1 | 97166946 | – Nut, Whiz-Lock - 7/16-14 Hex | 1 |
| 3-2 | 32223927 | – Bolt, Valve | 1 |
| 3-3 | 32228264 | – Plate, Stop - Discharge | 1 |
| 3-4 | 30221394 | – Spring, Valve - Discharge | 2 |
| 3-5 | 30215917 | – Plate, Valve - Discharge | 1 |
| 3-6 | 32035511 | – Screw, Fillister Head -1/4-20 X 3/8" | 4 |
| 3-7 | 32224008 | – Screw, Machine - Fillister Head - 1/4-20 X 3/4" | 1 |
| 3-8 | 95416335 | – Nut, Hex -1/4-20 | 1 |
| 3-9 | 32035479 | – Lockwasher, Spring -1/4" | 1 |
| 3-10 | 32223919 | – Diffuser, Valve Plate | 1 |
| 3-11 | 32217382 | – Washer, Belleville -1/4" | 5 |
| 3-12 | 32228306 | – Retainer, Finger Valve | 5 |
| 3-13 | 30220115 | – Valve, Finger | 5 |
| 3-14 | 32228256 | – Plate, Valve Seat | 1 |
