Description
Second Stage (3") Piston, Cylinder & Crosshead For Ingersoll Rand Type 30 - Model 5T2NL
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts - Second Stage (3") Piston, Cylinder & Crosshead For Ingersoll Rand Type 30 - Model 5T2NL from India.
Product
- Page 1

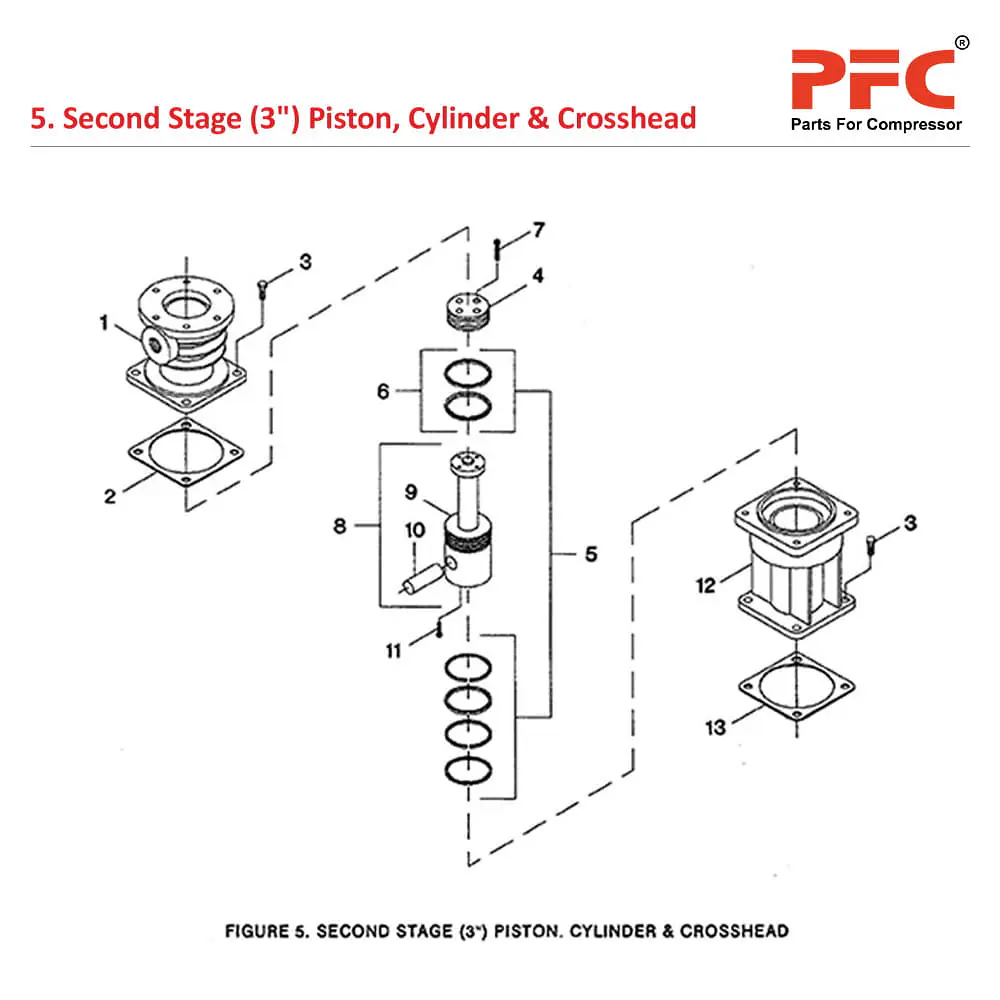

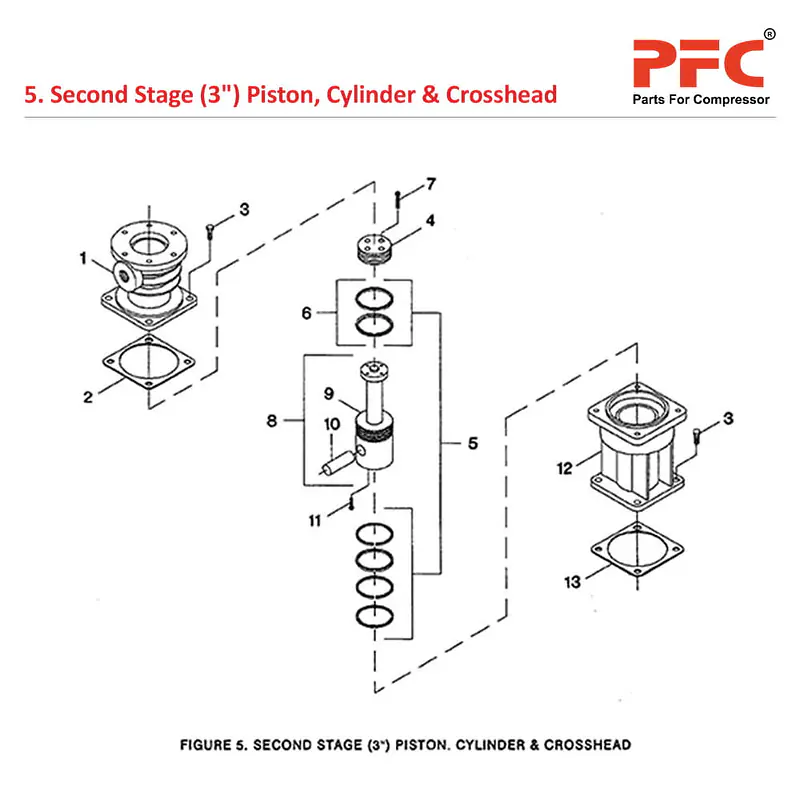

Second Stage (3") Piston, Cylinder & Crosshead
| Ref. No. | Part No. | Description |
| 5-1 | 32222309 | Cylinder, Air - 3' - High Pressure |
| 5-2 | 37135985 | Gasket, Flange |
| 5-3 | 32225195 | Capscrew - M12 X 30 |
| 5-4 | 32014102 | Piston |
| 5-5 | 32015117 | Set, Ring |
| 5-6 | 37196490 | Set, Piston Ring |
| 5-7 | 32225161 | Screw, Socket Head - M6 X 30 |
| 5-8 | 32222796 | Assembly, Crosshead/Pin |
| 5-9 | NSS | Crosshead |
| 5-10 | 37170271 | Pin, Crosshead |
| 5-11 | 32225211 | Setscrew - M10 X 25 |
| 5-12 | 32222325 | Guide, Crosshead |
| 5-13 | 30294201 | Gasket, Flange |
Details
- type: product
- SKU: 5T2NL05
