32 mm Drill Steel Support Comp.
This product is not available in the selected currency.
In Stock
Backordered
Out of Stock
Description
Drill Steel Support Comp. 32 mm With Plate and Bolt Replacement
Vikay is a global supplier of new aftermarket replacement parts - Drill Steel Support Comp. 32 mm With Plate and Bolt Replacement for Atlas Copco Wagon Drill Bvb-25 from India.
Product
- Page 1

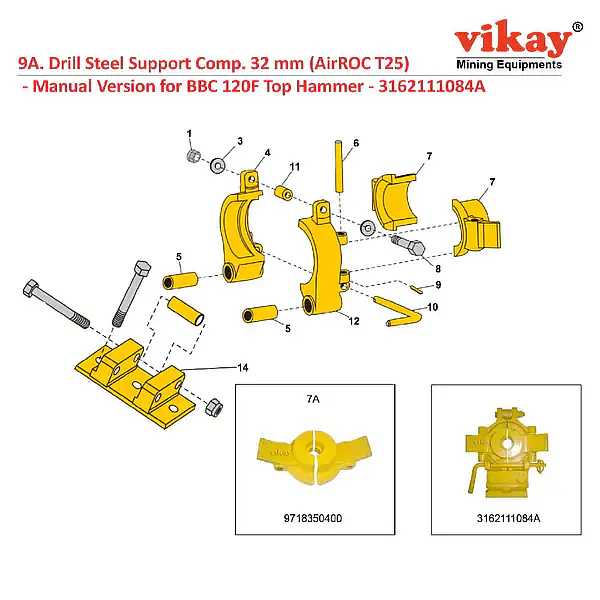

Drill Steel Support Comp. 32 mm With Plate and Bolt Replacement
| No. | Description | Modified | - | Ref. Part No. | QTY |
| - | Drill Steel Support Comp. With Plate & Bolt (32mm) - Bbc-120F | - | - | 3162111084A | 1 |
| 1 | - Nut (Modified) | - | * | M100190 | 1 |
| 3 | - Washer | - | - | 3161014300 | 1 |
| 4 | -- Support Right | - | - | - | 1 |
| 5 | - Bushing | - | - | 3162104800 | 2 |
| 6 | - Shaft | - | - | 3162105400 | 2 |
| 7A | - Insert For 32mm (1 1/4") | - | - | 9718350400 | 2 |
| 8 | - Screw | - | - | 0147148900 | 1 |
| 9 | - Spring Pin | - | - | 0108130100 | 2 |
| 10 | - Locking Rod Complete (Modified) | - | * | M100198 | 1 |
| 11 | - Bushing | - | - | 3162111700 | 1 |
| 12 | -- Support Left | - | - | - | 1 |
| 13A | " Drill Still Support - 32mm (1 1/4") | - | - | 3162111084 | 1 |
| 14 | - Drill Tube Support Attachment (See Page No. 25) | - | - | - | 1 |
Details
- type: product
- SKU: BVB2508A
