DESCRIPTION
5" Piston, Cylinder & Crosshead For Ingersoll Rand Type 30 - Model 10T3NLM
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts - 5" Piston, Cylinder & Crosshead For Ingersoll Rand Type 30 - Model 10T3NLM from India.

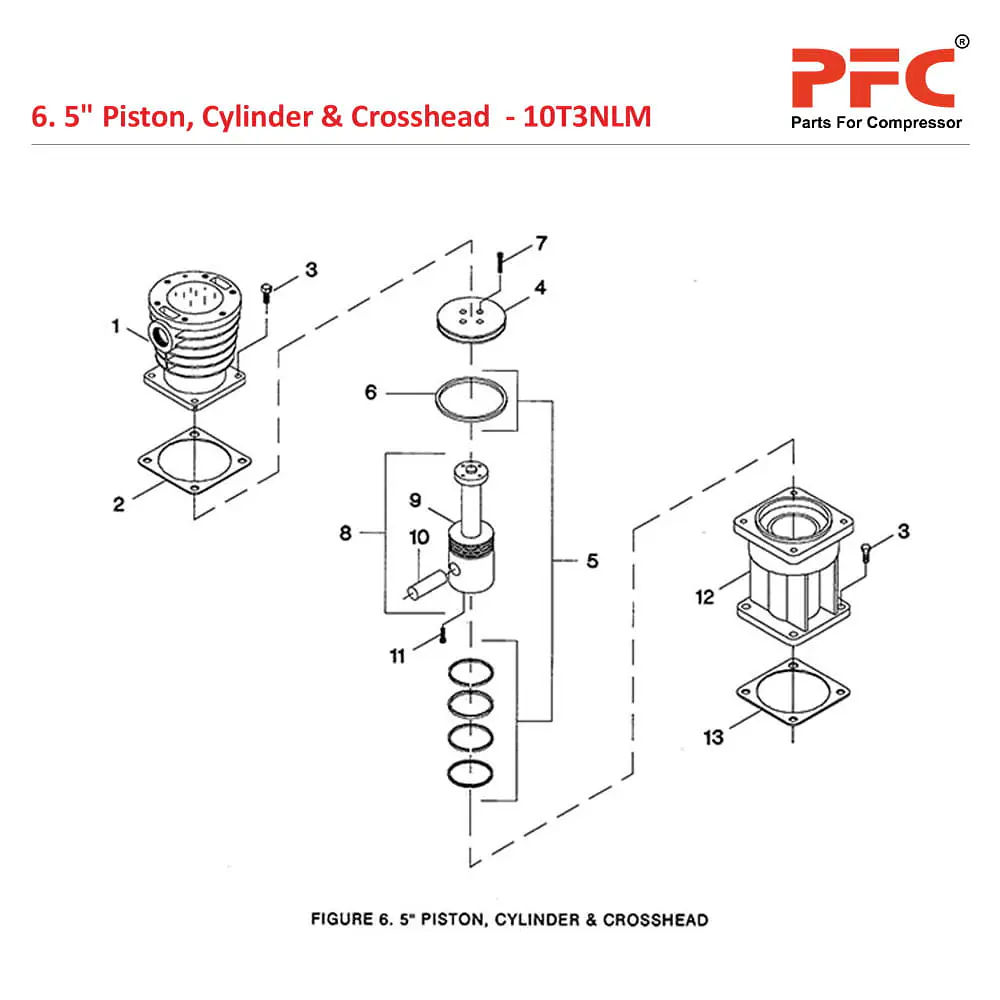

5" Piston, Cylinder & Crosshead
| REF. NBR. | PART NO. | DESCRIPTION | UNITS PER ASSY. |
| 6-1 | 32222416 | Cylinder, Air - 5" - High Pressure | 2 |
| 6-2 | 37135985 | Gasket, Flange | 2 |
| 6-3 | 32225195 | Capscrew - M12 X 30 | 16 |
| 6-4 | 37140043 | Top, Piston | 2 |
| 6-5 | 32015109 | Set, Ring | 2 |
| 6-6 | 37197993 | – Ring, Piston - Step Seal | 1 |
| 6-7 | 32225153 | Screw, Socket Head - M6 X 15 | 8 |
| 6-8 | 32222796 | Assembly, Crosshead/Pin | 2 |
| 6-9 | NSS | – Crosshead | 1 |
| 6-10 | 37170271 | – Pin, Crosshead | 1 |
| 6-11 | 32225211 | Setscrew - M10 X 25 | 2 |
| 6-12 | 32222325 | Guide, Crosshead | 2 |
| 6-13 | 30294201 | Gasket, Flange | 2 |
