DESCRIPTION
55 GA Valve Assembly For Ingersoll Rand Type 30 - Model 15T2
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - 55 GA Valve Assembly For Ingersoll Rand Type 30 - Model 15T2 from India.

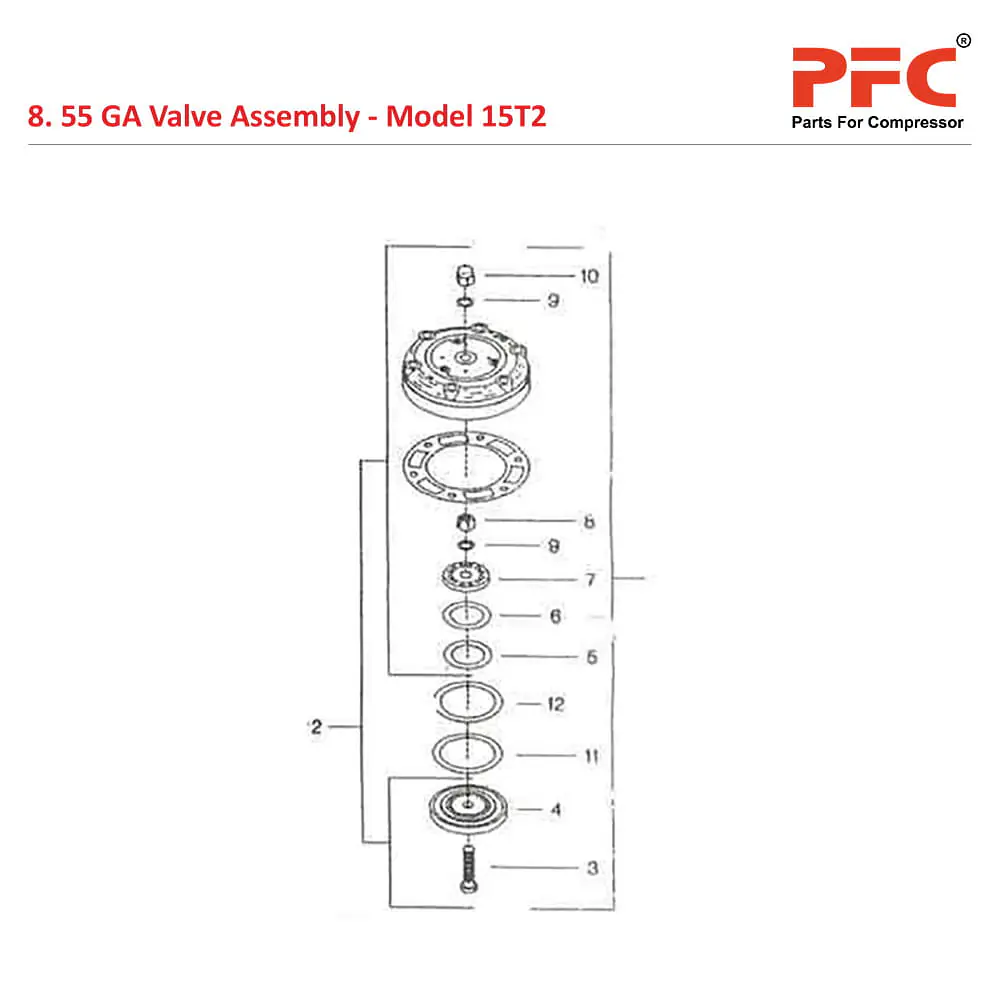

55 GA Valve Assembly
| Sr.No | Ref. Part Number | Description | Qty |
| 9-1 | 37101946 | Valve, 55GA - Complete | 1 |
| 9-2 | 32156747 | – Valve, Assembly | 1 |
| 9-3 | 30279897 | – – Bolt, Valve | 1 |
| 9-4 | 30217673 | – – Seat, Valve Discharge | 1 |
| 9-5 | 30181499 | – – Plate, Valve Discharge | 1 |
| 9-6 | 30221501 | – – Spring, Valve Dischage | 1 |
| 9-7 | 30218978 | – – Plate, Stop - Discharge | 1 |
| 9-8 | 95076816 | – – Nut, Hex 3/4 - 16 | 1 |
| 9-9 | 37092897 | – – Washer, Belleville - 3/4 WE | 2 |
| 9-10 | 30287650 | – – Nut, Acorn - 3/4 -16 | 1 |
| 9-11 | 30221550 | – Spring, Valve - Inlet | 1 |
| 9-12 | 30215891 | – Plate, Valve - Inlet | 1 |
