8" DTH Hammers - VD80S x 177

₹0.00

Pinch to
zoom

Quantity

DESCRIPTION

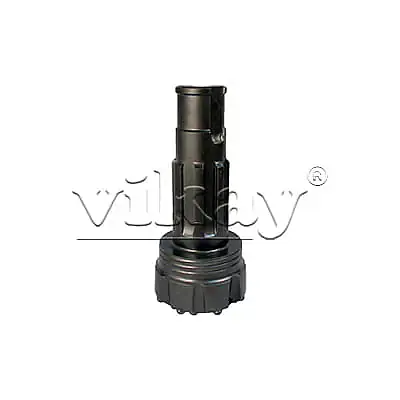

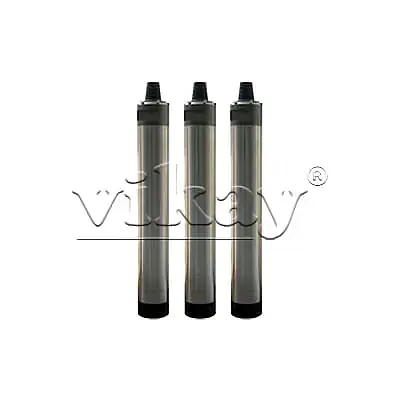

8" High Pressure DTH Hammer - VD80S x 177

Vikay is a global supplier of 8" High Pressure DTH Hammer Model VD80S x 177 from India.

 View PDF

Technical Details

ModelVD80S x 177
Outer Diameter177mm  (6.96")
Hammer Length1200mm (47.25")
Hammer Weight148kg  (328 lbs)
Coupler Thread Size     4 1/2 API | Reg Pin

 Air Consumption, cmf

150psi  250psi  350psi
5259801550

 Air Consumption, m3/min

10 bar  18 bar  24 bar
152844



Bit Shank
SD-6
No Foot Valve Required
Suitable Bit Size
8" To And Above

Since aprovement are made from time to time, the illustration and specifications are subject to change without notice
