Air Control Bucket 5032015586 Replacement
Regular price
₹0.00
DESCRIPTION

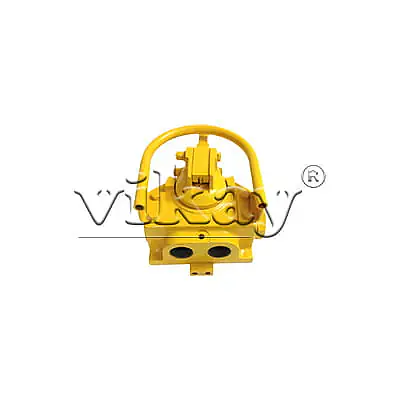

Air Control Bucket 5032015586 Replacement
Vikay is a global supplier of new aftermarket replacement parts - Air Control Bucket 5032015586 for Atlas Copco Mucking Loader Cavo-310 from India
Product
Air Control Bucket

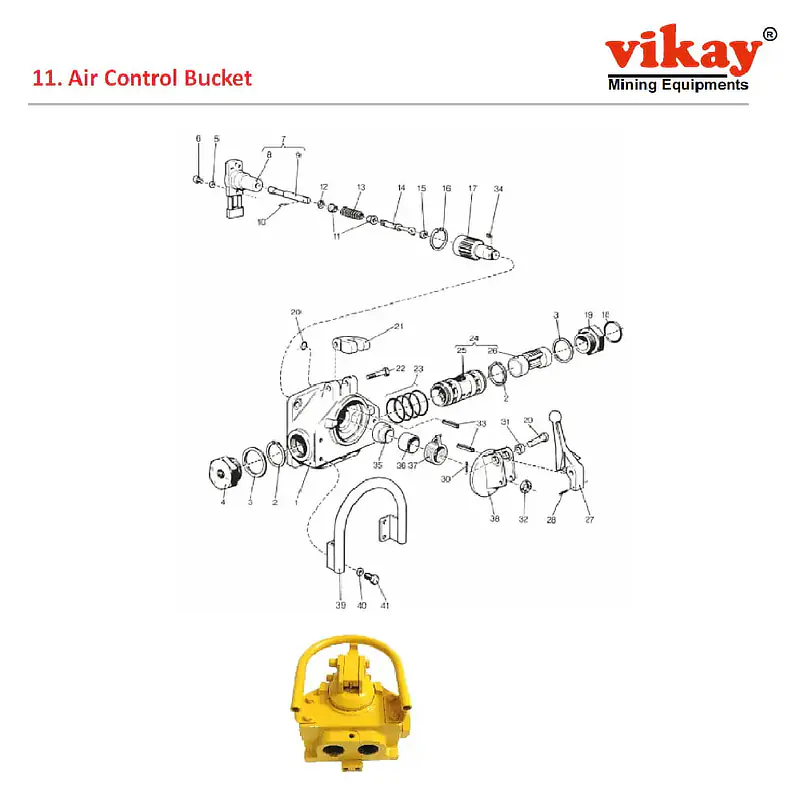

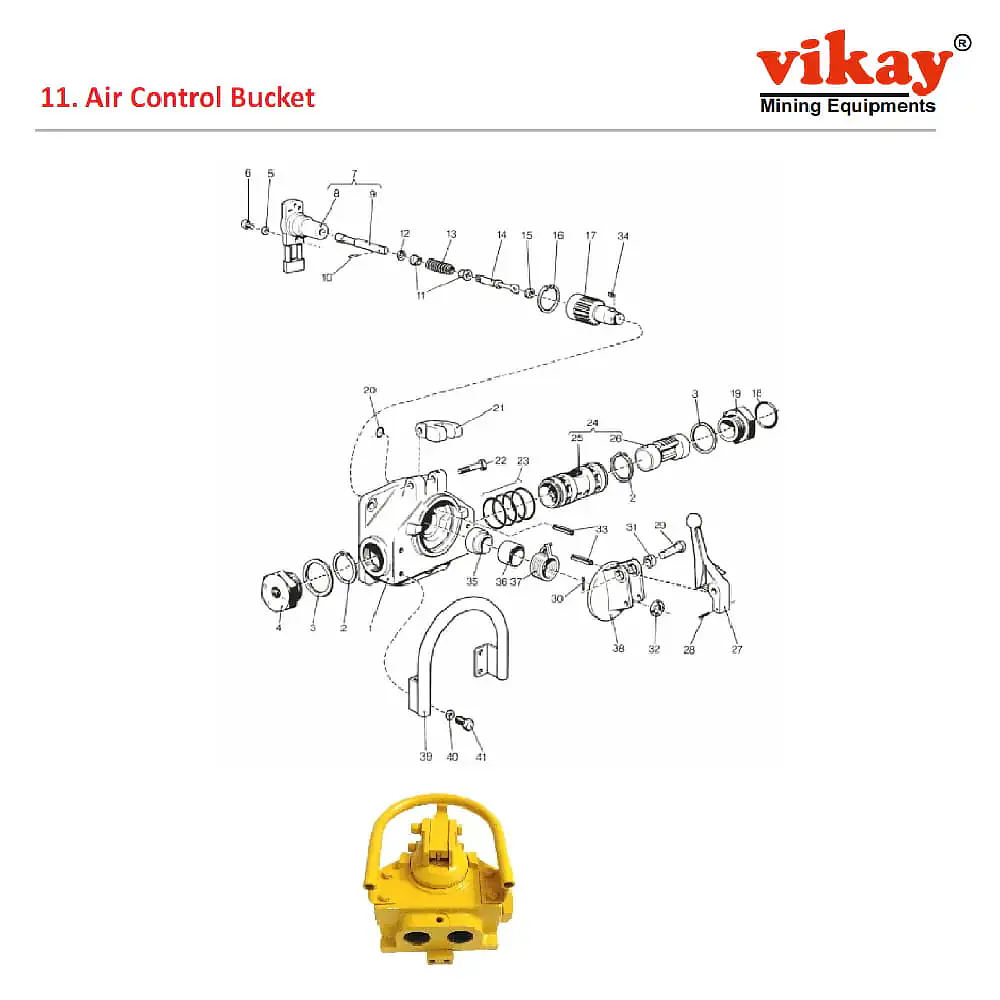

| No. | Description | Modified | Ref. Part No. | ||
| - | Air Control Bucket Complete | 5032015586 | |||
| 1 | - Valve Housing (Not Delivered Separately) | 5032015501 | |||
| 2 | - Circlip | 0335114600 | |||
| 3 | - Gasket | 0657586400 | |||
| 4 | - Plug | 5112095500 | |||
| 5 | - Spring Washer | 0333212500 | |||
| 6 | - Screw | 0211132200 | |||
| 7 | - Valve Casing Complete | 5031023080 | |||
| 8 | - - Valve Casing | - | |||
| 9 | - - Main Valve | - | |||
| 10 | - Pin | 0108129200 | |||
| 11 | - Spacer | 5032015200 | |||
| 12 | - Circlip | 0335212500 | |||
| 13 | - Spring | 5032015400 | |||
| 14 | - Swivel Rod | 5032015000 | |||
| 15 | - Felt Ring | 5032015100 | |||
| 16 | - Circlip Int. | 0335214600 | |||
| 17 | - Pinion | 5032015300 | * | M10391 | |
| 18 | - O Ring | 0663213600 | |||
| 19 | - Adapter | 5032016500 | |||
| 20 | - O Ring | 0663212000 | |||
| 21 | - Locking Clamp for Bucket Motor | 5032031600 | * | M10367B | |
| 22 | - Bolt | 5032027900 | * | M10396 | |
| 23 | - O Ring | 0663613500 | |||
| 24 | - Valve with bushing | 5032014680 | |||
| 25 | - - Bushing (Not Delivered Separately) | - | |||
| 26 | - - Valve (Not Delivered Separately) | - | |||
| 27 | - Lever Complete | 5032031500 | |||
| 28 | - Pin | 0108132700 | |||
| 29 | - Bolt | 0113225500 | * | M10403 | |
| 30 | - Split Pin | 0111130500 | |||
| 31 | - Bushing | 5032016000 | |||
| 32 | - Nut | 0295310500 | |||
| 33 | - Pin | 0108136200 | |||
| 34 | - Key | 0337255700 | |||
| 35 | - Bushing | 5032014900 | |||
| 36 | - Sleeve | 5032014800 | |||
| 37 | - Spring | 5032014700 | |||
| 38 | - Cover | 5032016100 | |||
| 39 | - Hand Support | 5032015600 | |||
| 40 | - Spring Washer | 0333213600 | |||
| 41 | - Screw | 0147139900 |
