DESCRIPTION
Air Control Traction Left Replacement
Vikay is a global supplier of new aftermarket replacement parts - Air Control Traction Left for Atlas Copco Mucking Loader Cavo-310 from India.
Product
- Page 1

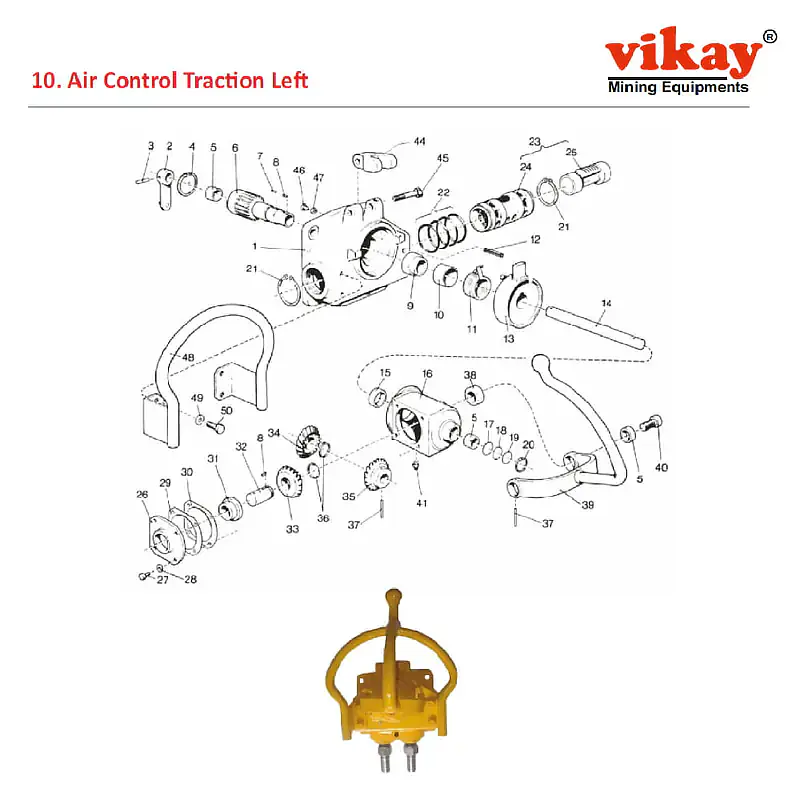

Air Control Traction Left
| No. | Description | Modified | Ref. Part No. | ||
| - | Air Control left Complete | 5032015584 | |||
| 1 | - Valve Housing (Not Delivered Separately) | 5032015501 | |||
| 2 | - Lever | 5032026300 | |||
| 3 | - Pin | 0108133000 | |||
| 4 | - Circlip | 0335214600 | |||
| 5 | - Bushing | 0500314400 | * | M10328 | |
| 6 | - Pinion | 5032026400 | |||
| 7 | - Key | 0337255700 | |||
| 8 | - Key | 0337255000 | |||
| 9 | - Bushing | 5032014900 | |||
| 10 | - Sleeve | 5032014800 | |||
| 11 | - Spring | 5032014700 | |||
| 12 | - Pin | 0108136200 | |||
| 13 | - Cover | 5032026500 | |||
| 14 | - Shaft (17 mm.) | 5032026200 | |||
| 15 | - Bushing | 5032024600 | |||
| 16 | - Housing | 5032027700 | |||
| 17 | - Shim 0.5 MM | 5032025700 | |||
| 18 | - Shim 0.2 MM | 5032025800 | |||
| 19 | - Shim 0.1 MM | 5032025900 | |||
| 20 | - Circlip | 0335212700 | |||
| 21 | - Circlip | 0335114600 | |||
| 22 | - O Ring | 0663613500 | |||
| 23 | - Bushing with Valve | 5032014680 | |||
| 24 | -- Bushing (Not Delivered Separately) | - | |||
| 25 | -- Valve (Not Delivered Separately) | - | |||
| 26 | - Cover | 5032024500 | * | M10349 | |
| 27 | - Screw | 0147124600 | |||
| 28 | - Spring Washer | 0333211900 | |||
| 29 | - Shim 0.1 MM | 5032025200 | |||
| 30 | - Shim 0.2 MM | 5032025300 | |||
| 31 | - Bushing | 0500125300 | |||
| 32 | - Shaft | 5032024800 | |||
| 33 | - Gear Left | 5032025100 | |||
| 34 | - Gear Right | 5032025400 | |||
| 35 | - Gear Right (17 mm. ) | 5032025500 | |||
| 36 | - Circlip | 0335112700 | |||
| 37 | - Pin | 0108133200 | |||
| 38 | - Spacer | 5032026000 | |||
| 39 | - Lever | 5032026900 | |||
| 40 | - Screw | 5032026100 | * | M10363 | |
| 41 | - Grease Nipple/Lubricating Nipple | 0544216200 | * | M9040 | |
| 44 | - Locking Clamp | 5032031600 | * | M10367 | |
| 45 | - Bolt | 5032027900 | * | M10368 | |
| 46 | - Plug | 0686810100 | |||
| 47 | - Gasket/Copper Gasket | 0653104100 | |||
| 48 | - Hand Support | 5032024700 | |||
| 49 | - Spring Washer | 0333213600 | |||
| 50 | - Screw | 0147139900 |
