Air End IR 9 1/2 x 7 ESV NL Air Compressor Parts
Regular price
₹0.00
Air End IR 9 1/2 x 7 ESV NL Air Compressor Parts
Regular price
₹0.00
DESCRIPTION
Assembly Air End For Ingersoll Rand - Model 9 1/2 x 7 NL
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for Assembly Air End For Ingersoll Rand - Model 9 1/2 x 7 NL from India.

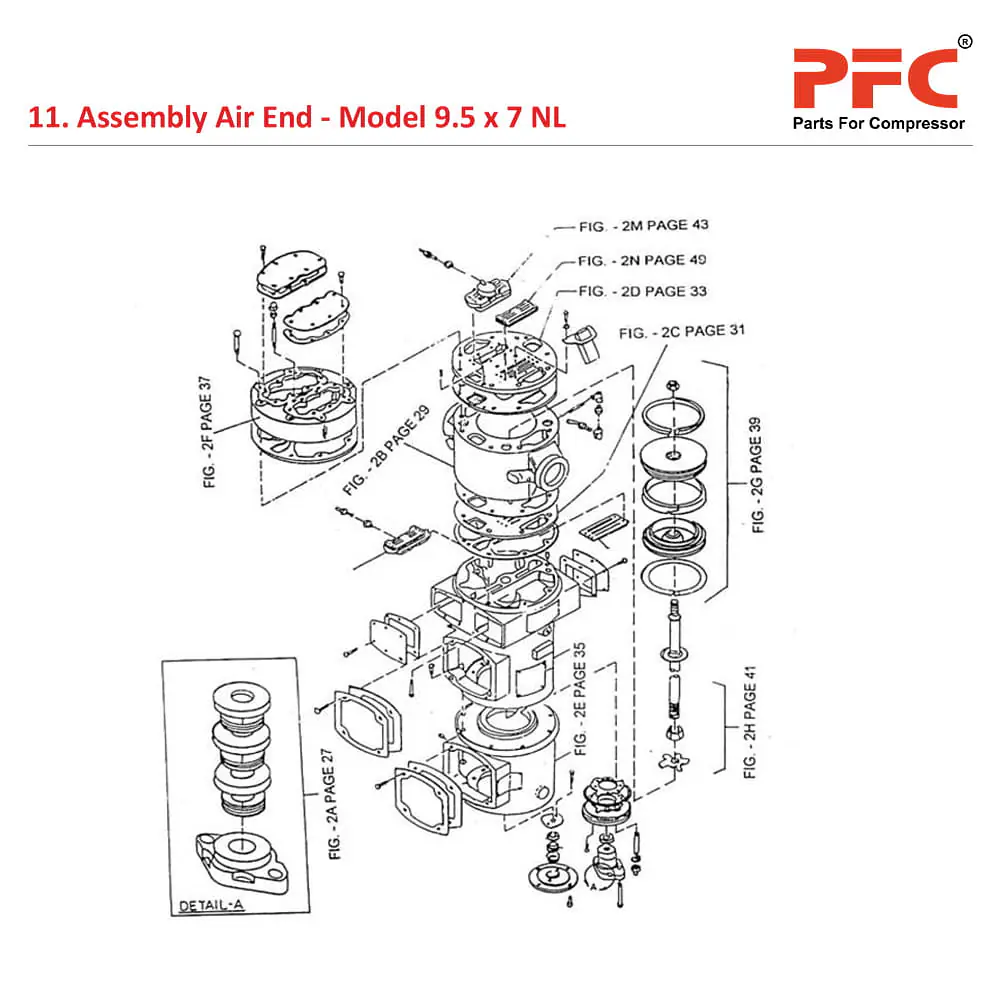

ASSEMBLY AIR END
| S.No | Description | Ref Part Nos | Qty |
| 2A | Assembly Packing Metalic | 70223177 | 1 |
| 2B | Assembly Cylinder | 70262506 | 1 |
| 2C | Assembly Plate Port Frame End | 70223250 | 1 |
| 2D | Assembly Plate Port Outer End | 70223268 | 1 |
| 2E | Assembly Head Frm & Dist. Pc | 70430392 | 1 |
| 2F | Assembly Head Outer | 70223284 | 1 |
| 2G | Assembly Piston | 70262951 | 1 |
| 2H | Assembly Rod Piston | 70223219 | 1 |
| 2M | Assembly Valve Inlet & Unloader | 31201965 | 2 |
| 2N | Assembly Valve Discharge | 37104031 | 2 |
| 2P | Assembly Stop Oil Plate | 70325246 | 1 |
