Assembly Airhead / Valve HP 32226318 Replacement
Regular price
₹0.00
Assembly Airhead / Valve HP 32226318 Replacement
Regular price
₹0.00
DESCRIPTION
Assembly Airhead / Valve High Pressure 32226318 Replacement
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts - Assembly, Airhead/Valve - High Pressure 32226318 for Ingersoll Rand Air Compressor - Type-30 from India

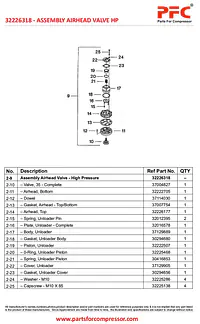

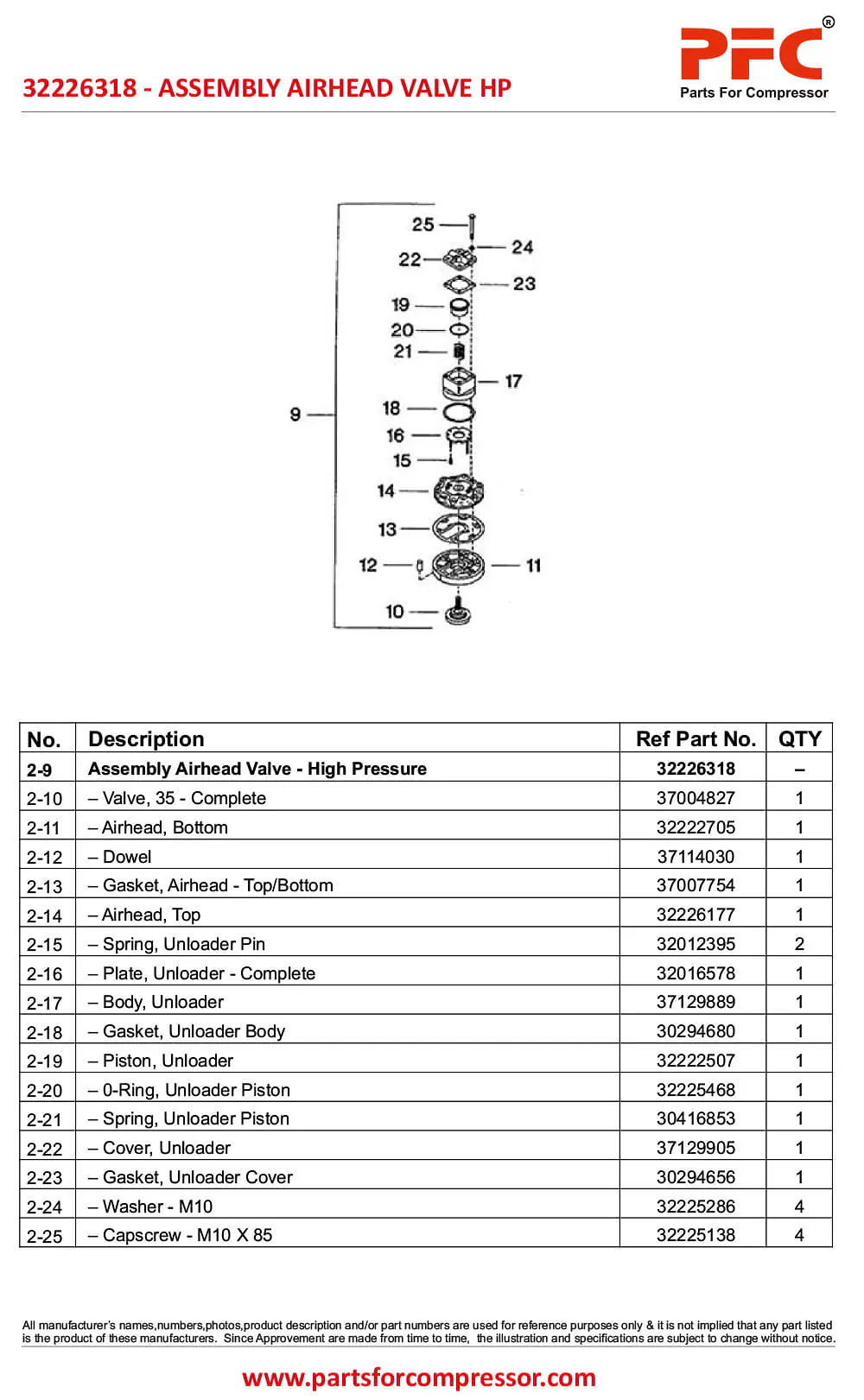

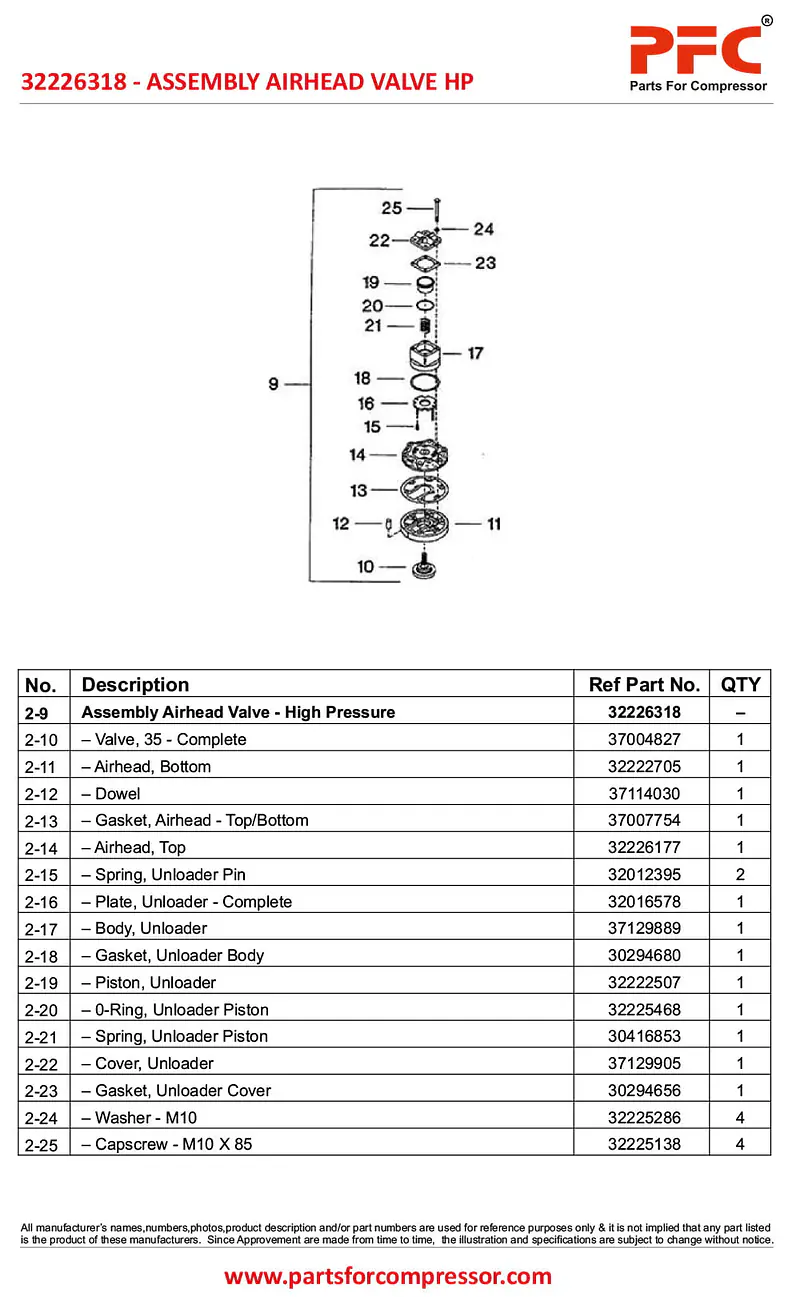

32226318 - ASSEMBLY AIRHEAD VALVE HP
| No. | Description | Ref Part No. | QTY |
| 2-9 | Assembly Airhead Valve - High Pressure | 32226318 | – |
| 2-10 | – Valve, 35 - Complete | 37004827 | 1 |
| 2-11 | – Airhead, Bottom | 32222705 | 1 |
| 2-12 | – Dowel | 37114030 | 1 |
| 2-13 | – Gasket, Airhead - Top/Bottom | 37007754 | 1 |
| 2-14 | – Airhead, Top | 32226177 | 1 |
| 2-15 | – Spring, Unloader Pin | 32012395 | 2 |
| 2-16 | – Plate, Unloader - Complete | 32016578 | 1 |
| 2-17 | – Body, Unloader | 37129889 | 1 |
| 2-18 | – Gasket, Unloader Body | 30294680 | 1 |
| 2-19 | – Piston, Unloader | 32222507 | 1 |
| 2-20 | – 0-Ring, Unloader Piston | 32225468 | 1 |
| 2-21 | – Spring, Unloader Piston | 30416853 | 1 |
| 2-22 | – Cover, Unloader | 37129905 | 1 |
| 2-23 | – Gasket, Unloader Cover | 30294656 | 1 |
| 2-24 | – Washer - M10 | 32225286 | 4 |
| 2-25 | – Capscrew - M10 X 85 | 32225138 | 4 |
